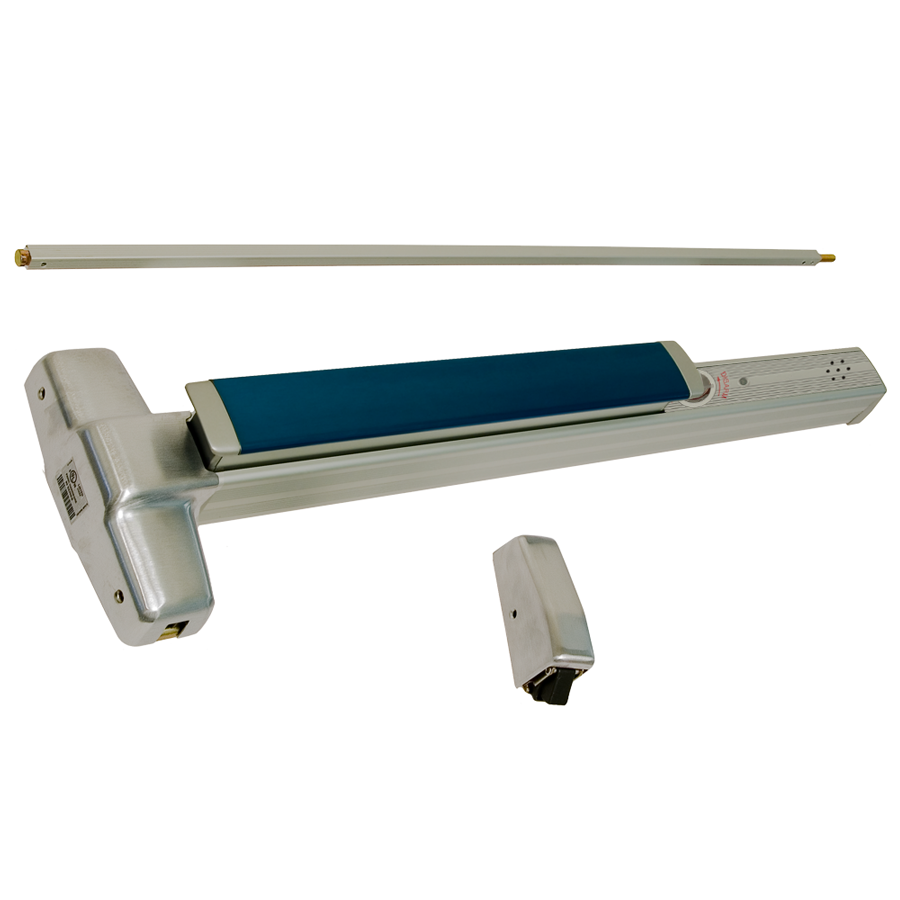

Von Duprin RX-9927EO-F-626-36-LBR-ALK Alarmed Fire-Rated RX Exit Device, Surface Vertical Rod, 36"x84", Satin Chrome

Von Duprin RX-9927EO-F-626-36-LBR-ALK KIT is an advanced exit device designed for enhanced security in commercial environments. This alarmed, fire-rated surface vertical rod exit device combines functionality with safety, certified to ANSI/BHMA A156.3 2014, Grade 1, and UL listed for fire exit hardware. With a sleek satin chrome finish, it fits doors measuring 36 inches by 84 inches, ensuring a professional appearance. The RX-9927EO features a request to exit switch and ships as an exit-only device with no outside trim, allowing for quick and easy egress while maintaining security. Its deadlocking anti-friction latch bolts provide reliable locking performance, while the smooth mechanism case ensures durability under high-traffic conditions. This device is designed to accommodate various door sizes, featuring vertical rods made from robust ½-inch square tubing, which are suitable for doors up to 7 feet tall. Ideal for panic and emergency exit situations, the RX-9927EO can be paired with optional vertical rod and latch guards to protect against damage from passing carts or gurneys. The device also offers multiple electrified features, including an alarm exit kit, making it an excellent choice for facilities requiring stringent safety measures. Upgrade your security with the Von Duprin RX-9927EO-F-626-36-LBR-ALK KIT for unparalleled protection and ease of use.

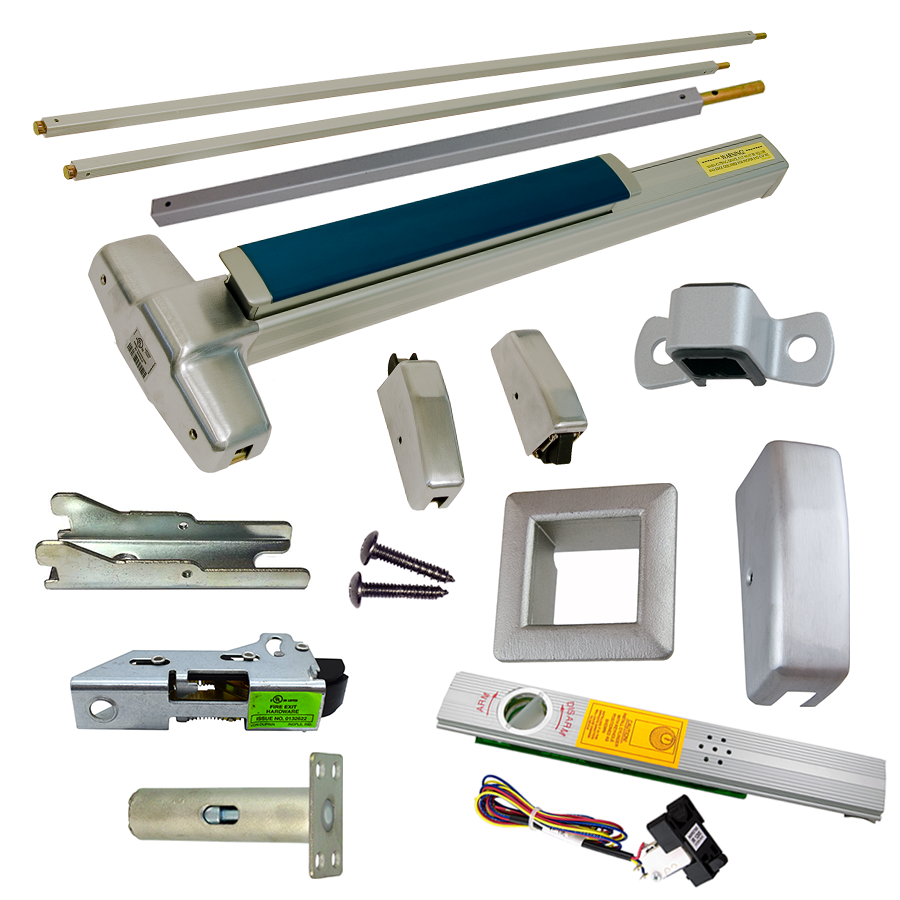

KIT - Alarmed, Fire-Rated (No Dogging), RX (Request to Exit Switch), SVR (Surface Vertical Rod) Exit Device, Exit Device Only No Trim, Less Bottom Rods, 36in x 84in, Grade 1, 626/US26D Satin Chrome

9827-F/9927-F Fire exit surface mounted vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 9827-F device has a smooth mechanism case and the 9927-F device has a grooved case. The surface vertical rod device is non-handed except when the following device options are used: SS (signal switch), and WS (tornado/hurricane). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors. Rod and latch guards can be used on hollow metal or tin clad composite fire doors.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2’ - 2’ (610 mm) Door size.
• 3’ - 2’ 4" to 3’ (711mm to 914mm) Door size.
• 4’ - 2’ 10" to 4’ (864mm to 1219mm) Door size.
• Device Centerline from Finished Floor: 39-5⁄8" (1006 mm).
• Center Case: 8" x 2-3⁄4" x 2-3⁄8" (203mm x 70mm x 60mm).
• Mechanism Case: 2-1⁄4" x 2-1⁄4" (57mm x 57mm).
• Projection:
• Push bar neutral – 3-13⁄16" (97mm).
• Push bar depressed – 3-1⁄16" (78mm).
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw.
• Door Undercut: 1⁄4" (7mm) recommended.
• Top and Bottom Latch Case: 4-1⁄2" x 2-1⁄8" x 1-1⁄2" (114mm x 54mm x 38mm).
• Vertical Rods:
• 1⁄2" square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16" (887mm).
• Bottom rod length: 31-1⁄2" (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
• Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4" (44mm) to 2-1⁄4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX :Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• WS: Tornado and hurricane tested
• Dogging Options: No mechanical dogging; QEL options available
• Strikes:
• Top – 299F –(499F LBR) Dull black
• Bottom – 304L – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 625 - Bright chrome
• 626/626AM - Satin chrome (antimicrobial)
• 628 - Aluminum, anodized
• 710 - Dark brown, anodized
• 711 - Flat black
• 643E - Aged bronze
