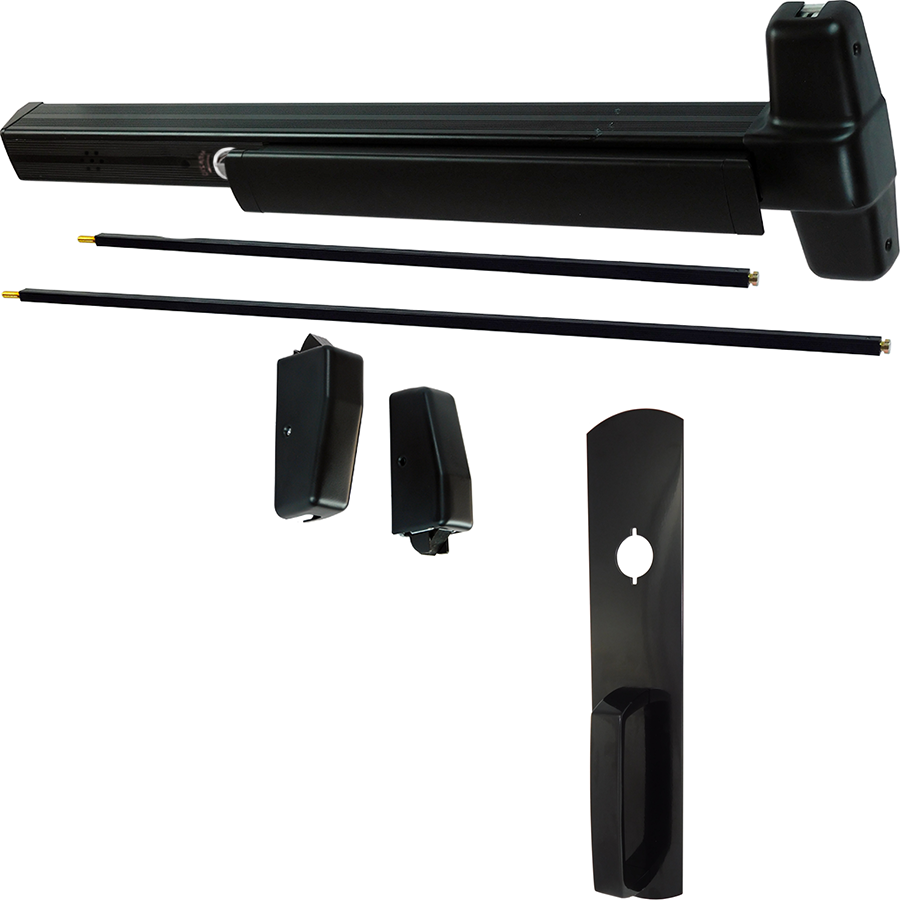

Von Duprin RX-9927NL-711-36-ALK Alarmed RX Exit Device, 990NL Nightlatch Trim, 36"x84", Grade 1, Black

Von Duprin RX-9927NL-711-36-ALK KIT offers robust security and functionality, combining an alarmed exit device with a request to exit switch and night latch trim. Designed for both single and double doors, this surface-mounted vertical rod device is UL listed for panic exit hardware and certified to ANSI/BHMA A156.3 Grade 1 standards, ensuring reliability in high-traffic environments. The RX-9927NL features a deadlocking anti-friction latch bolt with a 5/8" throw, enhancing safety by preventing unwanted entry. Its versatile design accommodates doors measuring 36 inches wide and can be installed on doors from 2 to 4 feet in height. The device's centerline sits at 39-5/8" from the finished floor, and vertical rods made of 1/2" square tubing ensure durability. Additional options include electrified choices such as the RX (Request to Exit) and an alarm exit kit (ALK), allowing for tailored security solutions. The unit is finished in flat black (711), providing a sleek aesthetic that complements various architectural styles. With easy installation and enhanced protection, the Von Duprin RX-9927NL-711-36-ALK KIT is ideal for commercial spaces requiring dependable exit solutions.

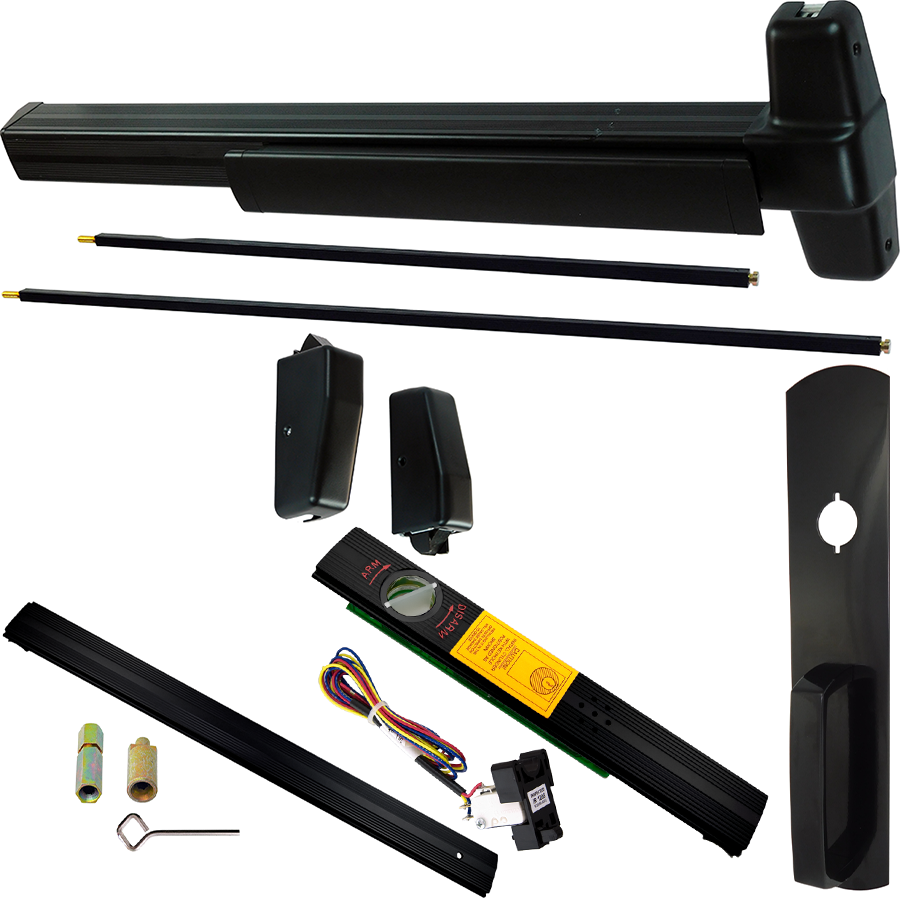

KIT - Alarmed, RX (Request to Exit Switch), SVR (Surface Vertical Rod) Exit Device, 990NL Nightlatch Trim, 36in x 84in, Grade 1, 711 Black

9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case. The surface vertical rod device is non-handed except when the following device options are used: SD (special dogging), SS (signal switch) or WS (tornado/hurricane). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2’ - 2’ (610 mm) Door size.
• 3’ - 2’ 4" to 3’ (711mm to 914mm) Door size.
• 4’ - 2’ 10" to 4’ (864mm to 1219mm) Door size.
• Device Centerline from Finished Floor: 39-5⁄8" (1006 mm).
• Center Case: 8" x 2-3⁄4" x 2-3⁄8" (203mm x 70mm x 60mm).
• Mechanism Case: 2-1⁄4" x 2-1⁄4" (57mm x 57mm).
• Projection:
• Push bar neutral – 3-13⁄16" (97mm).
• Push bar depressed – 3-1⁄16" (78mm).
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw.
• Door Undercut: 1⁄4" (7mm) recommended.
• Top and Bottom Latch Case: 4-1⁄2" x 2-1⁄8" x 1-1⁄2" (114mm x 54mm x 38mm).
• Vertical Rods:
• 1⁄2" square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16" (887mm).
• Bottom rod length: 31-1⁄2" (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
• Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4" (44mm) to 2-1⁄4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX :Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• WS: Tornado and hurricane tested
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes:
• Top – 299 – Dull black
• Bottom – 248L4 and 304L – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4" mortise cylinder

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 625 - Bright chrome
• 626/626AM - Satin chrome (antimicrobial)
• 628 - Aluminum, anodized
• 710 - Dark brown, anodized
• 711 - Flat black
• 643E - Aged bronze
