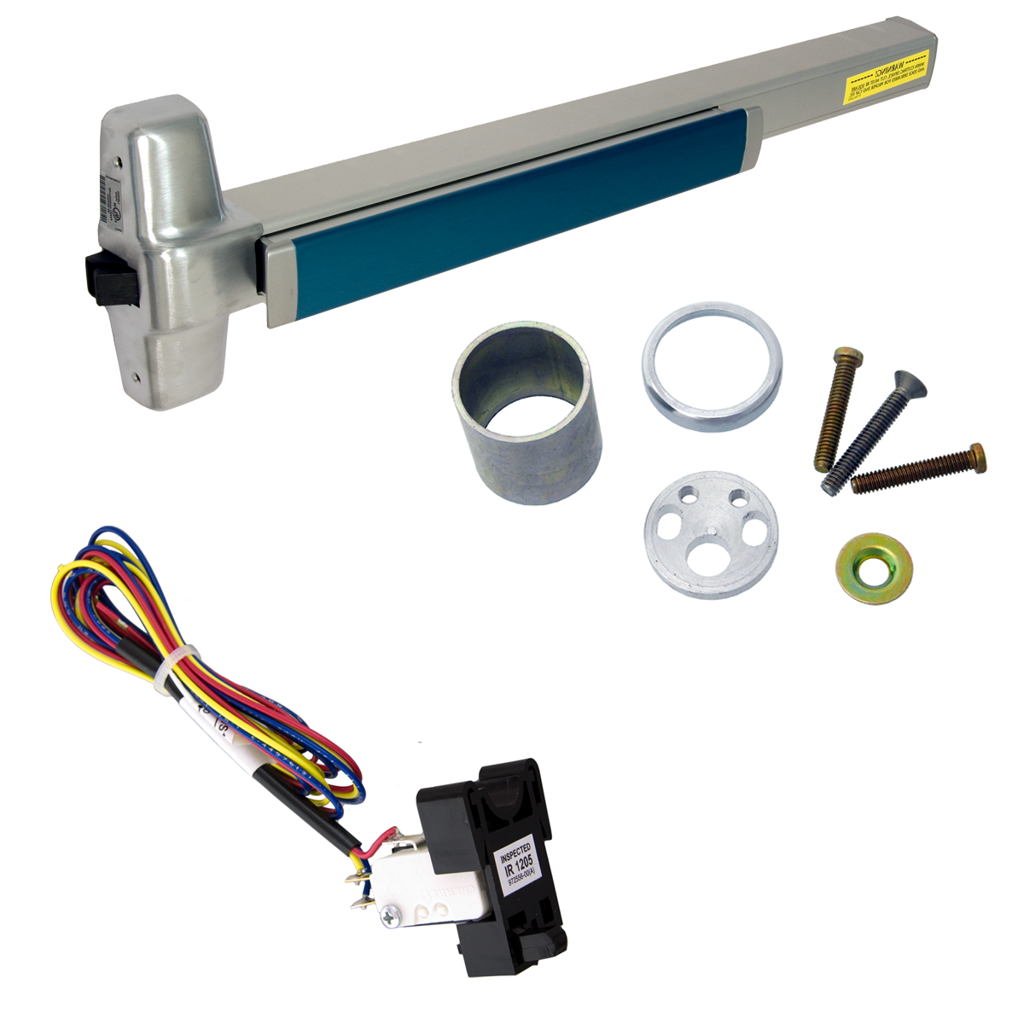

Von Duprin RX-99NL-OP-628-48 KIT - RX Rim Exit Device Nightlatch Cylinder Assembly, 48in, Grade 1Von Duprin RX-99NL-OP-628-48 KIT combines advanced security with user-friendly design, making it an ideal choice for high-traffic institutional settings such as schools, hospitals, and government facilities. This rim exit device features a robust 48-inch length, ensuring effective operation on both single and double doors. Certified to ANSI/BHMA A156.3 Grade 1 standards, it guarantees reliable performance and durability. The RX-99NL-OP includes a Request to Exit switch, enhancing safety during emergencies by allowing for quick egress. The night latch mechanism, operable via key retraction, adds an extra layer of security. Designed for ease of use, the hex key dogging function allows for simple maintenance, while the modular design offers flexibility for future upgrades as technology evolves. Construction from anodized aluminum in a sleek 628 finish ensures longevity and aesthetic appeal. Additionally, the device supports a variety of field-configurable options and retrofitting kits, adapting to your facility's changing needs. With features like a deadlocking latch bolt and extensive serviceable parts, the RX-99NL-OP is poised to deliver exceptional performance and security, making it a reliable choice for any access control solution.
KIT - RX (Request to Exit Switch), Rim Exit Device, 110MD NL-OP Nightlatch Cylinder Assembly Trim, Optional Pull, 48in, Hex Dogging, Grade 1, 628/US28 Anodized Aluminum
Notice: The info below is not item specific.
98 and 99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. The 98 device has a smooth mechanism case and the 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch). Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).
Features:
- Built-in flexibility with a universal center case that provides migration path to new technology
- Highly modular allowing product upgrades to meet customer’s changing needs
- Easy maintenance with extensive serviceable parts options
- Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options and retrofit kits available
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
- Device Lengths:
- 3' - 2'4" to 3' (711mm to 914 mm) Door size
- 4' - 2'10" to 4' (864 mm to 1219 mm) Door size
- Device Centerline from Finished Floor:
- 39-13/16" (1011 mm)
- 39-11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3⁄4" x 2 3⁄8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
- Projection:
- Push bar neutral – 3-13/16" (97 mm)
- Push bar depressed – 3-1/16" (78 mm)
- Latch Bolt: Deadlocking, 3⁄4" (19mm) throw
- Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors. (optional 425 SNB available)
- Electrical Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX: Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- AX: Accessible device
- GBK: Glass bead kit
- PN: Pneumatic latch retraction
- QM: Quiet mechanical
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- XP: Extra protection
- Dogging Feature: Hex key dogging standard
- Dogging Options:
- CD: Cylinder dogging
- CD-CX: Chexit cylinder dogging
- CDSI: Cylinder dogging with security indicator
- HDSI: Hex dogging with security indicator
- SD: Special center case dogging
- LD: Less dogging
- DI: Dogging indicator
- CI: Cylinder dogging indicator
- Strikes: 299 – Dull black
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4" mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4" mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4" mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4" mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4" mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4" mortise cylinder
Finishes:
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 625 - Bright chrome
- 626/626AM - Satin chrome
- 628 - Aluminum, anodized
- 710 - Duranodic dark bronze
- 711 - Matte black/anodized
- 643e - Aged bronze
Attributes
Access Type: Request to Exit
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Certifications: A156.3, ANSI, ANSI/UL 305, BHMA
Device Width: 48"
Door And Lock Sensor: Pushbar Monitor
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Rim Exit
Finish Code: 626, 628
Finish Color: Aluminum, Brushed Aluminum, Brushed Chrome, Satin Aluminum, Satin Chrome
Function: Night Latch, Opt. Pull
Grade: Grade 1
Manufacturer: Von Duprin
Series: 98/99
Strike Type: Standard
Trim Option: Less Trim
