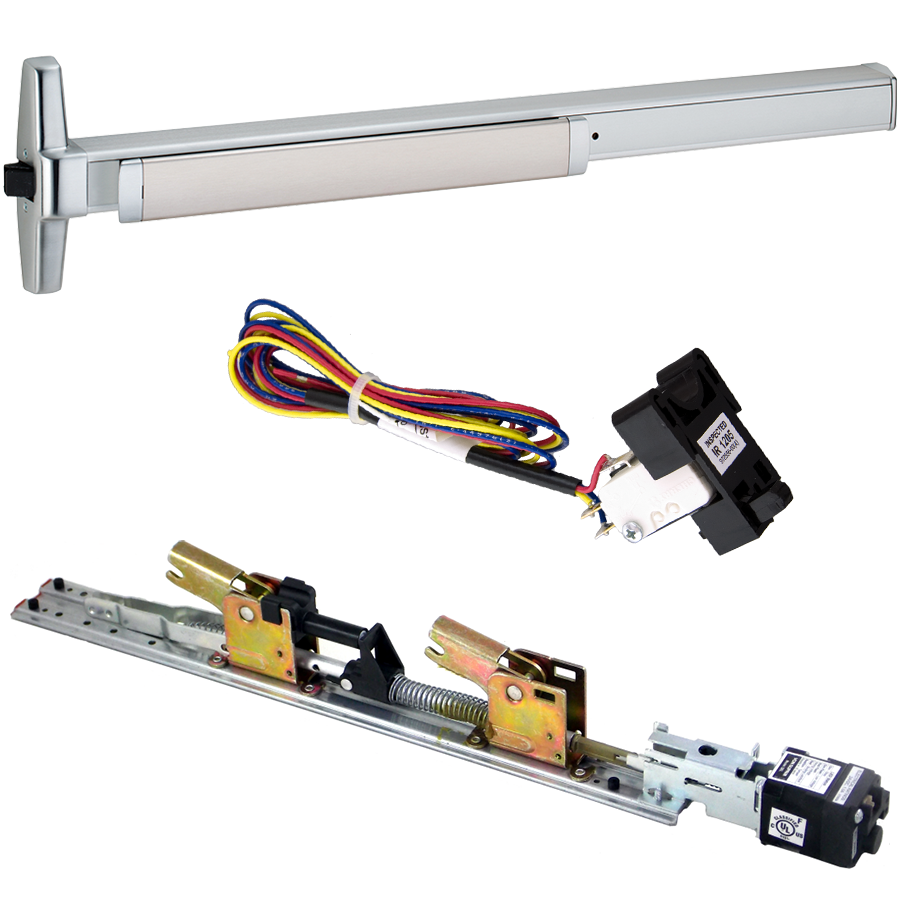

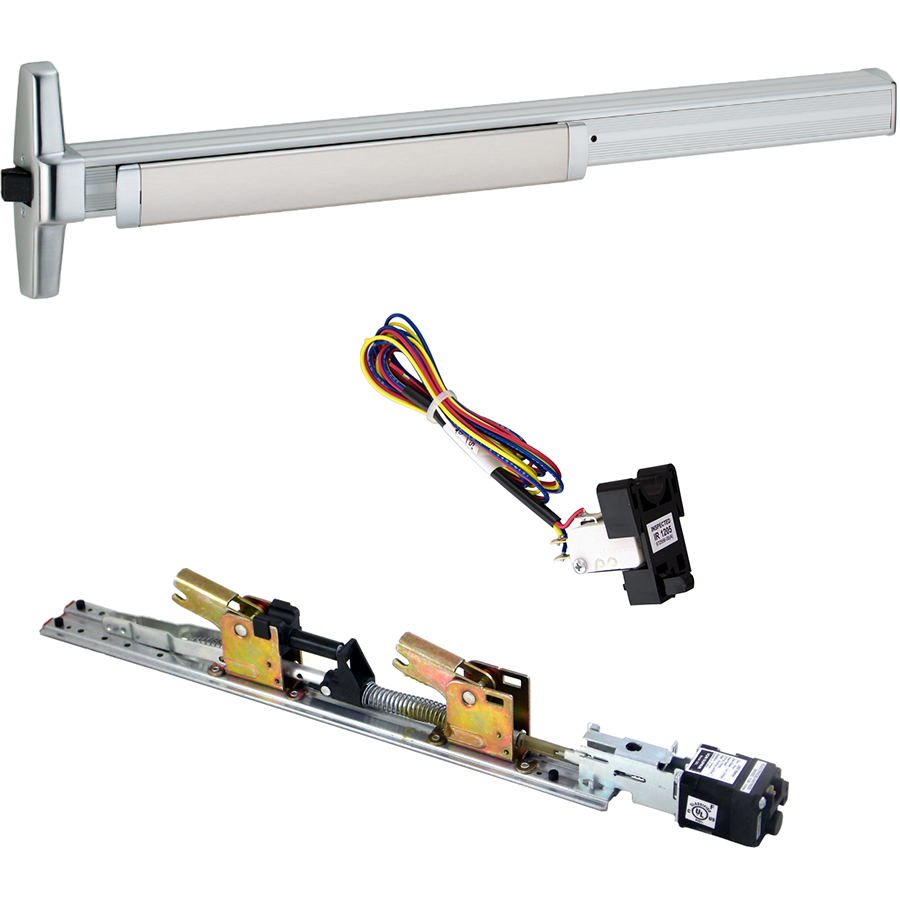

Von Duprin RX-QELA-33A-EO-626-36 KIT - RX Request to Exit Switch, QEL Narrow Stile Rim Exit Device, 36in, Satin ChromeVon Duprin RX-QELA-33A-EO-626-36 KIT is a robust narrow stile rim exit device designed for high-traffic environments. This exit-only device features a quiet electric latch retraction (QEL) for seamless operation, ensuring a smooth exit without disruptive noise-ideal for settings such as educational institutions, hospitals, and government buildings. Engineered for durability, the RX-QELA-33A boasts a Grade 1 rating, making it suitable for extensive use and abuse in institutional applications. It offers a modular design that allows easy upgrades to keep pace with evolving technology and facility requirements. With an exit device width of 36 inches, it fits doors ranging from 2' 4" to 4' in size, accommodating a variety of architectural designs. The device's centerline is positioned at 39-13/16" from the finished floor, ensuring compliance with accessibility standards. It features a deadlocking latch bolt with a 3/4" throw, enhancing security while providing reliable performance. The satin chrome finish (626) not only adds an elegant touch but also ensures corrosion resistance for long-lasting use. Certified to ANSI standards, the Von Duprin RX-QELA-33A-EO-626-36 KIT is a solid choice for those seeking a dependable exit solution that prioritizes safety and functionality.
KIT - RX (Request to Exit Switch), QEL (Quiet Electric Latch Retraction), Narrow Stile Rim Exit Device, Exit Only No Trim, 36in, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The 33A/35A series is a narrow stile push pad device popular for its vast application coverage. With many field configurable and upgradeable solutions available, it’s easy to enhance the functionality of an existing device. Mechanical and electronic options include quiet electric latch retraction, delayed and controlled egress, concealed vertical cables and security indicators. It’s one way Von Duprin protects its customers’ investments long into the future. The 33A/35A Series devices are narrow stile heavy-duty push pads commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others. Architectural design elements differ slightly between the 33A and the 35A. The 35A series device has a smooth mechanism case, while the 33A series has a grooved mechanism case.
Features:
- Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options and retrofit kits available
Specifications:
- Device Lengths:
- 3' - 2' 4" to 3' (711mm to 914 mm) Door size
- 4' - 2'10" to 4' (864 mm to 1219 mm) Door size
- Device Centerline From Finished Floor:
- 39-13/16" (1011 mm)
- 39-11/16" (1008 mm) with mullion
- Center Case Dimensions: 8-3/16" x 1-9/16" x 2-13/32" (208mm x 40mm x 62mm)
- Mechanism Case Dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
- Projection:
- Push bar Neutral – 3-13/16" (97 mm)
- Push bar Depressed – 3-1/16" (78 mm)
- Latch Bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB):
- Includes 1-3/4" (44mm) – 2-1/4" (57mm) wood & metal doors
- #425 SNB furnished standard for end case
- #325 SNB furnished standard for EO (exit only device)
- Electrified Options:
- ALK: Alarm exit kit
- CX: Chexit delayed exit
- ESL: Emergency secure lockdown
- LX: Latch bolt monitor switch
- LX-RX: Request to exit / latch bolt monitoring
- QEL: Quiet electric latch retraction
- RX: Request to exit
- WP-RX: Request to exit, waterproof option
- RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX
- SS: Signal switch
- CON: Allegion Connect
- Mechanical Options:
- AX: Accessible device
- GBK: Glass bead kit
- PN: Pneumatic
- QM: Quiet mechanical
- SEC: Security screws
- SG: Safety glow
- SNB: Sex bolts
- WH: Weep holes
- Dogging Feature: Hex key dogging standard
- Dogging Options:
- CD: Cylinder dogging
- CDSI: Cylinder dogging with security indicator
- HDSI: Hex dogging with security indicator
- LD: Less dogging
- Strikes:
- 1439: Roller, dull black. Ships standard
- 299: Strike, needs to be specified for hollow metal frames
Trim:
- EO: No Outside Trim, Exit Only
- DT: Dummy Trim
- Pull when dogged (not recommendedfor fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim cylinder
- NL-OP: Night Latch, Operational Pull
- Key retracts latchbolt, pull required
- K/L: Lever/Knob
- Key locks and unlocks
- Rim and 1-1/4" mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- L-BE/K-BE: Lever/Knob, Blank Escutcheon
- Always operable (no cylinder)
- TP: Thumbpiece
- Key locks and unlocks
- 1-1/4" mortise cylinder
- TL-BE: - Turn Lever, Blank Escutcheon
- Blank escutcheon always operable (no cylinder)
- TL: Turn Lever
- Key locks and unlocks (use with DT trim)
- 1-1/4" mortise cylinder
- TP-BE: Thumbpiece, Blank Escutcheon
- Blank escutcheon always operable (no cylinder, use with DT trim)
- TL-OP: Turn Lever, Optional Pull
Finishes:
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 619 - Satin nickel
- 622/711 - Matte black/matte black, anodized
- 625 - Bright chrome
- 626 - Satin chrome
- 626AM - Satin chrome, antimicrobial
- 628 - Aluminum, anodized
- 630 - Satin stainless steel
- 630AM - Satin stainless, antimicrobial
- 643e - Aged bronze
- 693 - Black, painted (not flat powder)
- 710 - Dark brown, anodized
Attributes
Access Type: Request to Exit
Alternate Codes: RX-QELA-33A-EO-626 36, RXQELA33AEO62636, VONRX-QELA-33A-EO-626-36.
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Certifications: ANSI, ANSI A156.6, ANSI/UL 10C, ANSI/UL 305, BHMA
Device Width: 36"
Dogging: HD - Hex Dogging
Door And Lock Sensor: Pushbar Monitor
Door Application: Panic Devices & Exit Alarms
Electrical Option: Electric Latch Retraction, Quiet
Exit Device Category: Rim Exit
Fasteners: Sex Bolts
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Exit Only
Grade: Grade 1
Handing: Field Reversible
Manufacturer: Von Duprin
Series: 33/35
Strike Type: Rim Strike
