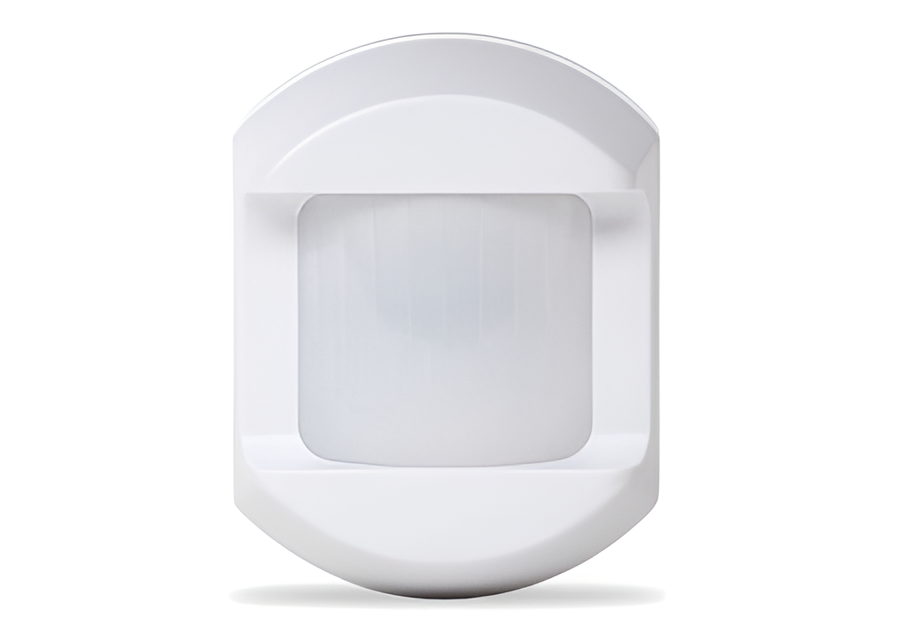

2GIG PIR1E-345 Enhanced Motion Detector

2GIG PIR1E-345 Enhanced Motion Detector offers exceptional security with its advanced encrypted passive infrared technology. This wall-mounted unit is designed to provide wide-angle motion protection, communicating seamlessly with your control panel over a reliable 345 MHz frequency. In High Sensitivity Mode, the PIR boasts an impressive detection range of 30 feet deep and 50 feet wide, ensuring comprehensive coverage for your space. One of its standout features is the pet immunity setting, capable of distinguishing between human movement and pets up to 55 lbs, minimizing false alarms. The dual-element sensor enhances detection accuracy, while a 90-degree look-down capability and a 110-degree spread ensure no corner is left unmonitored. The PIR also includes three different mounting brackets for flexible installation, making it adaptable to various environments. Designed for durability, the unit is tamper-protected and fully supervised, ensuring it remains operational at all times. It operates within a temperature range of 32°F to 120°F and has a long wireless signal range of 350 ft in open air. The 2GIG PIR1E-345 is powered by a lithium battery and is ETL listed for your peace of mind. With over one million unique ID codes, this motion detector provides enhanced security for both residential and commercial applications.

Enhanced Motion Detector

2GIG-PIR1e-345: Encrypted Passive Infrared Motion Detector is a wall-mounted unit with wide-angle motion protection. It communicates with the control panel using the 345 MHz frequency. When set to High (HI) Sensitivity Mode, the PIR has a maximum range of 30 ft deep x 50 ft wide (9.1 m x 15.2 m). The PIR’s pet-immune feature can be set to tolerate animals up 55 lbs.

Features:

• Encrypted Protocol for Enhanced Security.
• Dual element sensor with 30 ft. by 50 ft. range.
• 33 or 55 lb. pet immune.
• 90-degree look down.
• 110° spread.
• 3 different mounting brackets.
• Tamper protected.
• Fully supervised.
• Lithium battery.
• ETL listed.

Specifications:

• Wireless Signal Range: 350 ft., open air, with Wireless Control Panel.
• Code Outputs: Alarm, Alarm Restore, Tamper, Tamper Restore, Supervisory, Low Battery.
• Transmitter Frequency: 345.000 MHz (crystal controlled).
• Unique ID Codes: Over one (1) million different code combinations.
• Supervisory Interval: 70 minutes.
• Sensor Type: Quad element.
• Pet Immunity Selectable: 33 lb (15 kg) or 55 lb (25 kg; default).
• Sensitivity Jumper Selectable: High or Low (default).
• Suggested Mounting Height: 7.5 ft. (2.3 m).
• Sensor Range: 30 ft. (9.1 m) x 50 ft. (15.2 m).
• Maximum Horizontal Sensing Angle: 90°.
• Dimensions (L x W x H): 3.2"(8.12cm) x 2.5"(6.35cm) x 1.9"(4.82cm).
• Weight (including battery & bracket): 3.7 oz. (104.9 g).
• Housing Material: ABS Plastic.
• Color: White.
• Operating Temperature: 32° ~ 120 F° (0° ~ 49° C).
• Relative Humidity: 5-90% Non-Condensing.
• Battery (installed): One (1) CR 123A 3V or equivalent Lithium battery.
• Certification: Anatel, ETL, FCC, IC, IFETEL, and NOM.
