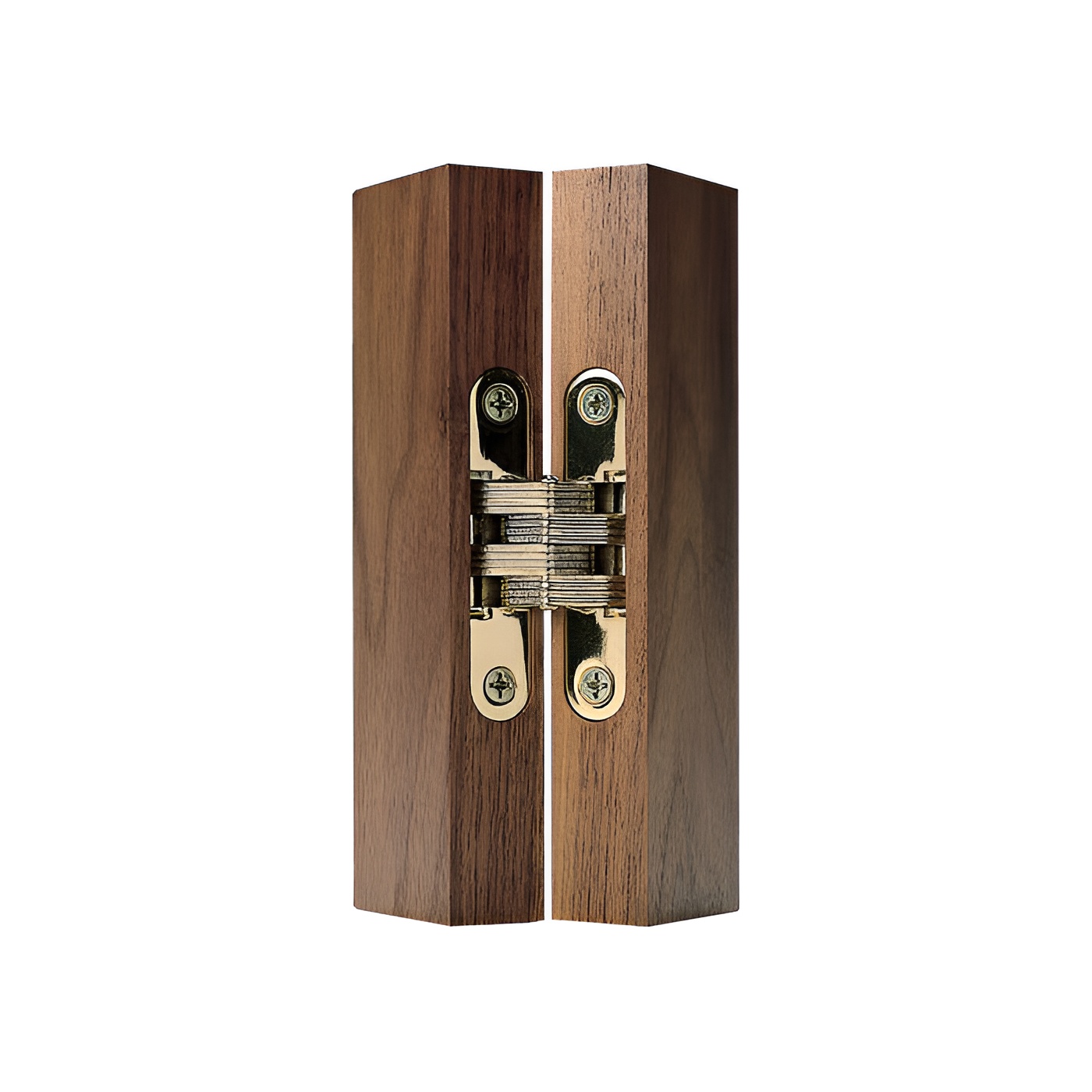

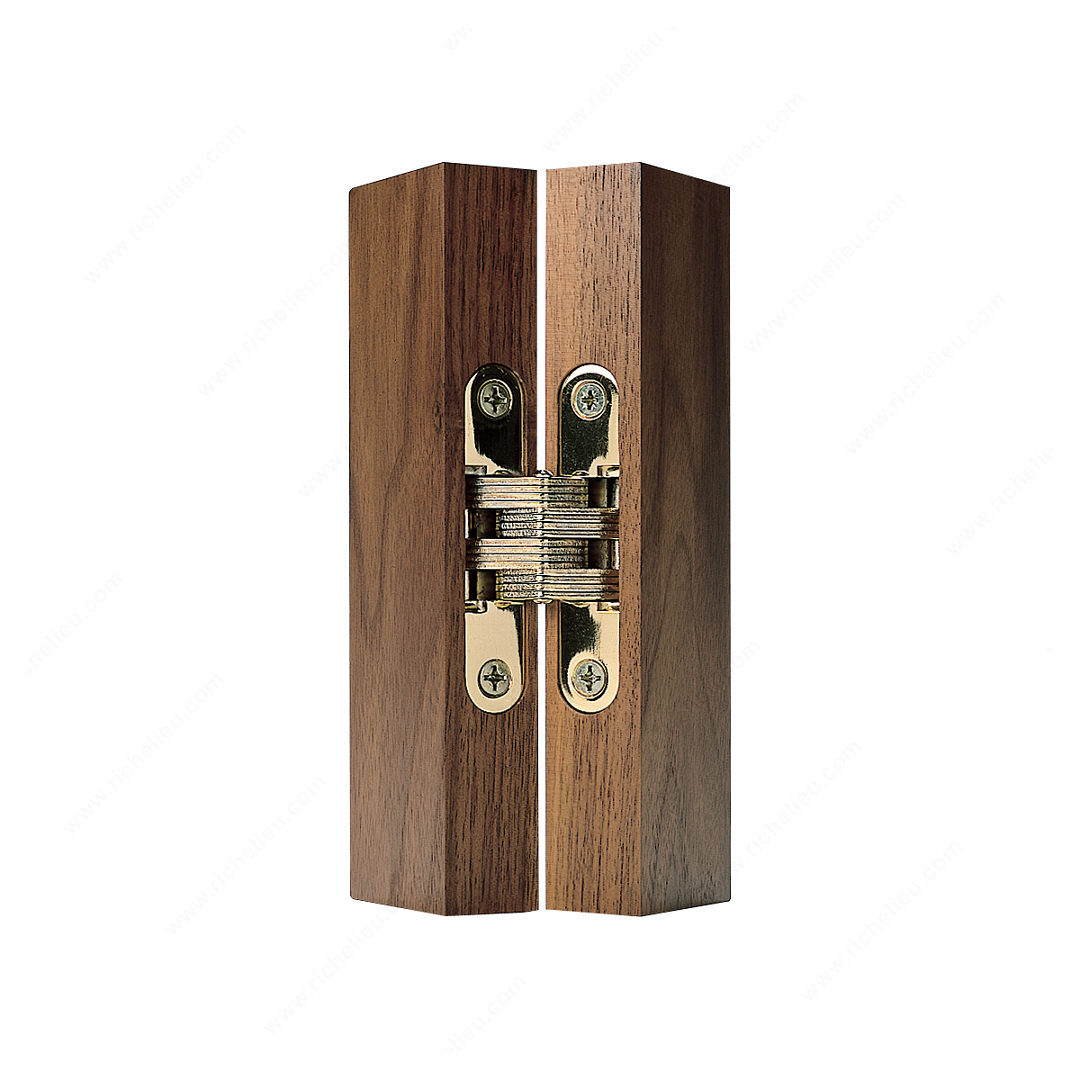

Richelieu 420100145 Concealed Steel Hinge - Model 100 offers a sleek and modern solution for your door hinge needs, combining durability with a sophisticated aesthetic. Designed for both wood and metal doors, this hinge is perfect for various applications, ensuring that it meets a wide range of requirements. With a remarkable 180° opening angle, the hinge allows for optimal accessibility, making it an ideal choice for high-traffic areas. Constructed from high-quality steel and finished in satin chrome, it not only enhances the visual appeal of your doors but also ensures long-lasting performance. The hinge features a mortise mounting type and is reversible, providing flexibility during installation. It accommodates a minimum door thickness of 1/2 inch, making it suitable for various door designs. The leaf body mortise length measures 3/8 inch, while the leaf mortise depth is 15/64 inch, ensuring a secure fit. Additionally, the product includes screws for easy installation. With a compact size of 1 inch in length and 3/8 inch in width, the Richelieu concealed hinge seamlessly integrates into your projects. Whether you're a building professional or a knowledgeable homeowner, this hinge delivers both functionality and style to enhance your space.

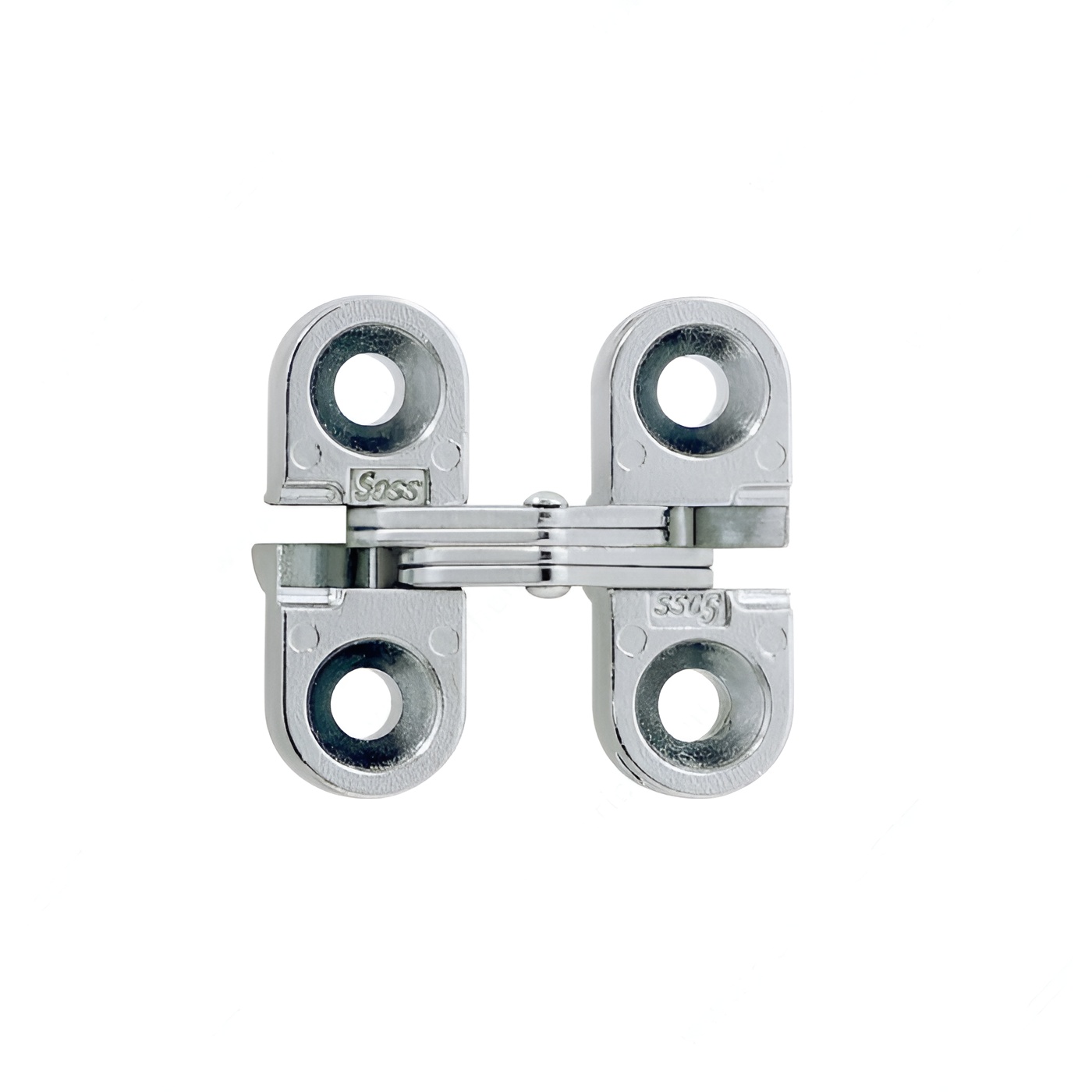

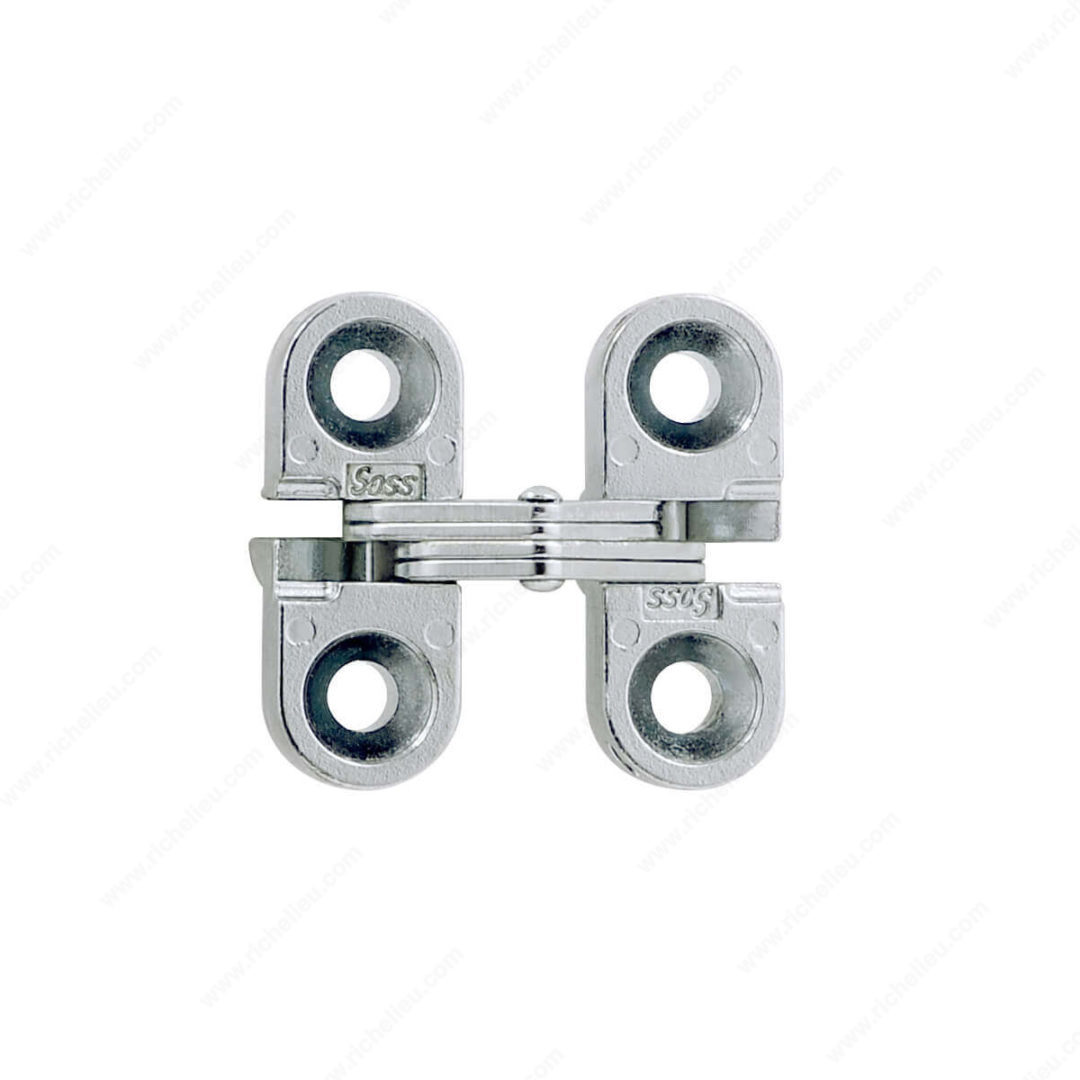

Concealed Steel Hinge - Model 100
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 5/8 in

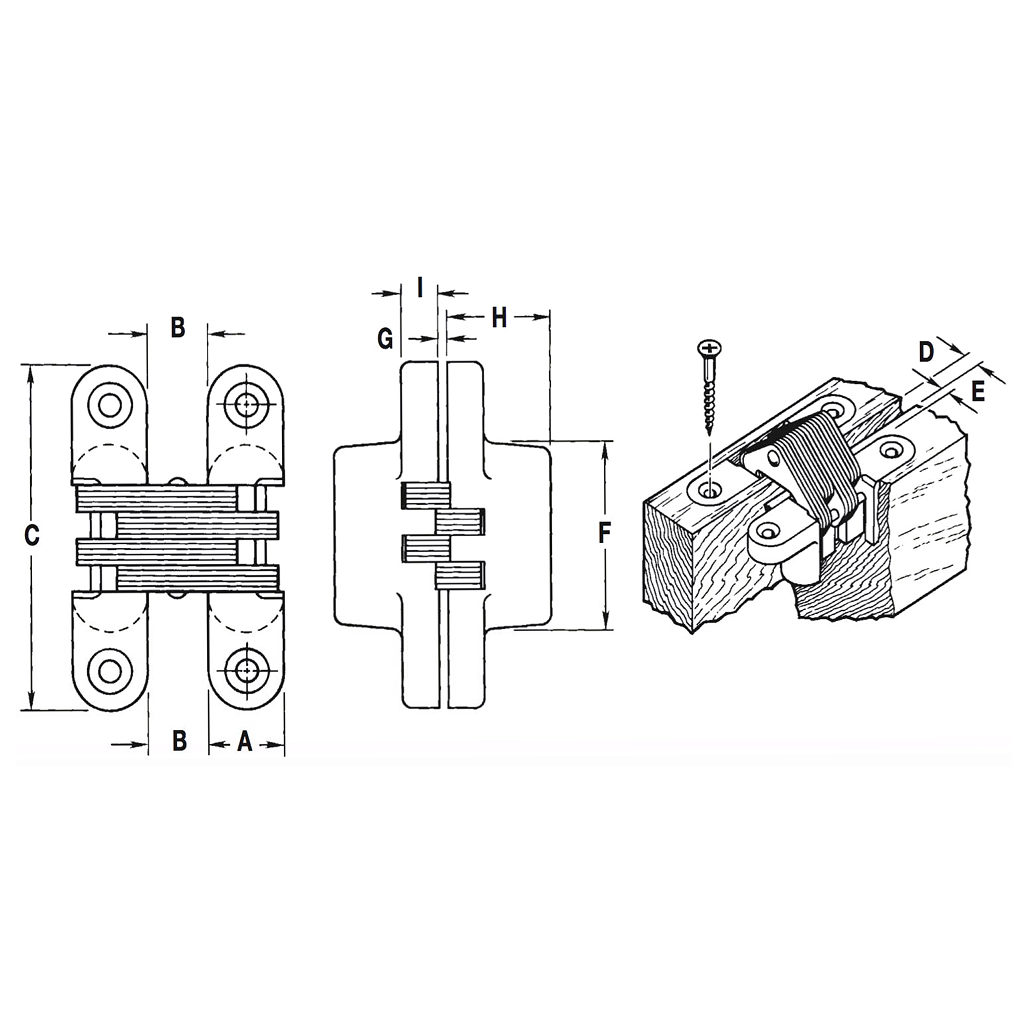

Dimension A: 3/8 in
Dimension B: 9/32 in
Dimension C: 1 in
Dimension D: 3/32 in
Dimension E: 3/32 in
Dimension F: 3/8 in
Dimension G: 1/32 in
Dimension H: 15/32 in
Dimension I: 15/64 in
Door/ Jamb Gap: 3/32 in
Door/ Jamb Gap in Closed Position: 1/32 in
Door/ Jamb Inset: 3/32 in
Finish: Satin Chrome
Fixing Type: Screw-On
For Hinge #: 100
Handedness: Reversible
Height: 15/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 3/8 in
Leaf Gap: 9/32 in
Leaf Mortise Depth: 15/64 in
Length: 1 in
Material: Steel
Minimum Door Thickness: 1/2 in
Mounting Type: Mortise
Product #: 420100145
Product number: 420100145
Product №: 420100145
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Unit: Pair
Unit 1: carton - 10
Unit 2: carton - 10
Width: 3/8 in
Wood Screw Sizes: #5 x 3/4" (3.5 mm x 19 mm)
