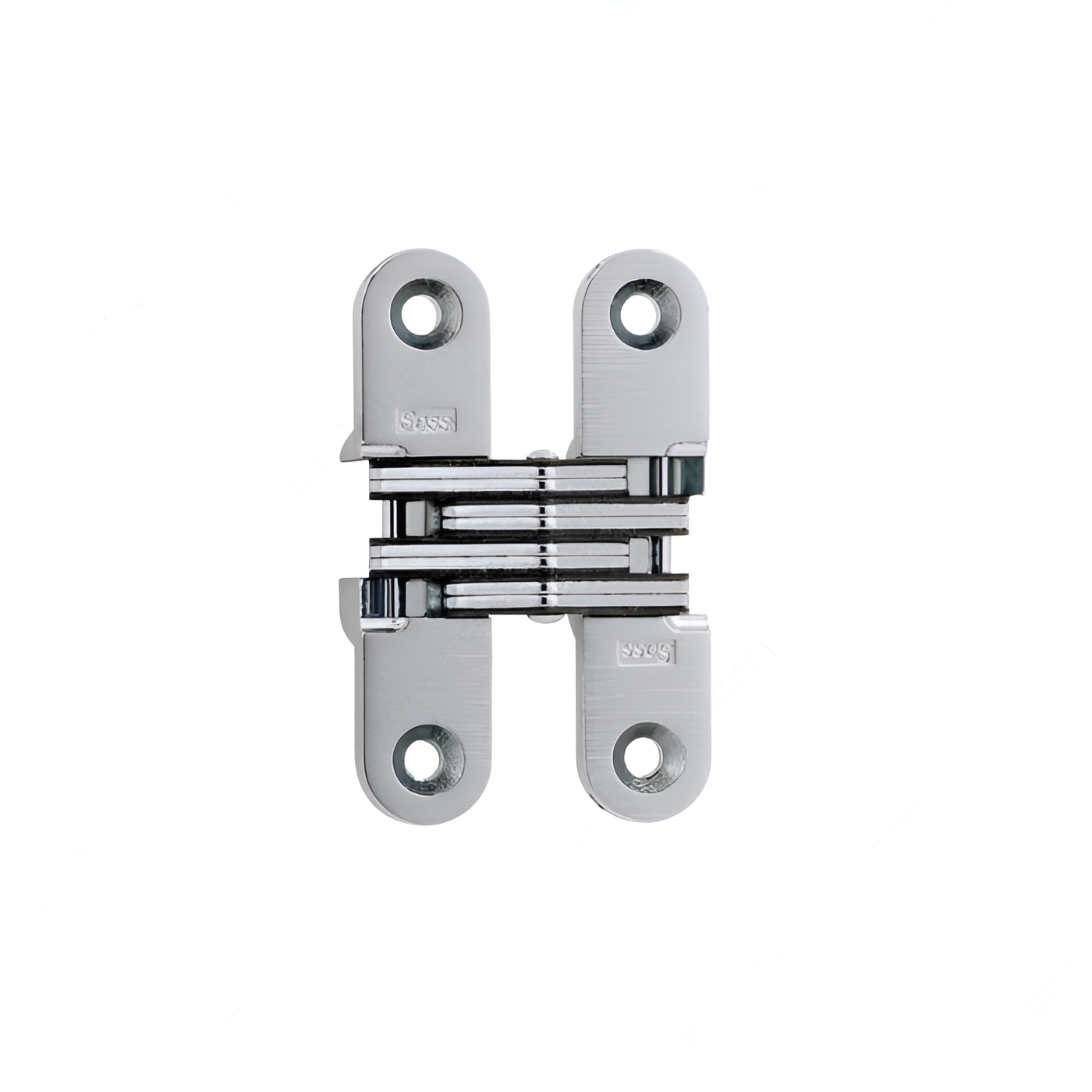

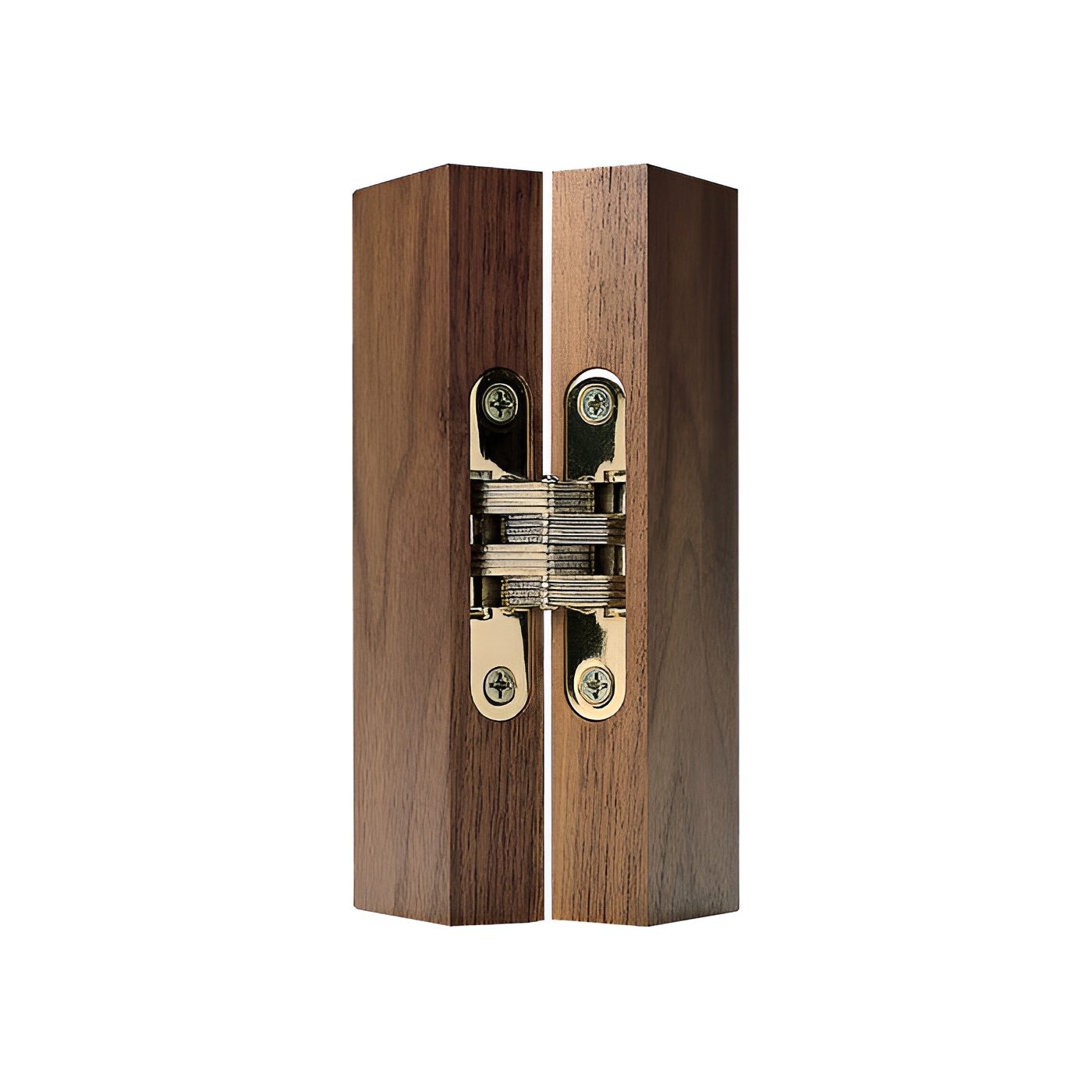

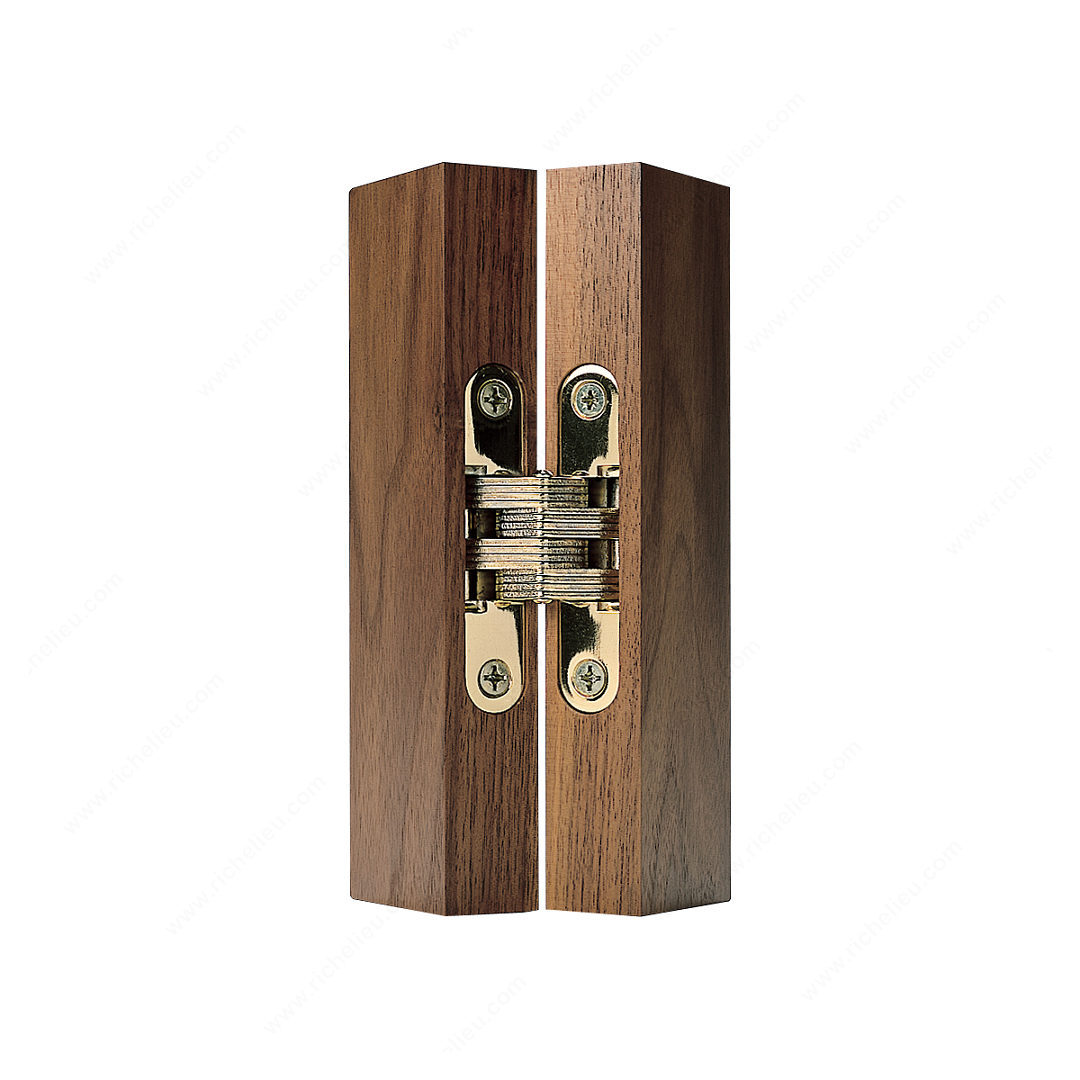

Richelieu 429208145 Concealed Steel Hinge - Model 208 offers a seamless blend of style and durability, making it an ideal choice for both wood and metal doors. Designed for easy installation, this hinge is perfect for various applications, ensuring a clean and polished look. With its satin chrome finish, it enhances the aesthetic appeal of any space while providing long-lasting performance. Featuring a 180° cabinet angle, this hinge allows for maximum door swing, facilitating easy access and movement. The reversible handedness adds versatility for different installation requirements. It has a minimum door thickness of 1 inch, making it suitable for a range of door types. The hinge's mortise mounting type ensures a secure fit, while the screw-on fixing type guarantees straightforward installation. The dimensions of the hinge include a length of 2 3/4 inches, a width of 5/8 inches, and a leaf body mortise length of 1 11/32 inches. A door/jamb gap of 9/64 inches in closed position ensures a snug fit. Compatible with hinge #208, the Richelieu concealed hinge combines functionality with a modern design, making it an excellent choice for professionals and discerning homeowners alike.
Concealed Steel Hinge - Model 208
Brand: Soss
Cabinet Angle: 180°
Center to Center (mm): 2 1/8 in
Dimension A: 5/8 in
Dimension B: 29/64 in
Dimension C: 2 3/4 in
Dimension D: 9/64 in
Dimension E: 5/32 in
Dimension F: 1 11/32 in
Dimension G: 3/64 in
Dimension H: 29/32 in
Dimension I: 9/32 in
Door/ Jamb Gap: 9/64 in
Door/ Jamb Gap (mm): 9/64 in
Door/ Jamb Gap in Closed Position: 3/64 in
Door/ Jamb Inset: 5/32 in
Door/ Jamb Inset (mm): 9/64 in
Finish: Satin Chrome
Fixing Type: Screw-On
For Hinge #: 208
Handedness: Reversible
Height: 29/32 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 1 11/32 in
Leaf Gap: 29/64 in
Leaf Mortise Depth: 9/32 in
Length: 2 3/4 in
Material: Steel
Minimum Door Thickness: 1 in
Mounting Type: Mortise
Product #: 429208145
Product number: 429208145
Product №: 429208145
Screw/ Nail: Screw/Nail (Included)
Type of Hinge: Wood or Metal
Width: 5/8 in
Wood Screw Sizes: #8 x 1-1/4" (4.2 mm x 32 mm)
