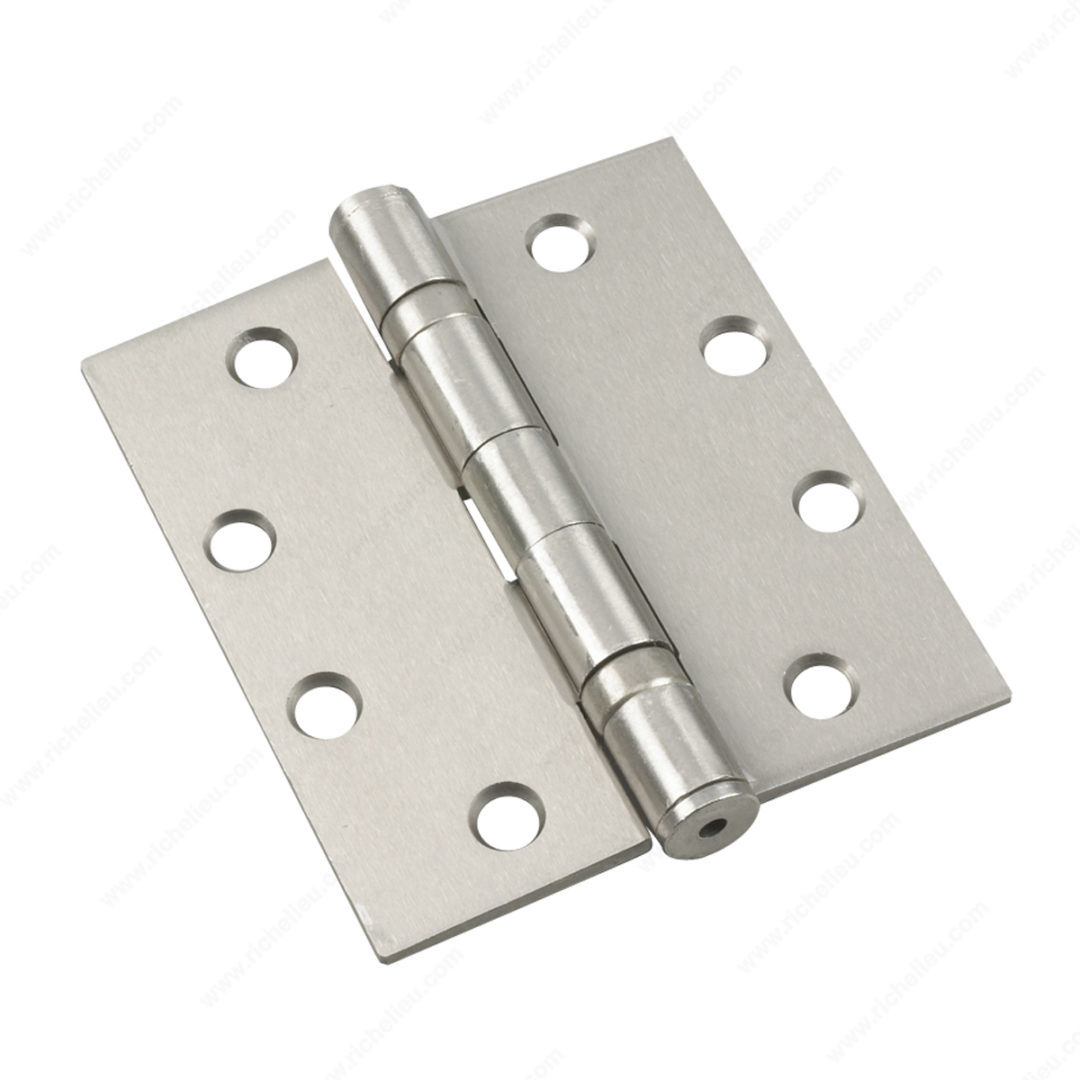

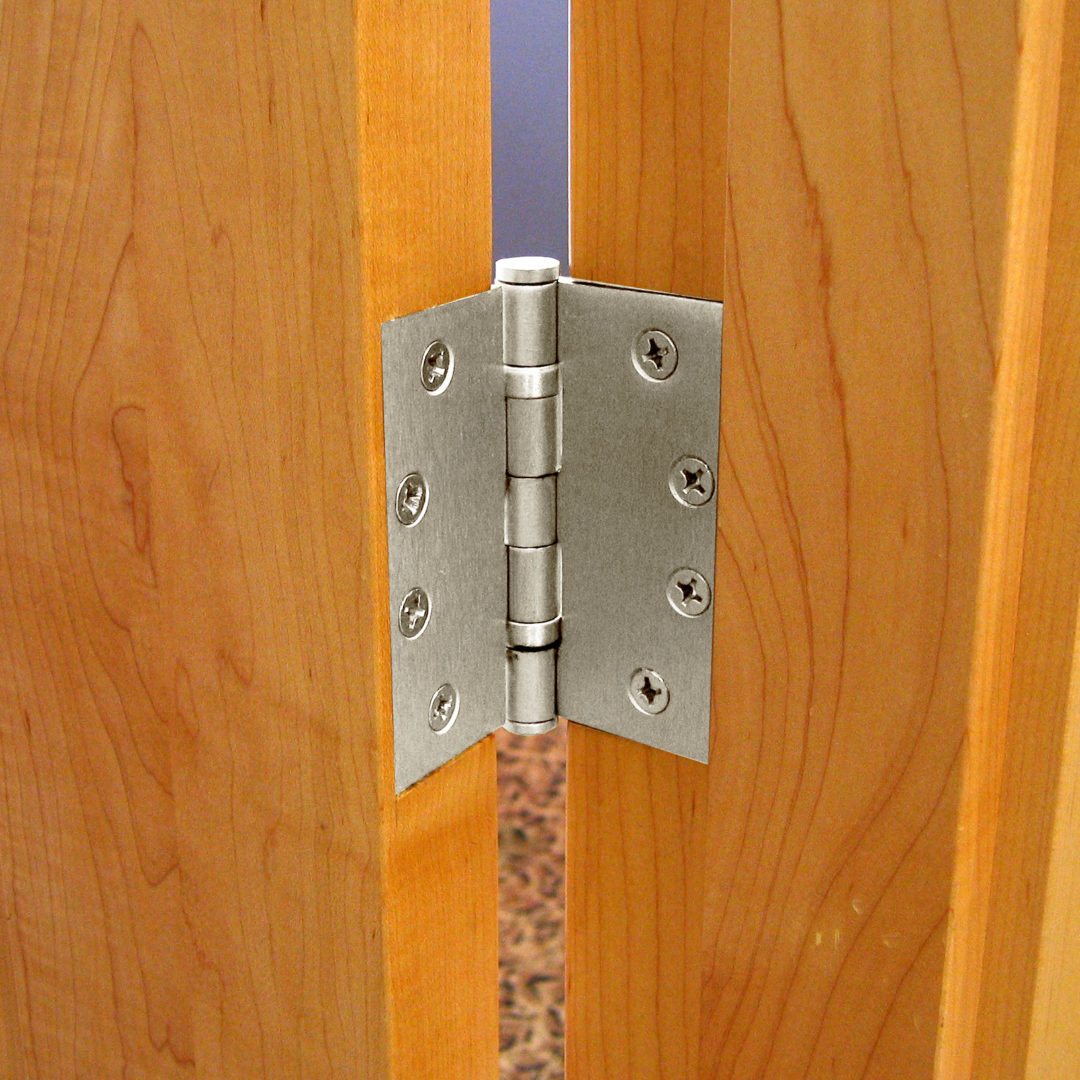

Richelieu 4823NBB 4 1/2" Full Mortise Ball Bearing Butt Hinge offers a perfect blend of functionality and style for your architectural projects. Designed with precision, this hinge features a robust steel construction that ensures durability and long-lasting performance. With a height of 4 1/2 inches and an overall width of 4 inches, it is engineered to handle a maximum load of 150 lbs when using three hinges, making it an ideal choice for heavy doors. The brushed nickel finish adds a modern touch, seamlessly integrating with various design aesthetics. Equipped with ball bearings, this hinge significantly reduces friction, resulting in smooth operation and minimal noise, enhancing the user experience. The removable pin feature allows for easy maintenance and installation, while the mortise mounting type ensures a clean and professional appearance. Each box contains three hinges, along with screws for convenient assembly. Rated ANSI Grade 2, the Richelieu 4823NBB meets high standards for performance and reliability. Whether you are a building professional or a knowledgeable homeowner, this ball bearing hinge is a smart addition to your hardware collection, ensuring both functionality and elegance in your spaces.
4 1/2" Full Mortise Ball Bearing Butt Hinge
Assembly: Assembled
Brand: Onward
Caliber/ Thickness: 3.4 mm
Color/ Finish: Brushed Nickel
Finish: Brushed Nickel
Height: 4 1/2 in
Material: Steel
Max. Load (3 Hinges): 150 lb
Mounting Type: Mortise
Packaging format: Box of 3
Pin: Removable Pin
Product #: 4823NBB
Product number: 4823NBB
Product №: 4823NBB
Recommended Usage: Ball Bearing Hinge
Screw/ Nail: Included
Standards and Certifications: ANSI Grade 2
Type of Corner: Square
Type of Tip: Flat Tip
UPC Code: Yes
Unit: Box of 3
Unit 1: case - 20
Unit 2: case - 20
Width - Overall Dimensions: 4 in
