Richelieu 52821BR 3 1/2" Full Mortise Adjustable Spring Hinge offers a blend of functionality and style, making it an ideal choice for both residential and commercial projects. Crafted from durable steel and finished in a classic brass tone, this hinge not only enhances the aesthetic appeal of your doors but also provides reliable performance. Designed for standard doors, the 52821BR features a non-removable pin for increased security and longevity. With a height and width of 3 1/2 inches, it accommodates a load capacity of up to 88 pounds when using three hinges. Its adjustable spring mechanism allows for precise tension adjustments, ensuring that your door closes smoothly every time. Installation is straightforward with the inclusion of six wood screws (#10 x 1") and six machine screws (#10-24 x 1/2"), making it easy to achieve a secure fit. The hinge is UL-certified, ensuring it meets rigorous safety standards. Additionally, its 1/4" radius corner design and flat tip type add to its versatility, making it suitable for various applications. Upgrade your project with the Richelieu 52821BR Spring Hinge, where quality meets practicality, ensuring your doors function flawlessly while enhancing your overall design.

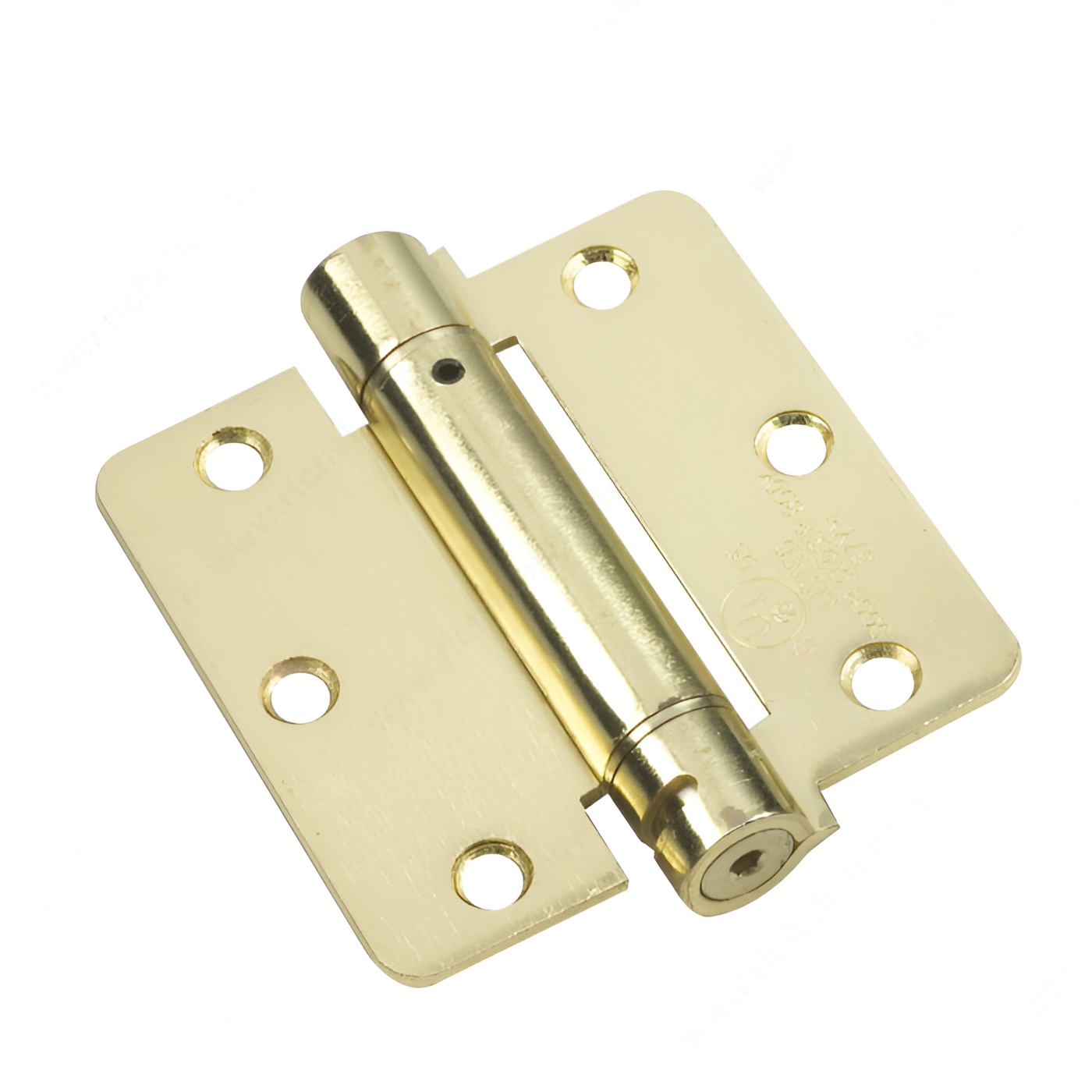

3 1/2" Full Mortise Adjustable Spring Hinge
Included products
Assembly: Assembled
Brand: Onward
Caliber/ Thickness: 2.7 mm
Color/ Finish: Brass
Finish: Brass
Grade: 1
Height: 3 1/2 in
Load Capacity: 30 lb
Load Capacity (3 Hinges): 30 lb
Material: Steel
Mounting Type: Mortise
Packaging format: Blister
Pin: Non-Removable Pin
Product #: 52821BR
Product number: 52821BR
Product №: 52821BR
Recommended Usage: Adjustable Spring
Screw/ Nail: Included
Standards and Certifications: UL
Type of Corner: 1/4" Radius
Type of Tip: Flat Tip
UPC Code: Yes
Unit: Blister
Unit 1: carton - 5
Unit 2: carton - 5
Unit 3: case - 25
Use Type: Standard Door
Width - Overall Dimensions: 3 1/2 in
