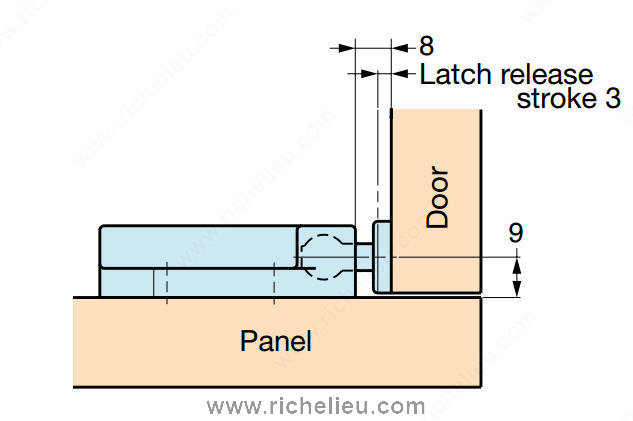

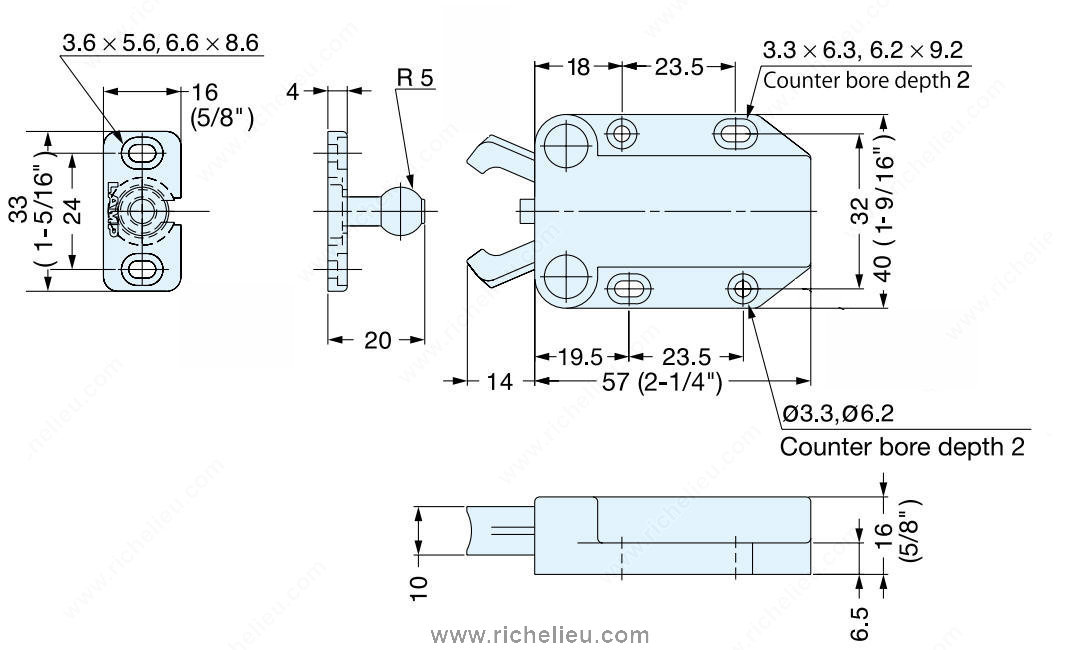

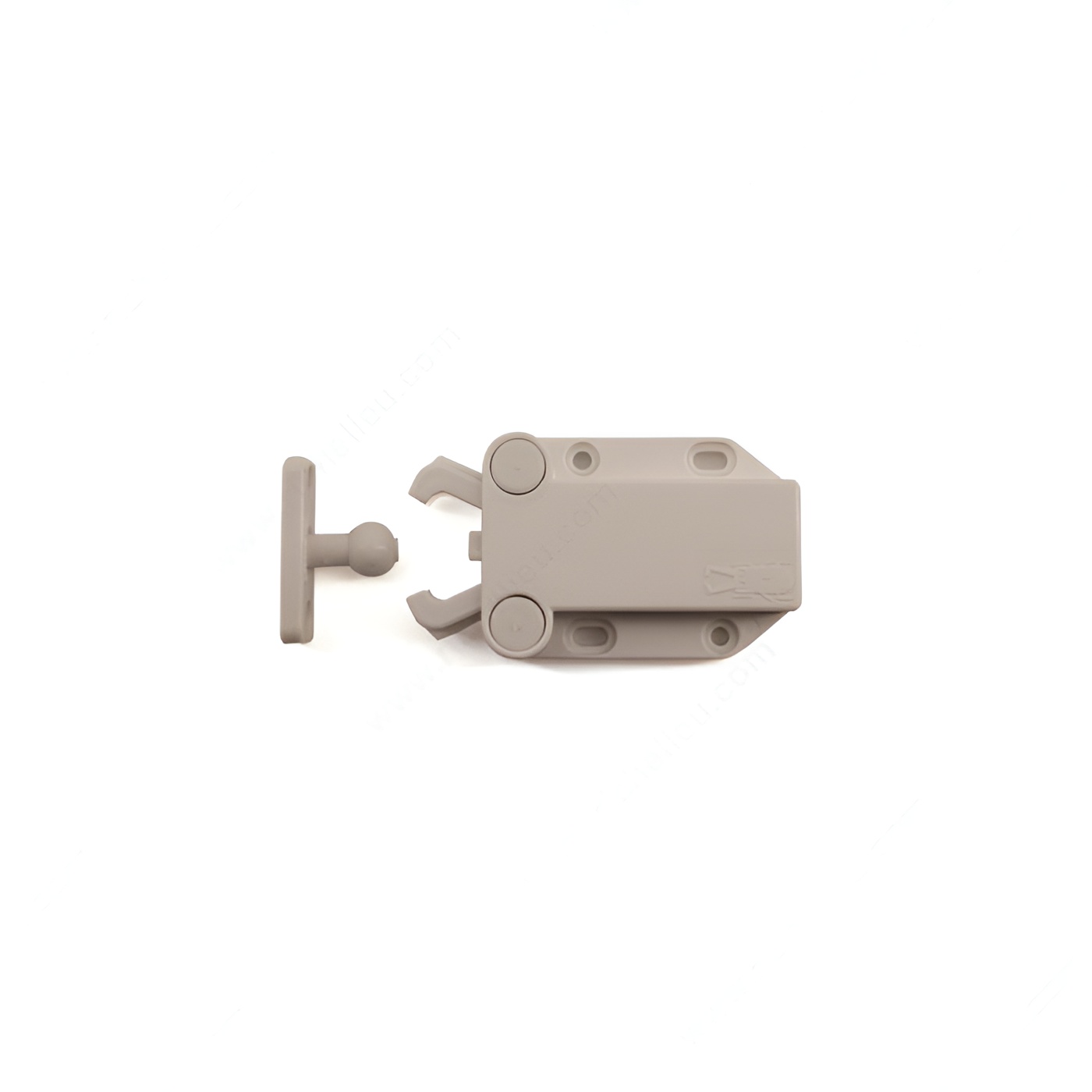

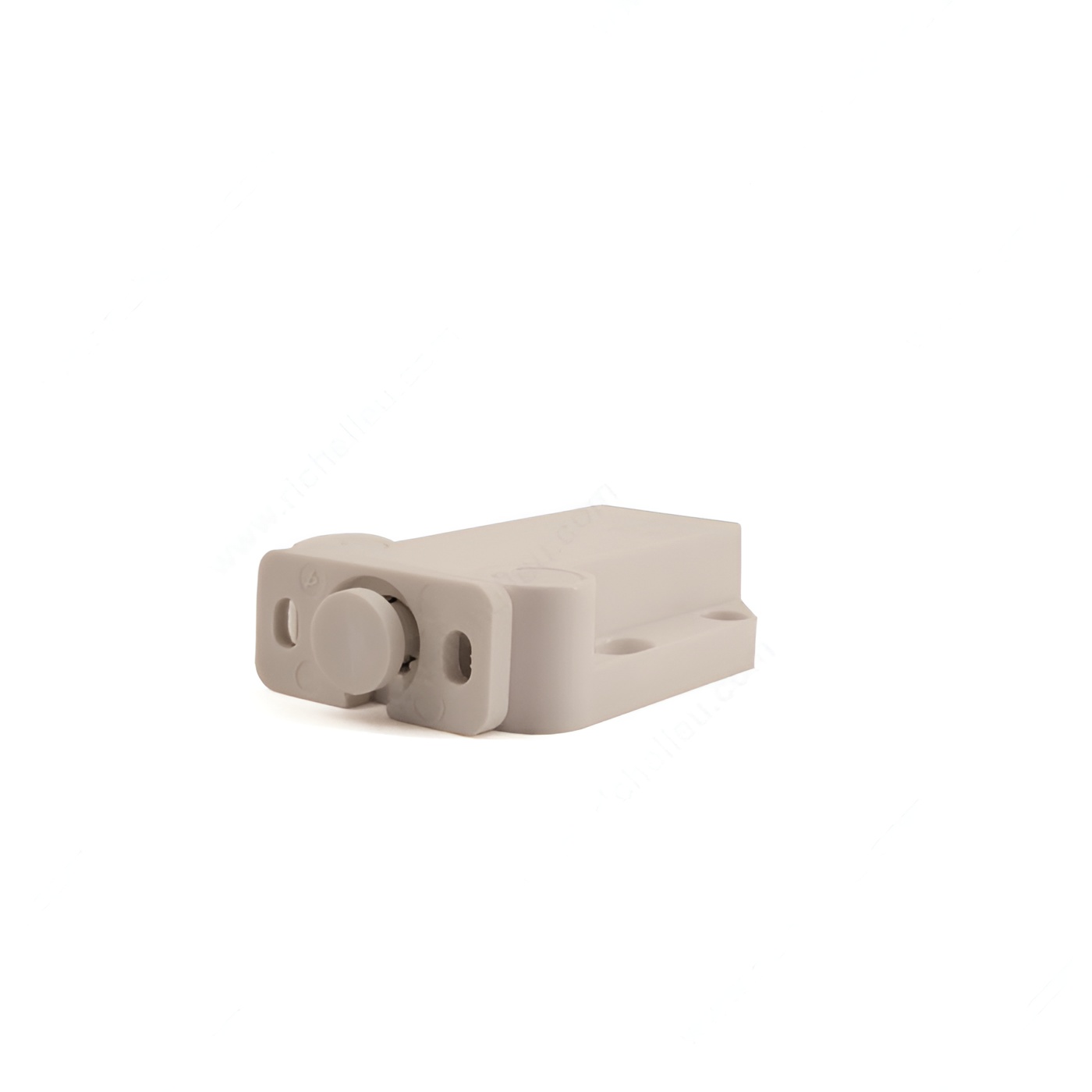

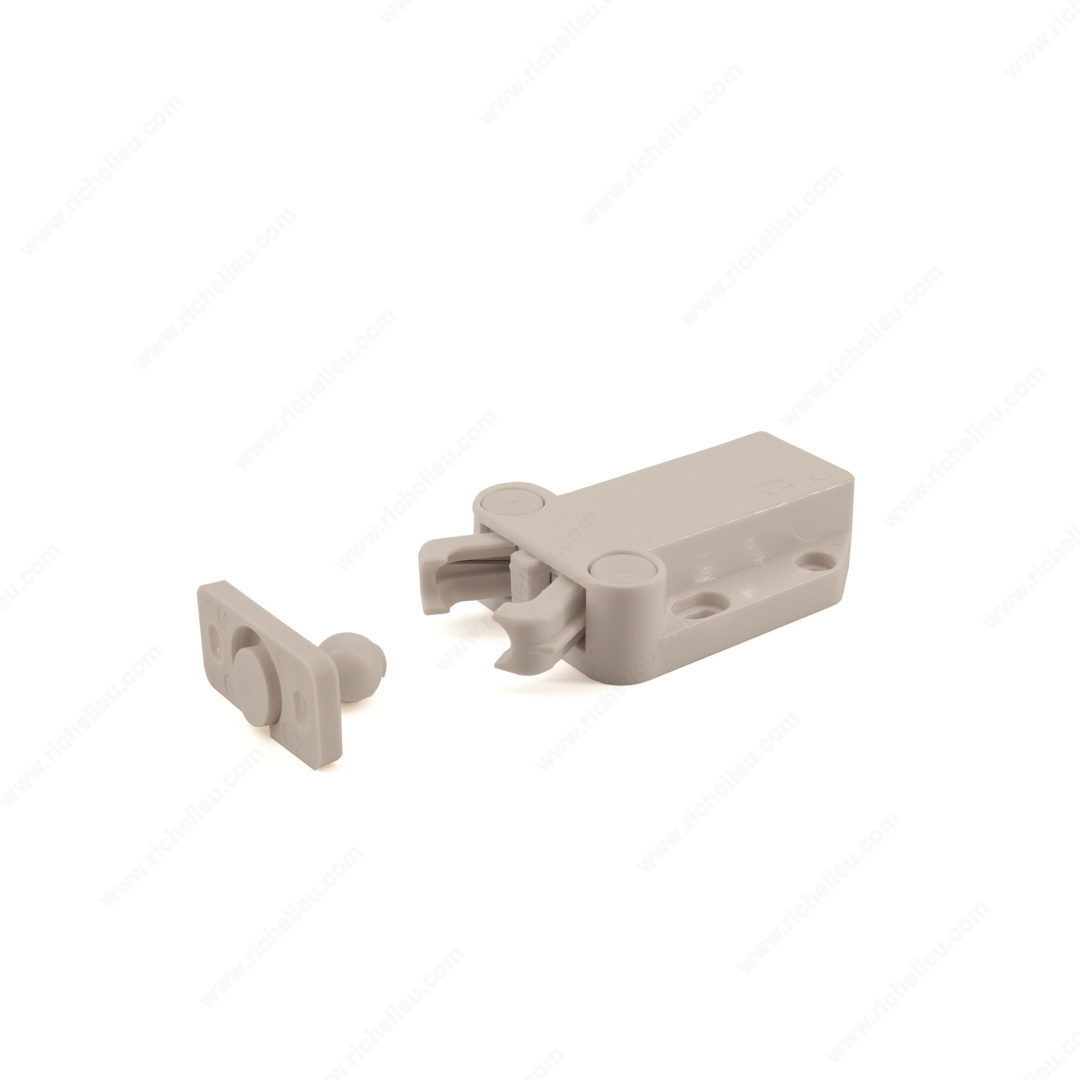

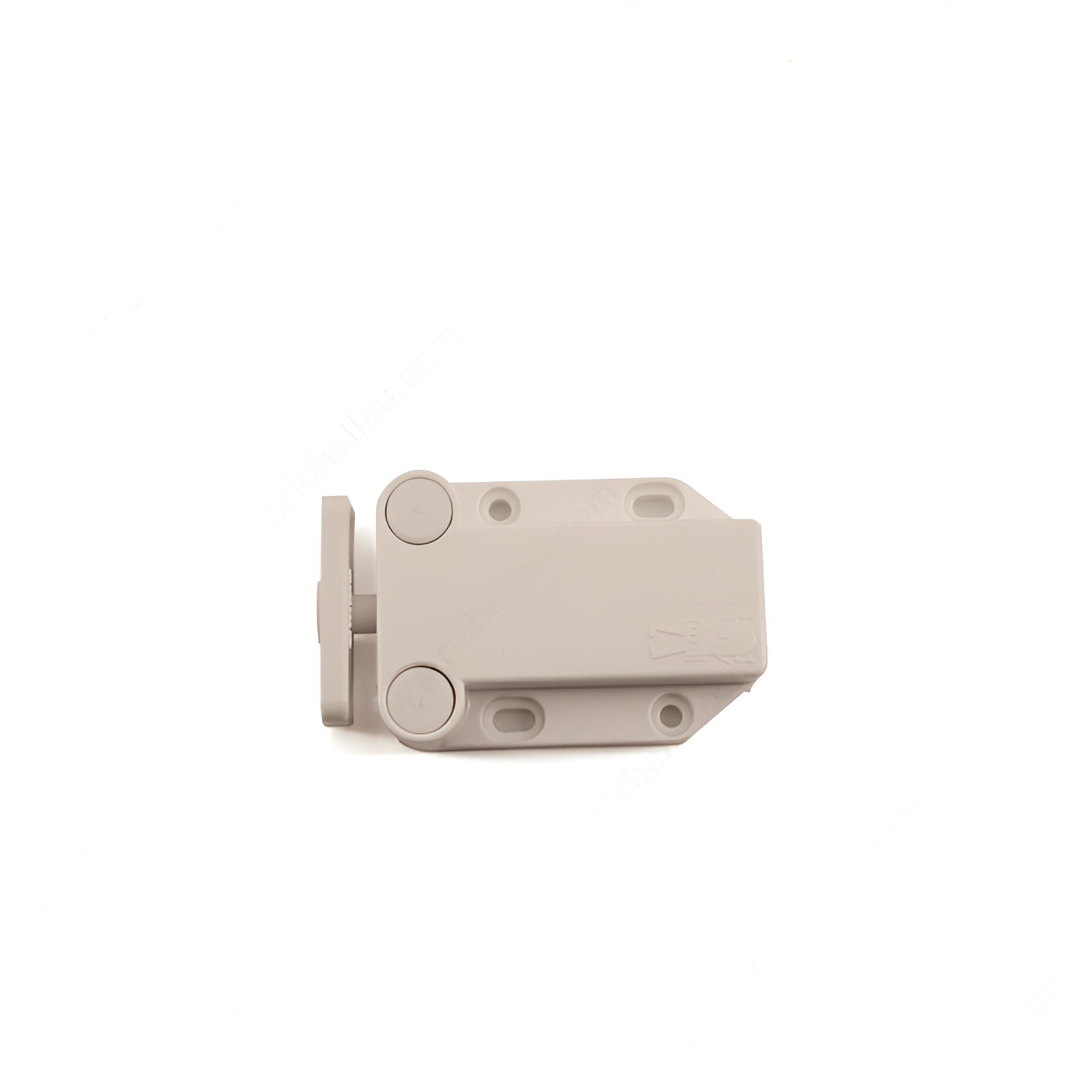

Richelieu 7503730 Non-Magnetic Touch Latch offers a seamless solution for overlay doors, ensuring easy access and a clean aesthetic. This innovative latch features a push-to-latch and unlatch mechanism, allowing users to operate the door without any visible hardware. The floating strike simplifies alignment, making installation straightforward and efficient. To optimize functionality, it is essential to maintain a 3 mm (1/8") gap between the door and the cabinet frame, allowing for the necessary push space. Designed with a holding power of 17.6 lbs, this latch can withstand regular use while providing reliable performance. However, it is advised to avoid excessive force when pulling the door, as this could damage the mechanism. Additionally, constant loading over 4 kg from pushing or pulling is not recommended to ensure the longevity of the product. Constructed from durable plastic, the latch measures 3 1/32 in depth, 5/8 in height, and 1 9/16 in width, making it a compact yet effective choice for any cabinetry project. Available in a clean white finish, the Richelieu 7503730 Non-Magnetic Touch Latch is a practical and stylish addition to kitchens and storage solutions.
Non-Magnetic Touch Latch
Brand: Sugatsune/Lamp
Center to Center: 24 mm
Color/ Finish: White
Depth: 77 mm
Height: 16 mm
Holding Power: 8 kg
Material: Plastic
Product #: 7503730
Product number: 7503730
Product №: 7503730
Unit 1: carton - 30
Unit 2: case - 300
Width: 40 mm
