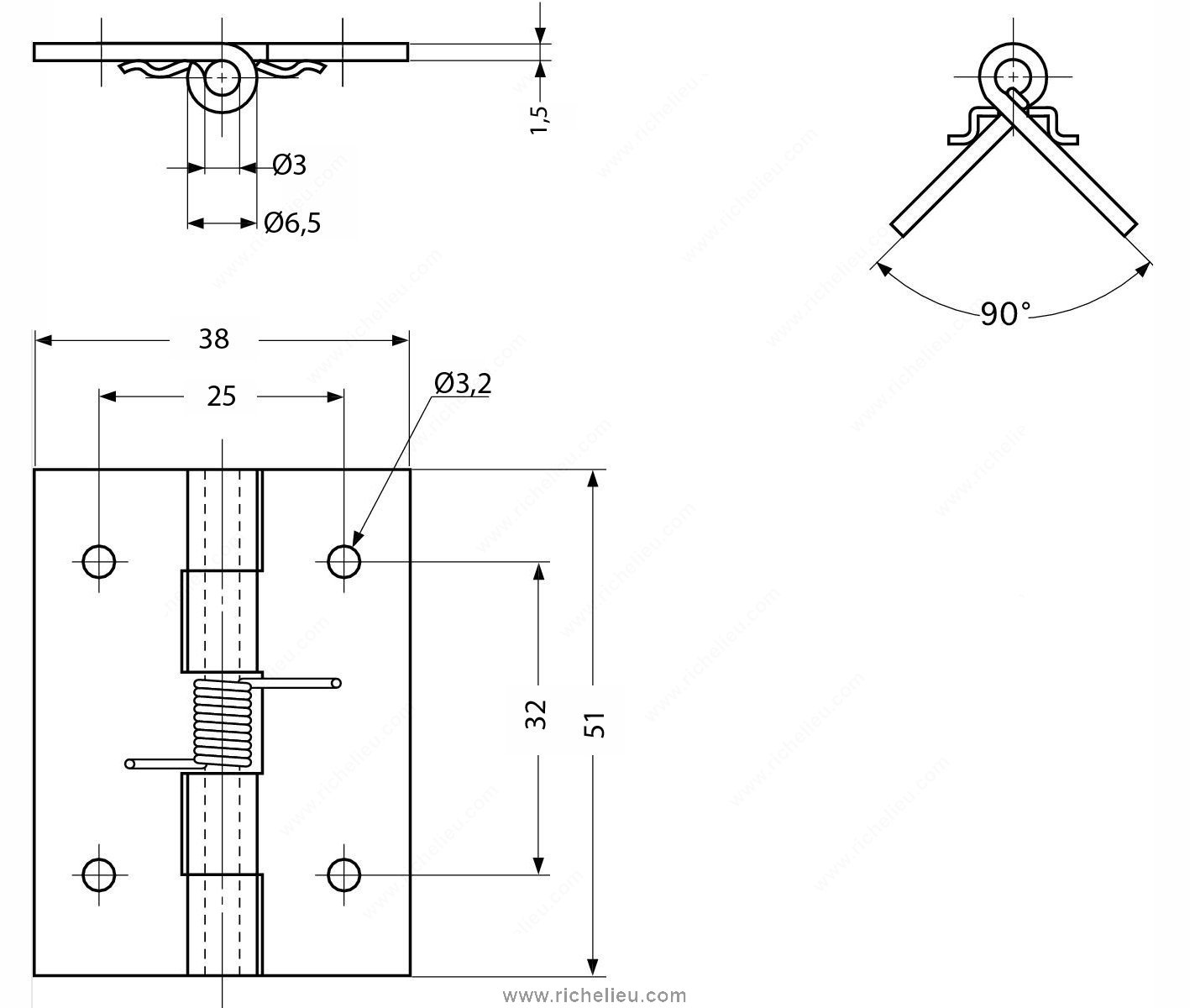

Richelieu 755138170 Spring Butt Hinge is expertly designed to provide reliable closure through spring tension when surface mounted. Crafted from high-quality 304 stainless steel, this hinge ensures durability and resistance to wear, making it ideal for both residential and commercial applications. With an overall width of 1 ½ inches and a height of 2 inches, it seamlessly integrates into various door and cabinet designs, offering a clean and unobtrusive appearance. The hinge features a depth of just ¼ inch, allowing for a compact installation that maintains aesthetic appeal while providing functionality. Its plain finish complements a wide range of styles, from modern to traditional, making it a versatile choice for builders and designers alike. Please note that screws are not included, so be sure to source appropriate fasteners for installation. Certified to RoHS standards, the Richelieu 755138170 Spring Butt Hinge not only meets environmental requirements but also delivers reliable performance with a torque rating of 1.19 lb/in. Whether you are outfitting a new project or upgrading existing fixtures, this hinge offers a practical solution that combines strength with simplicity. For additional specifications, consult the technical drawing provided.
Spring Butt Hinge
Important information
Brand: Sugatsune/Lamp
Color/ Finish: Plain
Depth: 6.5 mm
Finish: Plain
Height: 51 mm
Material: 304 Stainless Steel
Product #: 755138170
Product number: 755138170
Product №: 755138170
Screw/ Nail: Not Included
Standards and Certifications: RoHS
Torque: 1.19 lb/in
Unit 1: case - 130
Width: 38 mm
Width - Overall Dimensions: 38 mm
