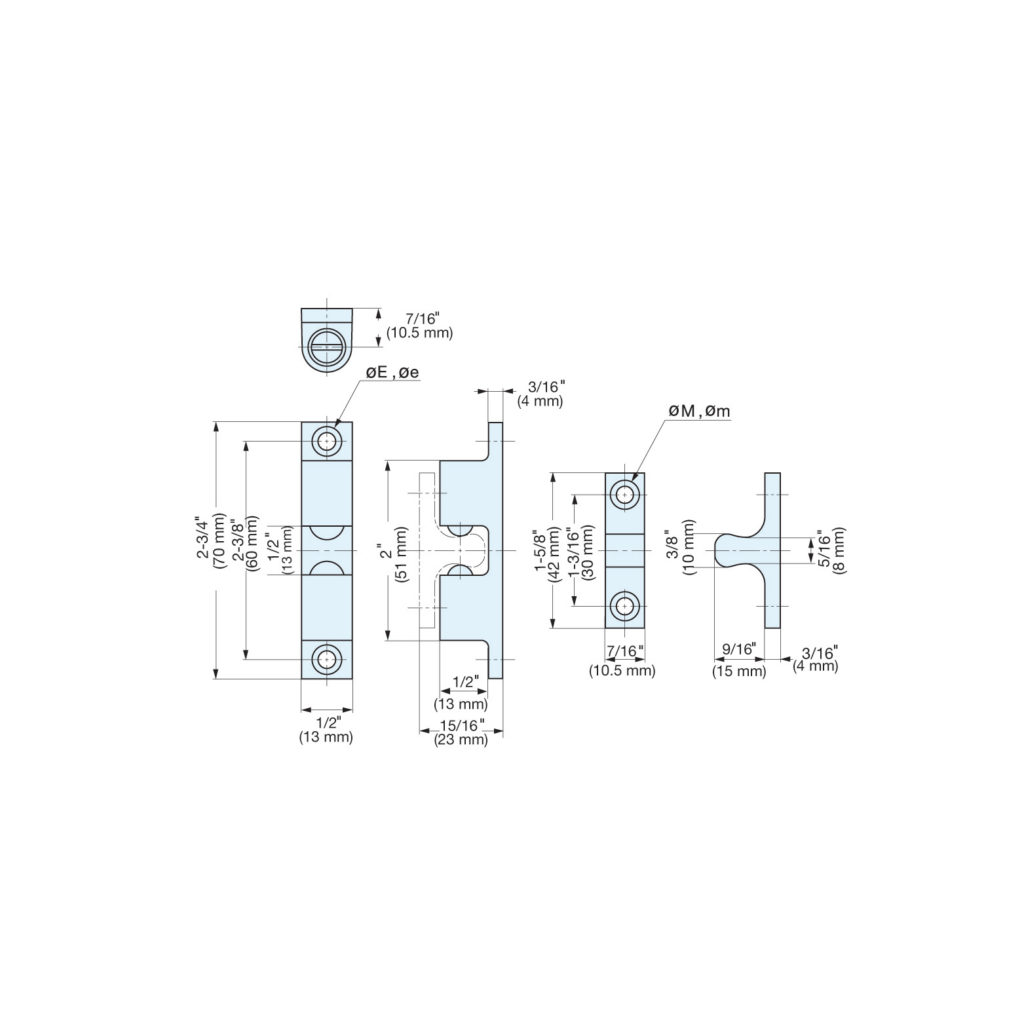

Richelieu 75570170 Tension Catch is a robust and reliable solution designed specifically for exterior applications. Crafted from high-quality 316 stainless steel, this tension catch offers exceptional durability and resistance against the elements, making it ideal for outdoor use where weather resistance is crucial. The polished stainless steel finish enhances its aesthetic appeal, ensuring it complements a variety of architectural styles. With an overall length of 2 3/4 inches and a width of 1/2 inch, the 75570170 features a center-to-center measurement of 2 3/8 inches, facilitating easy installation. This tension catch is engineered to handle a pulling force of 8.6 pounds and a push-in force of 12.6 pounds, providing reliable operation for doors or panels that require a secure closure. Included with the product are screws for straightforward installation, ensuring that your project can proceed without delay. This catch meets RoHS standards, highlighting Richelieu's commitment to safety and environmental responsibility. The overall projection dimension of 29/32 inches allows for a streamlined profile, ensuring it doesn’t interfere with the surrounding design. Upgrade your exterior installations with the Richelieu 75570170 Tension Catch, a perfect blend of functionality and style.
Tension Catch
Application
Brand: Sugatsune/Lamp
Center to Center: 60 mm
Finish: Polished Stainless Steel
Length - Overall Dimensions: 70 mm
Material: 304 Stainless Steel
Product #: 75570170
Product number: 75570170
Product №: 75570170
Projection - Overall Dimensions: 23 mm
Pulling Force: 3.9 kg
Push in Force: 5.7 kg
Screw/ Nail: Included
Standards and Certifications: RoHS
Unit 1: carton - 25
Unit 2: case - 300
Width - Overall Dimensions: 13 mm
