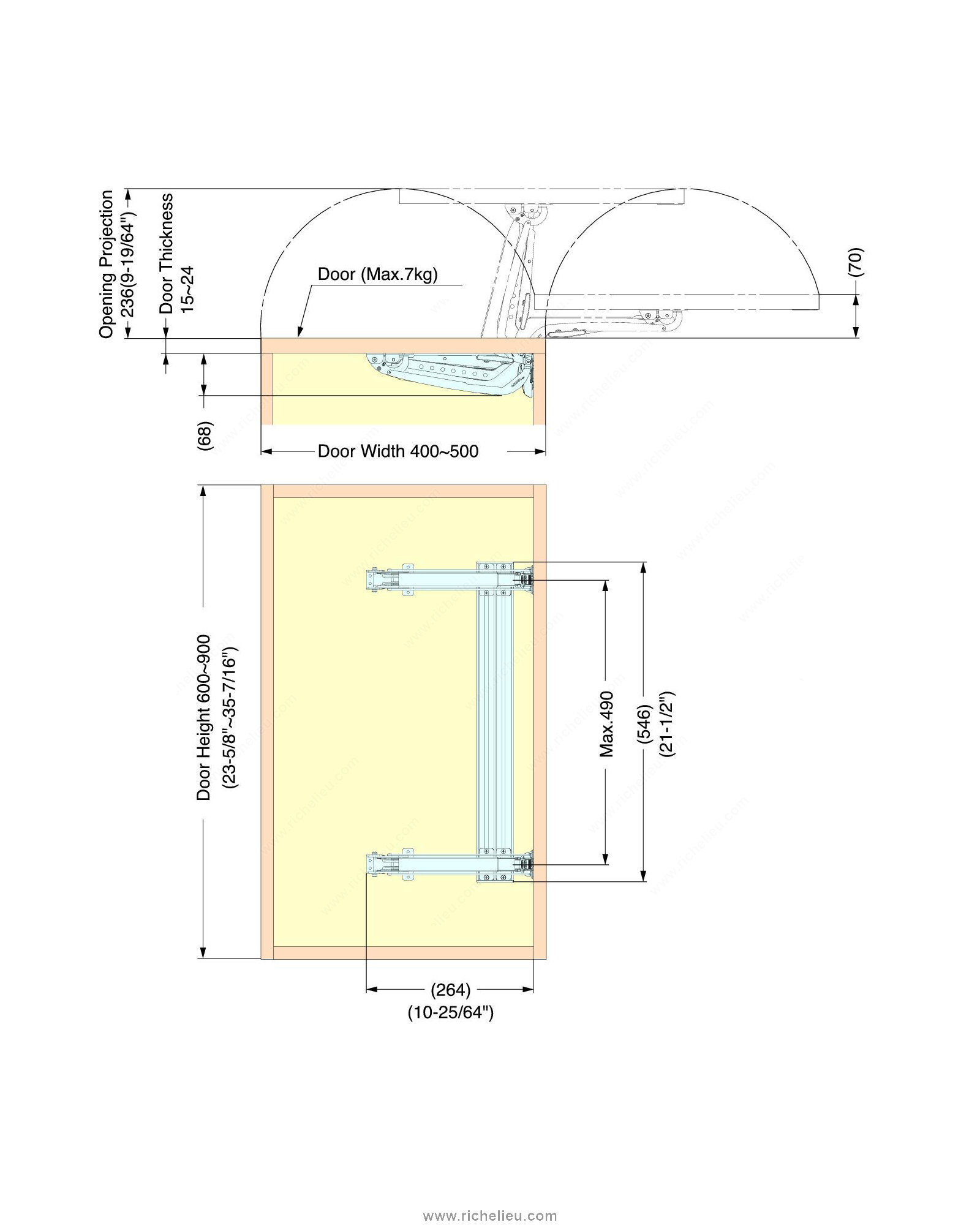

Richelieu 756450 MonoFlat LIN-X450 offers a sophisticated solution for spaces where efficiency is paramount. This basic standard kit allows doors to swing out laterally in a small radius, making it perfect for tight front space applications. Designed for versatility, the system can be opened from various points, optimizing accessibility and convenience. Ideal for pantry, furniture, cabinet, and storage applications, this model accommodates doors with a height range of 23 5/8 to 35 3/8 inches. Crafted for wood doors, the MonoFlat LIN-X450 supports a thickness between 19/32 to 15/16 inches, with a width range of 15 3/4 to 19 5/8 inches. The hardware features a sleek nickel finish, adding a modern aesthetic to any installation. With a maximum load capacity of 15.4 pounds, this system is designed to handle everyday use effortlessly. It supports both left and right-hand openings and features one-way soft-close operation, ensuring a gentle and secure close every time. Displayed in the Montreal showroom, the Richelieu 756450 MonoFlat LIN-X450 is an excellent choice for building professionals and discerning homeowners seeking quality and functionality in their cabinetry solutions.
MonoFlat LIN-X450
Application: Pantry, Furniture, Cabinet, Storage
Brand: Sugatsune/Lamp
Displayed in These Showrooms: Montreal
Door Height: 600 to 900 mm
Door Material: Wood
Door Movement: Lateral
Door Position: Full Overlay
Door Thickness: 15 to 24 mm
Door Width: 400 to 500 mm
Finish: Nickel
Load Capacity: Max. 15.4 lb*
Number of Doors: 1
Opening: Left- and Right-Hand Opening
Overlay: 19 mm
Product #: 756450
Product number: 756450
Product №: 756450
Soft- Close Type: One-Way Operation
Unit: Set
Unit 1: box - 1
Unit 2: box - 1
Unit 3: case - 6
Weight Capacity per Door: Max. 7 kg
