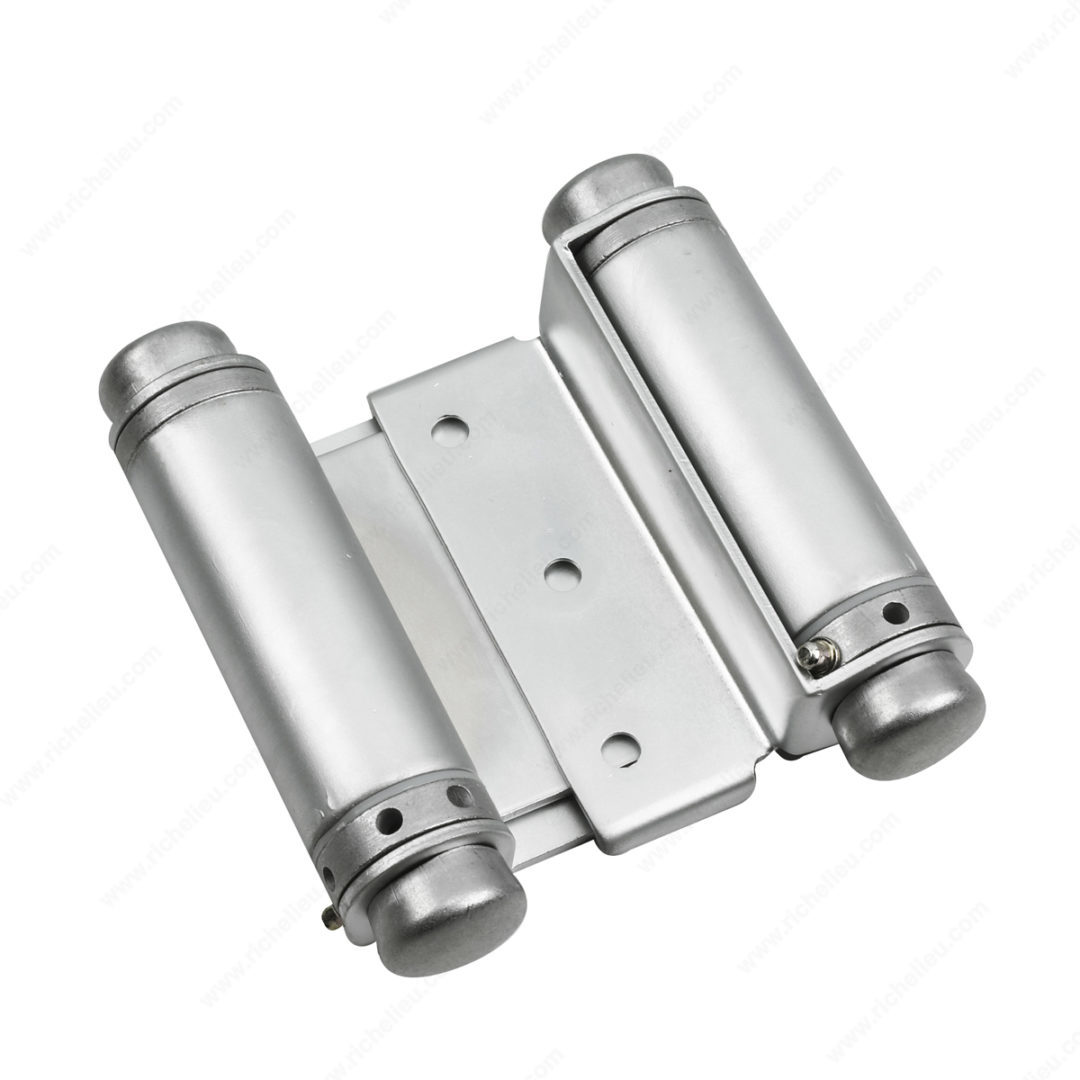

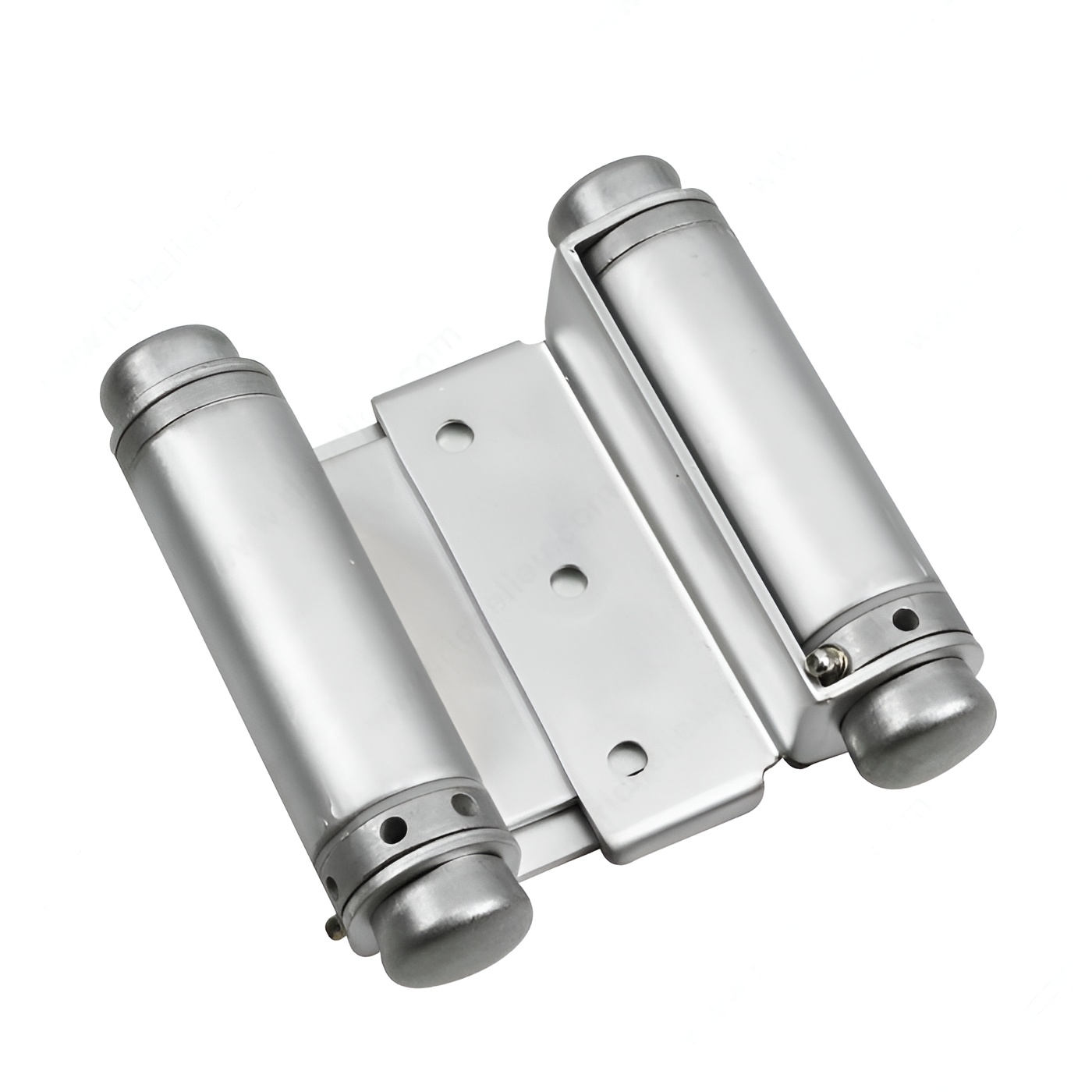

Richelieu 810SCB 3'' Double Action Spring Hinge offers a seamless solution for spaces requiring two-way access. This innovative hinge automatically swings the door in both directions, making it ideal for high-traffic areas. Crafted from durable steel, it features a satin chrome finish that not only provides a modern aesthetic but also ensures longevity and resistance to wear. With a height of 3 3/4 inches and an overall width of 5 25/32 inches, this hinge is designed to accommodate a load capacity of 49.6 pounds when used with three hinges, making it suitable for various applications. The non-removable pin enhances security, while the self-closing function ensures that doors return to their closed position effortlessly. Included with the hinge are 12 flat head Phillips wood screws, allowing for easy installation. Designed for spring and double-action usage, this hinge is a non-hold-open type, ensuring smooth operation without the risk of doors remaining ajar. Whether you're a building professional or a knowledgeable homeowner, the Richelieu 810SCB hinge stands out as a reliable choice to enhance your architectural projects with both functionality and style.
3'' Double Action Spring Hinge
Included products
Assembly: Assembled
Brand: Onward
Caliber/ Thickness: 26 mm
Color/ Finish: Satin Chrome
Finish: Satin Chrome
Function: Non Hold-Open
Height: 95 mm
Load Capacity: 15 lb
Load Capacity (3 Hinges): 49.6 lb
Material: Steel
Pin: Non-Removable Pin
Product #: 810SCB
Product number: 810SCB
Product №: 810SCB
Recommended Usage: Spring/Double Action
Screw/ Nail: Included
Type of Tip: Flat Tip
UPC Code: Yes
Unit: Box of 2
Unit 1: case - 20
Unit 2: case - 20
Width - Overall Dimensions: 147 mm
