Richelieu 91853145 5/8" Overlay Institutional Hinge is engineered for robust performance in high-traffic environments. This hinge features staggered side panel mounting holes, allowing for precise installation and enhanced stability. With a door overlay of 11/32 inches and a generous hinge opening angle of +270°, it ensures smooth and unrestricted access. Constructed from durable steel, this hinge is designed to withstand the rigors of institutional use while maintaining a sleek chrome finish that adds a touch of modern elegance. It accommodates door thicknesses of 13/16 inches and has an offset of 5/8 inches, making it versatile for various applications. The hinge also boasts an overlay measurement of 19/32 inches, ensuring a clean and flush aesthetic. Easy to install, the Richelieu institutional hinge utilizes a screw-on fixing type. Although #8 screws are not included, the hinge is packaged per unit for convenience. Certified to ANSI/BHMA 156.9 Grade 1 standards, this hinge delivers reliability and longevity. Whether for new construction or retrofits, the Richelieu 91853145 is your go-to solution for dependable door operation in institutional settings.

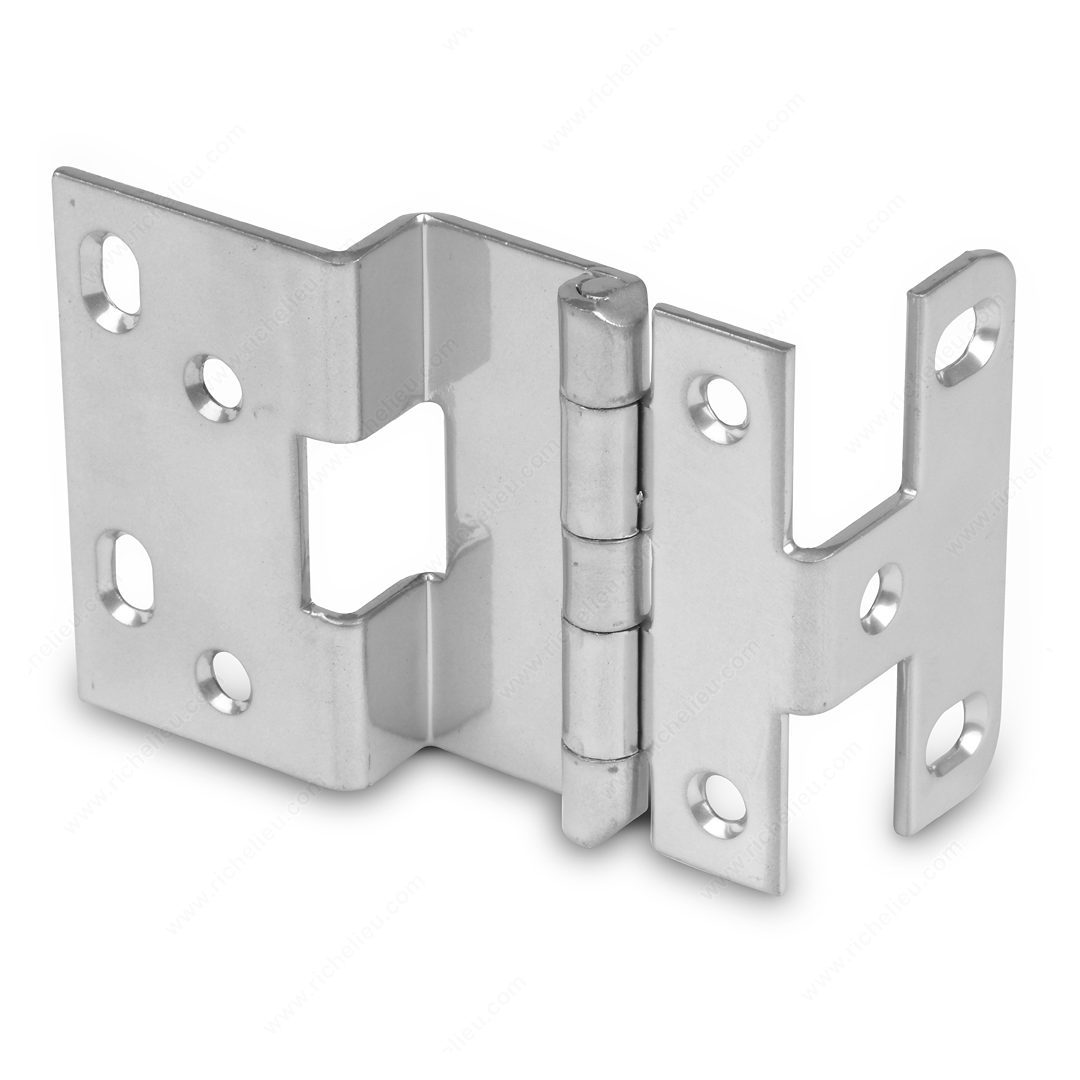

Five Knuckles Institutional Hinge 853 Series - 13/16" x 5/8"
Important information
Brand: RPC
Color/ Finish: Satin Chrome
Door Overlay: 11/32 in
Door Thickness: 13/16 in
Door overlay: 11/32 in
Door thickness: 13/16 in
Finish: Chrome
Fixing Type: Screw-On
Gauge: 2.4 mm
Height: 2 3/4 in
Hinge Opening Angle: +270°
Material: Steel
Offset: 5/8 in
Overlay: 19/32 in
Packaging format: Per unit
Product #: 91853145
Product number: 91853145
Product №: 91853145
Screw/ Nail: #8, Flat Head (not included)
Side panel thickness: 5/8 in
Standards and Certifications: ANSI/BHMA 156.9 Grade 1
Type: Institutional Hinge
Unit 1: carton - 100
