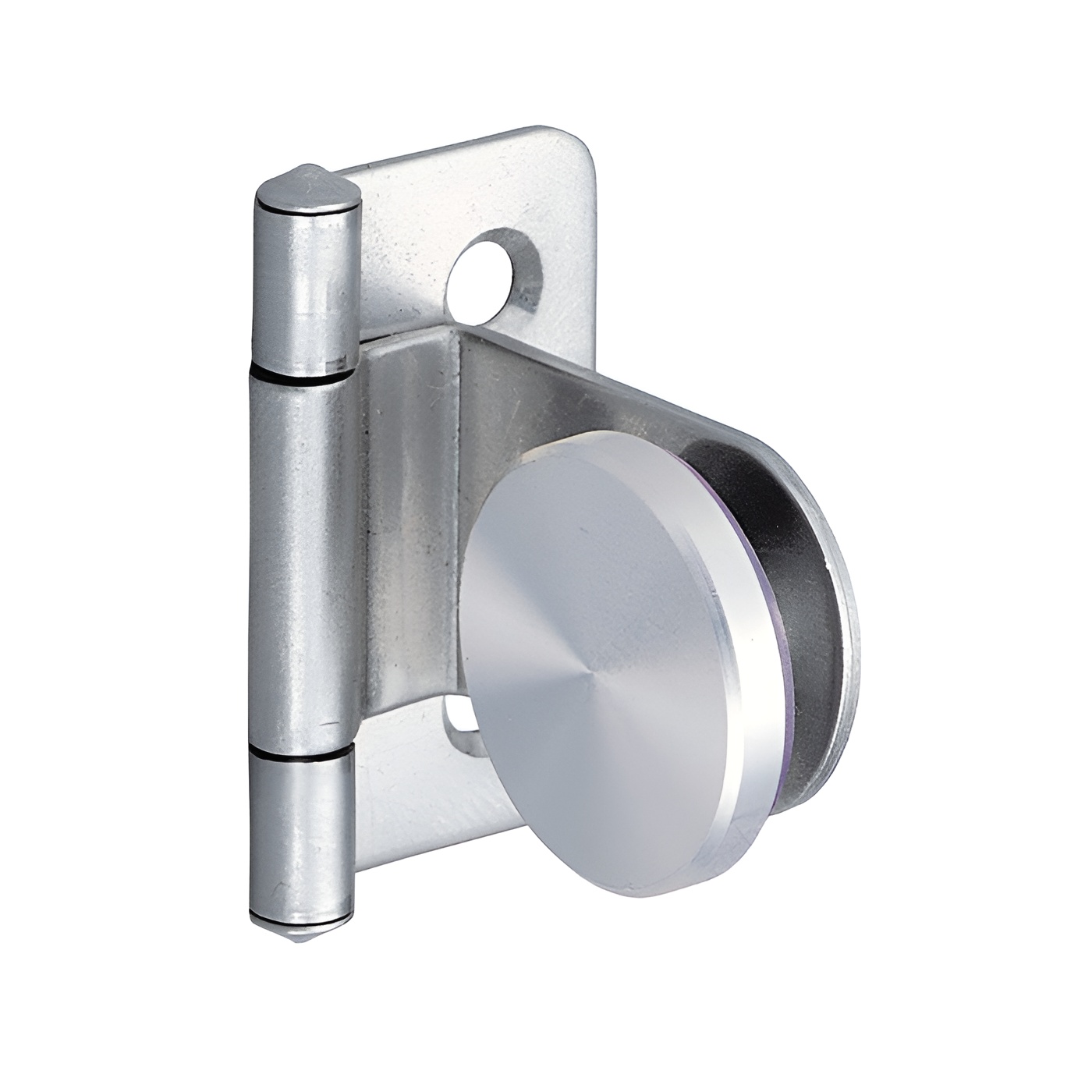

Richelieu BP75340170 Hinge for Door Inserted Into Furniture/Cabinet offers a sleek and functional solution for glass and acrylic doors. Crafted from high-quality Stainless Steel 304, this hinge combines durability with an elegant finish, making it an ideal choice for modern cabinetry and furniture applications. With a height of 1 11/32 inches and a length of 13/16 inches, this hinge accommodates doors with a maximum height of 27 1/2 inches and a width of up to 17 3/4 inches. It is designed to support a load capacity of up to 8.82 pounds, ensuring reliable performance while maintaining a minimalist aesthetic. The hinge is suitable for glass thicknesses ranging from 5/32 to 1/4 inches, providing versatility in design options. Packaged conveniently in a bag, the Richelieu BP75340170 can be shipped via UPS, making it an accessible choice for builders and remodelers alike. This hinge not only enhances the functionality of your installations but also adds a touch of sophistication to any space. Choose the Richelieu BP75340170 for your next project and experience the perfect blend of style and strength.
Hinge for Door Inserted Into Furniture/Cabinet
Brand: Sugatsune/Lamp
Finish: Stainless Steel
Height: 34 mm
Height of Door to Respect: Max. 700 mm
Length: 21 mm
Load Capacity: Max. 4 kg
Material: Stainless Steel 304
Packaging format: Bag
Product #: BP75340170
Product number: BP75340170
Product №: BP75340170
Thickness of Glass: 4 to 6 mm
Unit: Bag
Unit 1: carton - 150
Unit 2: carton - 150
Unit 3: case - 600
Use Type: Glass
Width: 32 mm
Width of Door to Respect: Max. 450 mm
