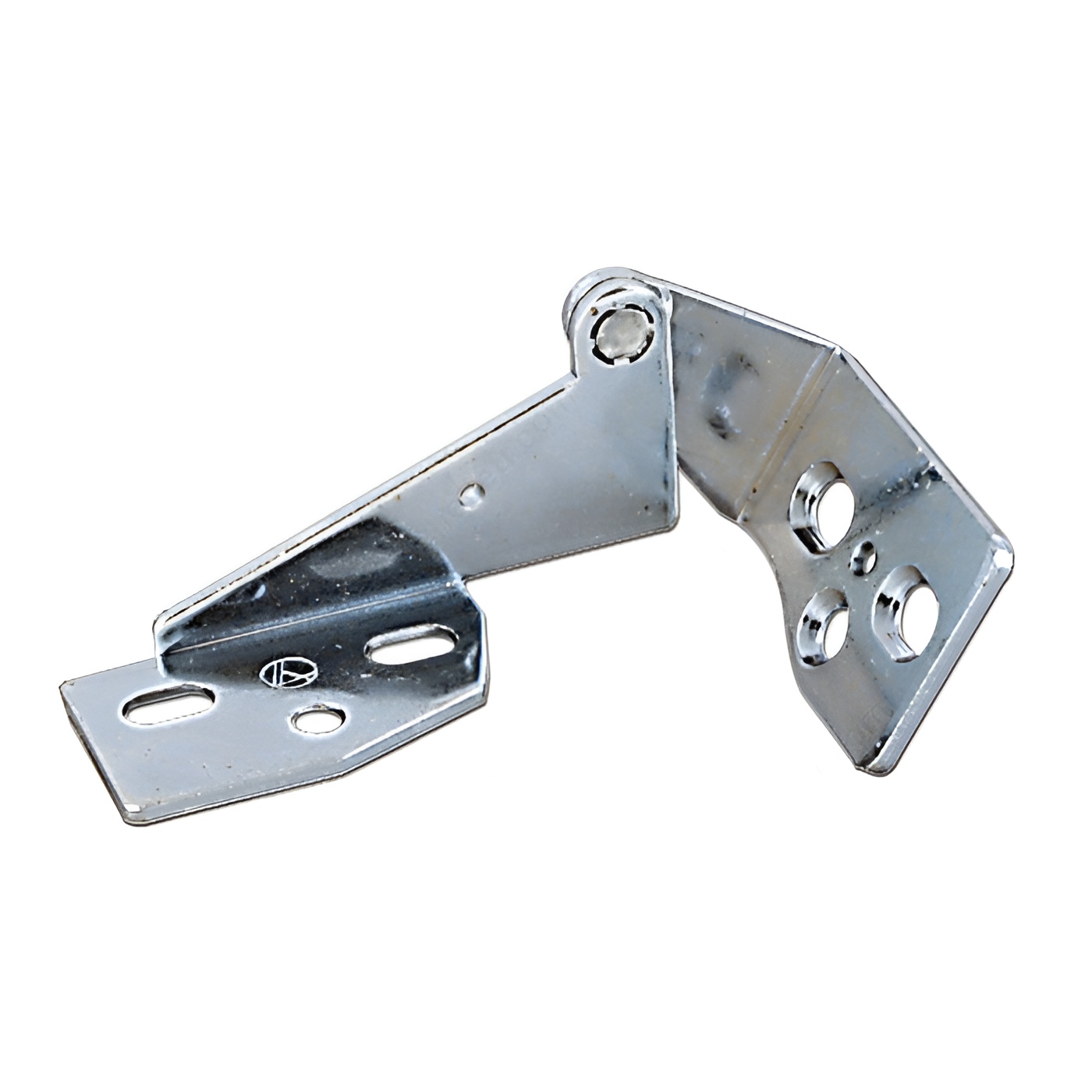

Richelieu BP812422G Hinge for 3/4" Door is designed to enhance the functionality and aesthetics of face frame cabinets. This pivot hinge boasts slotted mounting holes, allowing for both vertical and horizontal adjustments, making installation straightforward and adaptable to various cabinet configurations. With a generous 180° opening angle, it accommodates a wide range of overlay sizes, making it an ideal choice for kitchens, bathrooms, and furniture applications. Crafted from durable metal with a sleek zinc finish, this hinge not only ensures long-lasting performance but also complements modern design elements. Measuring 1 1/2 inches in height and 2 9/32 inches in length, it fits seamlessly into your cabinetry, while the projection of 1 3/16 inches provides ample space for smooth operation. The hinge supports a load capacity of up to 11 pounds, making it suitable for different door weights. For added convenience, the necessary screws are included, simplifying the installation process. Whether you’re a building professional or a knowledgeable homeowner, the Richelieu BP812422G hinge is a reliable choice that combines quality, versatility, and ease of use, ensuring your cabinetry functions beautifully and effectively.
Hinge for 3/4" Door
Color/ Finish: Zinc
Door Thickness: 7 in
Fixing Type: Screw-On
Height - Overall Dimensions: 38 mm
Length - Overall Dimensions: 58 mm
Load Capacity: 10 kg
Material: Metal
Overlay: 3/4 in
Product #: BP812422G
Product number: BP812422G
Product №: BP812422G
Projection - Overall Dimensions: 30 mm
Screw/ Nail: Included
Unit: Bag of 2 units
Unit 1: carton - 10
Unit 2: carton - 10
Unit 3: case - 200
