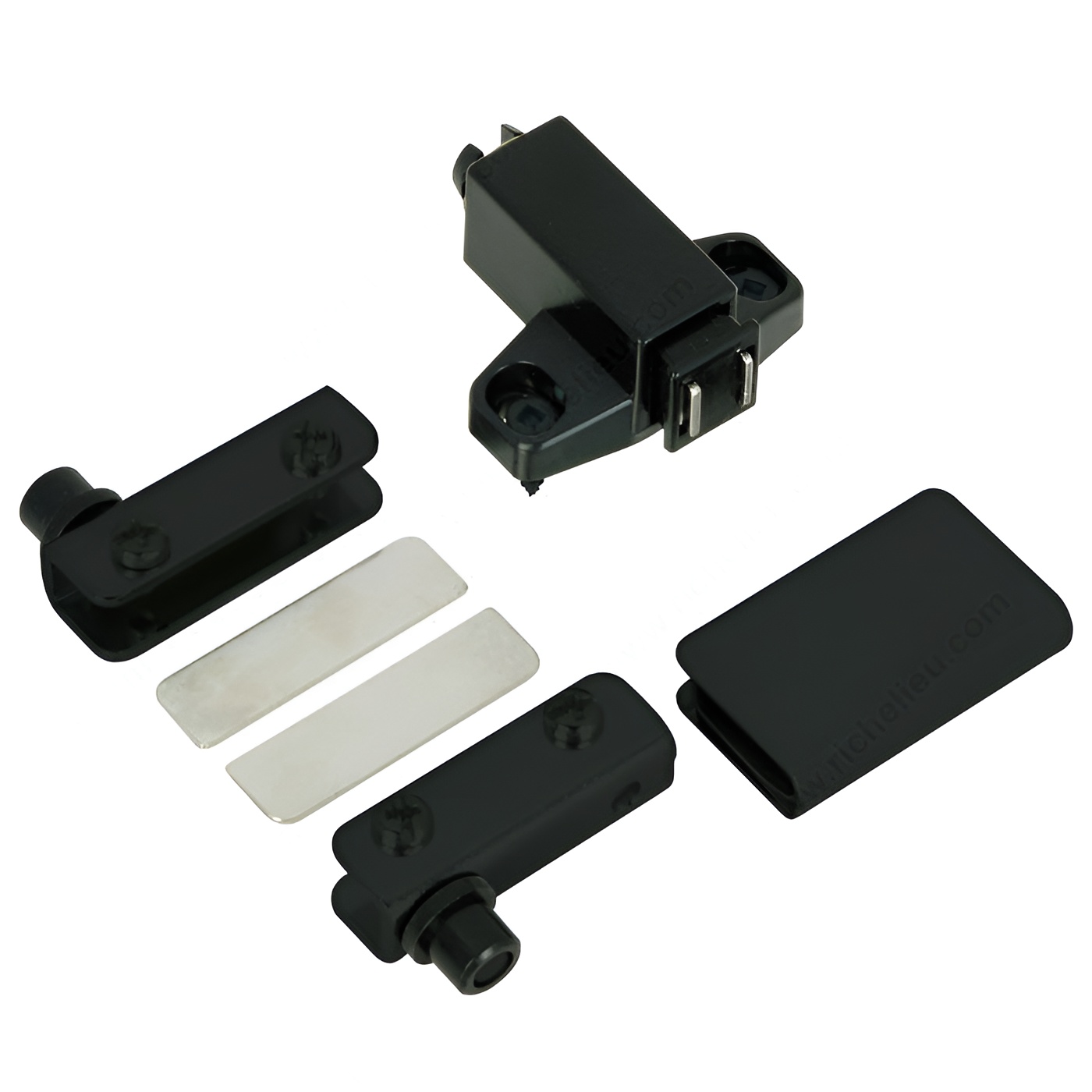

Richelieu BP8690 Pivot Hinge Set for Glass Doors Recessed Within Furniture/Cabinet offers an ideal solution for seamlessly integrating glass doors into your cabinetry. This comprehensive glass door hinge kit includes two durable 2001-series pivot hinges, a 5002-series latch plate, and a 5096-90 magnetic push latch in an elegant black finish, all designed to provide both style and functionality. Crafted from high-quality steel, the BP8690 set supports a maximum load capacity of 5.51 lbs, accommodating glass thicknesses ranging from 3/16 to 1/4 inch. With a height of 19/32 inch and a width of 11/32 inch, this hinge set is engineered for precision, ensuring a perfect fit for doors with a maximum height of 31 1/2 inches and a maximum width of 19 5/8 inches. Installation is simplified with included screws and metal thumb screws, making it easy to achieve a secure and reliable connection. Additionally, the hinge set ships conveniently via UPS and is available in bundles of 10 units, making it a practical choice for both professional builders and discerning homeowners. Elevate your cabinetry with the refined design and robust performance of the Richelieu BP8690 Pivot Hinge Set.
Pivot Hinge Set for Glass Doors Recessed Within Furniture/Cabinet
Included products
Dimensions to subtract from the height: 3/8 in
Dimensions to subtract from the width: 3/32 in
Finish: Black
Height: 15 mm
Height of Door to Respect: Max. 800 mm
Length: 40 mm
Load Capacity: Max. 2.5 kg
Material: Steel
Product #: BP8690
Product number: BP8690
Product №: BP8690
Screw/ Nail: Included
Thickness of Glass: 5 to 6 mm
Thumb Screws: Metal
Unit: Bag
Unit 1: package - 10
Unit 2: package - 10
Unit 3: case - 200
Width: 9 mm
Width of Door to Respect: Max. 500 mm
