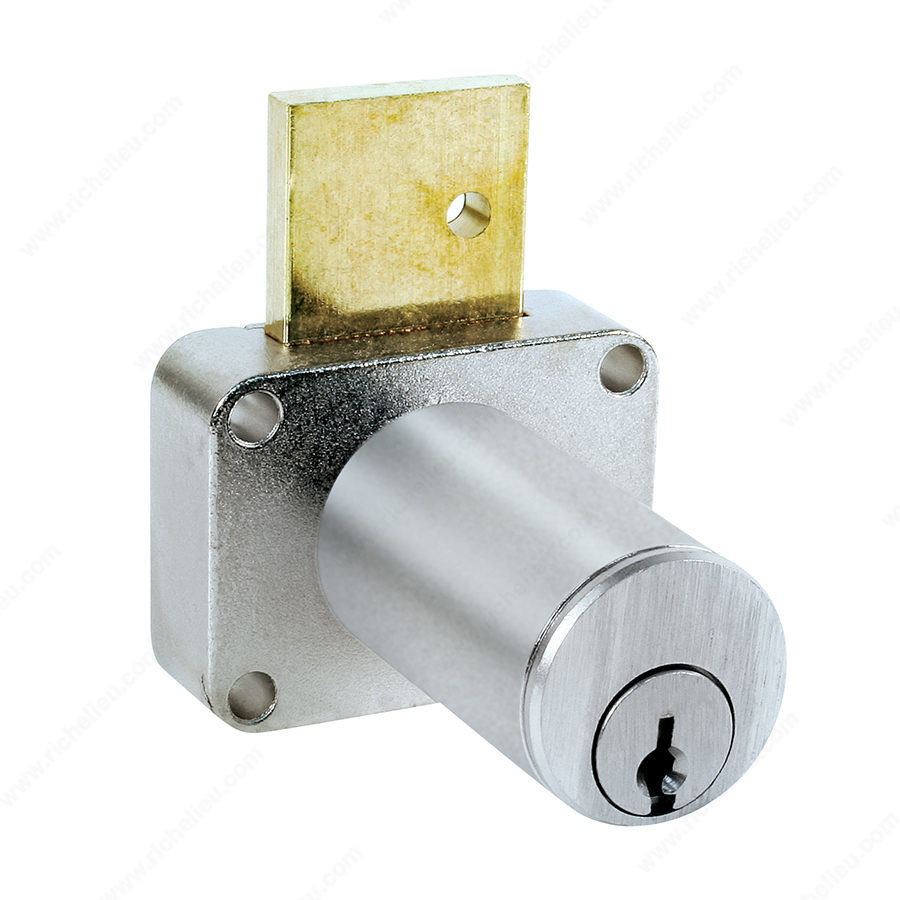

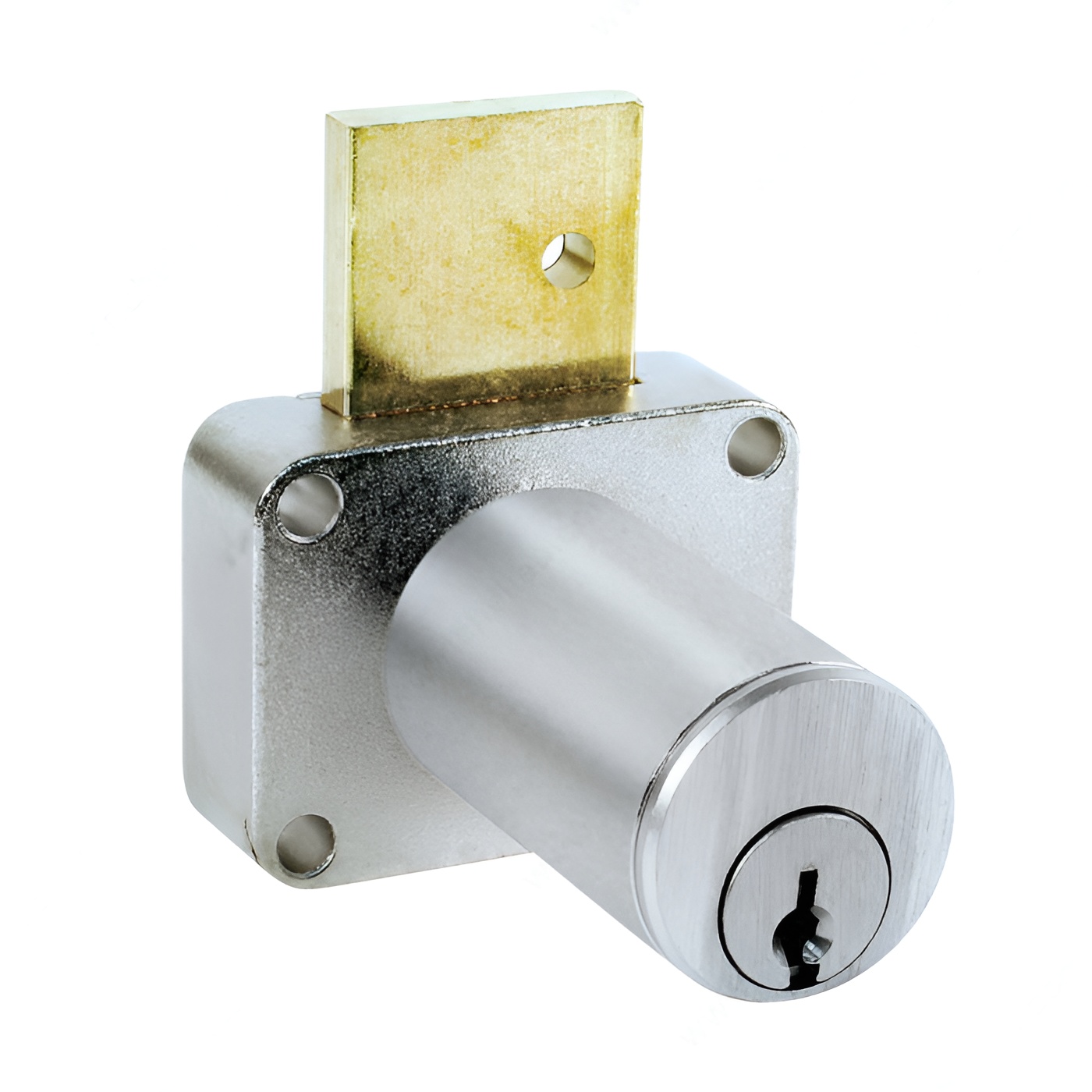

Richelieu LOC817910326D Drawer Locks - C8178 and C8179 offer a robust security solution designed specifically for single drawer applications. Crafted from high-quality brass, these locks feature a brushed chrome finish that not only enhances durability but also adds a sleek aesthetic to your cabinetry. With a bolt travel of 3/4 inch, this deadbolt lock ensures reliable protection against unauthorized access. The cylinder diameter measures 57/64 inch and the cylinder length is 1 3/8 inch, making it compatible with panel thicknesses ranging from 1/4 to 1 3/8 inches. Keyed alike #103 functionality allows for convenient key management, while the pin mechanism type guarantees a high level of security, certified to ANSI/BHMA Grade 2 standards. Designed to ship via UPS, the Richelieu LOC817910326D is ideal for both building professionals and savvy homeowners seeking an effective locking solution for their drawers. The combination of high security and stylish design makes this lock a practical choice for enhancing the safety and functionality of your furniture. With Richelieu, you can trust that you’re investing in quality and reliability for your locking needs.

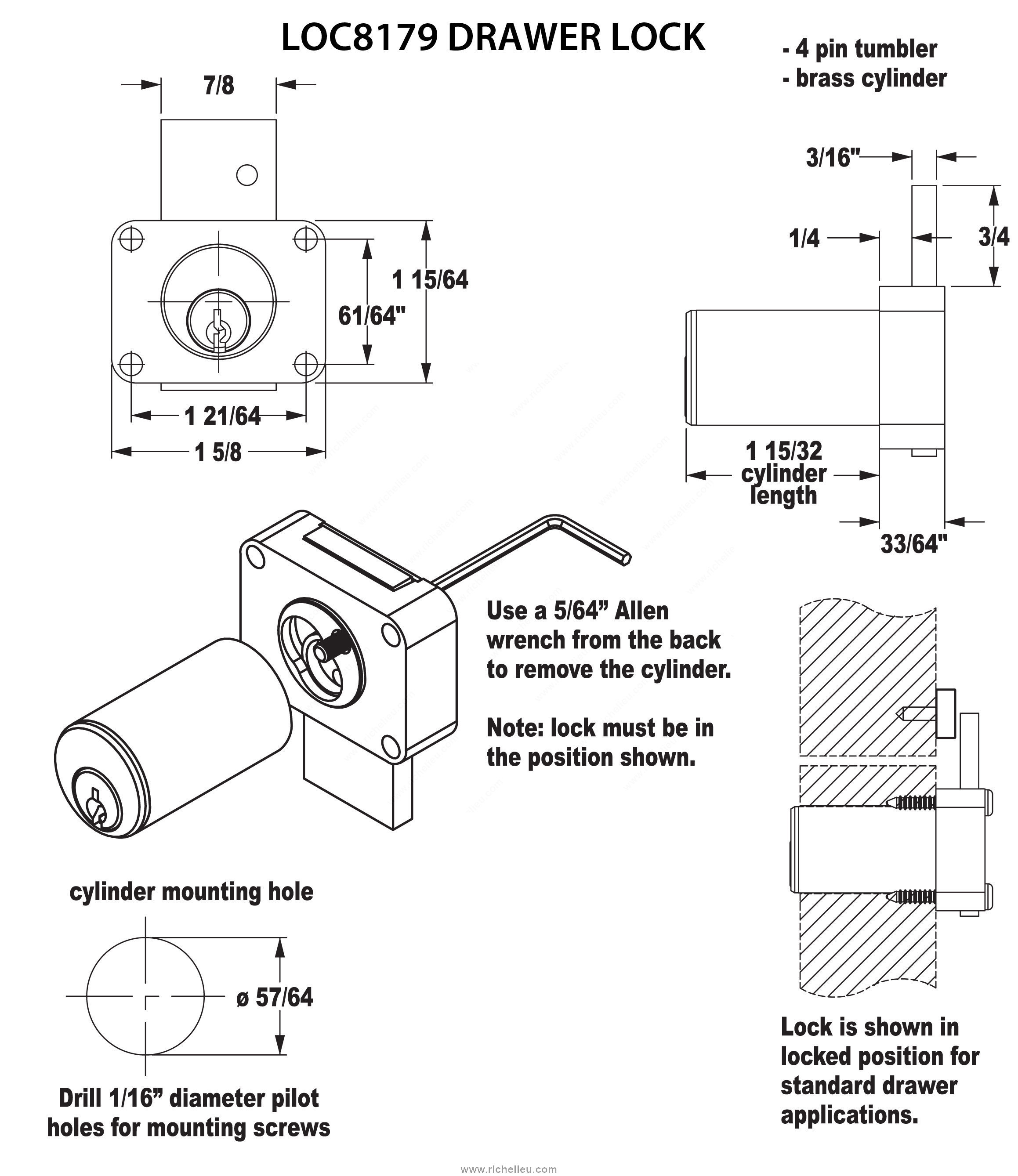

Drawer Locks - C8178 and C8179
Application: Single Drawer
Bolt Travel: 3/4 in
Brand: Compx Locks
Cylinder Diameter: 57/64 in
Cylinder Length: 1 3/8 in
Finish: Brushed Chrome
Key Type: Keyed Alike #103
Material: Brass
Mechanism Type: Pin
Panel Thickness: 6 to 35 mm
Position: Vertical
Product #: LOC817910326D
Product number: LOC817910326D
Product №: LOC817910326D
Security Level: High
Standards and Certifications: ANSI/BHMA Grade 2
Types of Locks: Deadbolt Locks
Unit 1: carton - 10
Use: Single Drawer
