ABH 18200-3 Solid Round Edge Pull, 3" L w/ Bent Edge, Satin Stainless SteelThe ABH 18200-3 Solid Round Edge Pull is an exceptional choice for architects, contractors, and facility managers seeking durable and aesthetically pleasing door hardware. This 3-inch long pull features a bent edge design that seamlessly integrates into various door styles, ensuring a secure grip and easy operation. Crafted from high-quality stainless steel, 0.0625 inches thick, this pull promises long-lasting performance even in high-traffic environments.
With a satin stainless steel finish (US32D), the 18200-3 not only enhances the visual appeal of any entryway but also provides excellent resistance to corrosion and wear. The customizable rounded edge pull series allows for back portion designs that can bend around or mortise into the back of the door, ensuring robust installation and functionality.
Available in multiple lengths from 2 to 10 inches and various rounded edge diameters-1/4", 5/16", 3/8", and 1/2"-this hardware can be tailored to meet specific project requirements. The inclusion of #6 x 5/8" screws ensures a secure mounting, making this pull ideal for both commercial and institutional applications. Compliance with industry standards and the option for custom finishes further enhance its suitability for any architectural vision.
Customizable rounded edge pull series with back portion design and variable dimensions for secure door edge mounting applications.
18200-3: Solid Round Edge Pull, 3" L w/ Bent Edge
Key Features
- Back Portion Design
- Square (S) or Bevel (B) opton
Specifications
| Model | 18200-3 |
|---|
| Finish | Satin Stainless Steel |
|---|
| Finish Code | US32D |
|---|
| Family | 18200 |
|---|
| Material | Stainless steel 0.0625" thick |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, S4/BSPC, S8/WSPC, Custom Finishes Available |
|---|
| Length Options | 2" to 10" in 1" increments (See Cut Sheet) |
|---|
| Model Options | 18200-2 (2"), 18200-3 (3"), 18200-4 (4"), 18200-5 (5"), 18200-6 (6"), 18200-7 (7"), 18200-8 (8"), 18200-9 (9"), 18200-10 (10") |
|---|
| Back Portion | 0.281" wide bends around or mortises in back of door |
|---|
| Width Options | Up to 4.5" (to accommodate door thickness) |
|---|
| Rounded Edge Diameter | 1/4", 5/16", 3/8", 1/2" options |
|---|
| Fasteners | #6 x 5/8" screws |
|---|

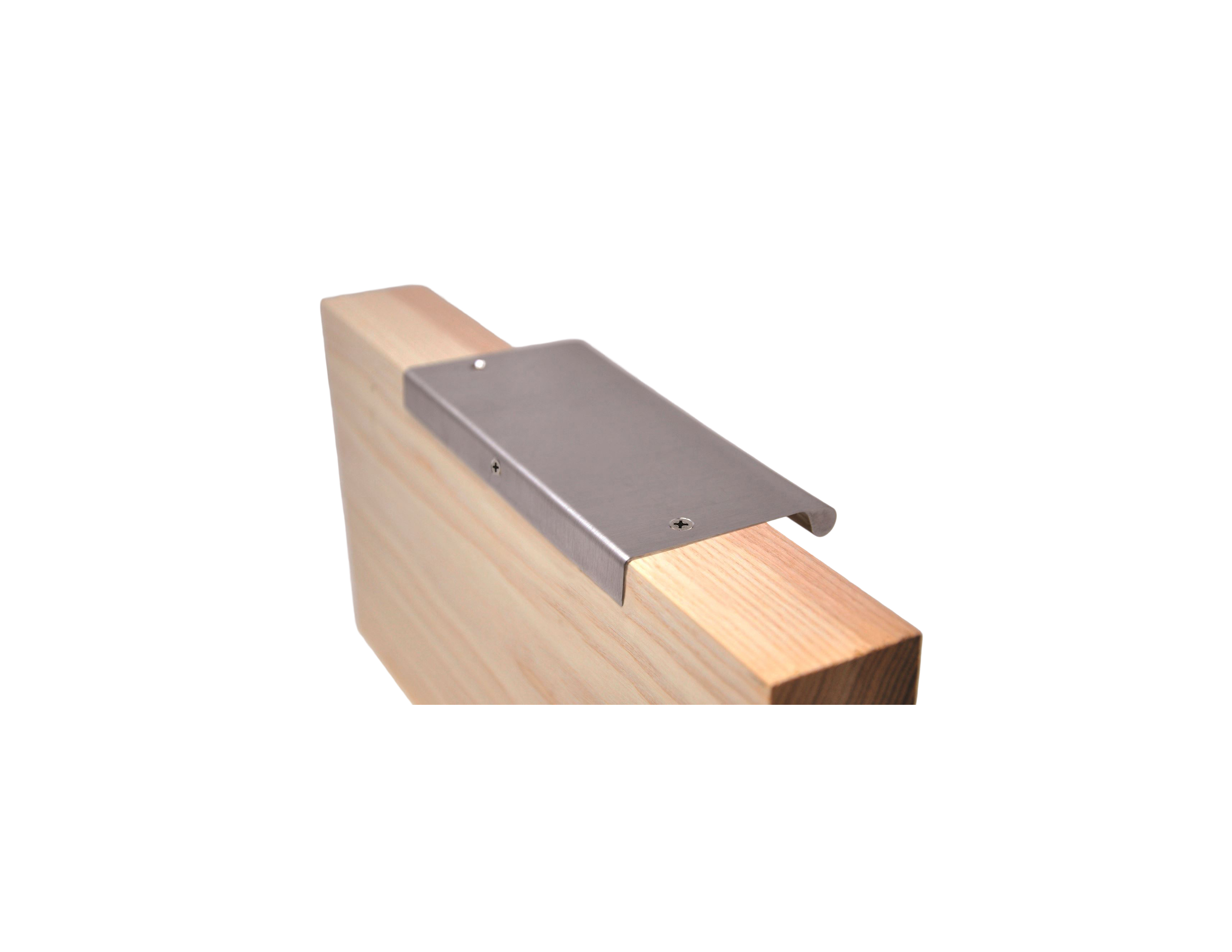

Back portion design provides secure mounting with portion extending behind door.
Features
- Back Portion Design
- Square (S) or Bevel (B) opton
Attributes
BRAND_ NAME: ABH
Back Portion: 0.281" wide bends around or mortises in back of door
Family: 18200
Fasteners: #6 x 5/8" screws
Finish: Satin Stainless Steel
Finish Code: US32D
Finishes: US3, US4, US9, US10, US10B, US32, US32D, S4/BSPC, S8/WSPC, Custom Finishes Available
Length Options: 2" to 10" in 1" increments (See Cut Sheet)
Material: Stainless steel 0.0625" thick
Model: 18200-3
Model Options: 18200-2 (2"), 18200-3 (3"), 18200-4 (4"), 18200-5 (5"), 18200-6 (6"), 18200-7 (7"), 18200-8 (8"), 18200-9 (9"), 18200-10 (10")
Rounded Edge Diameter: 1/4", 5/16", 3/8", 1/2" options
Width Options: Up to 4.5" (to accommodate door thickness)
