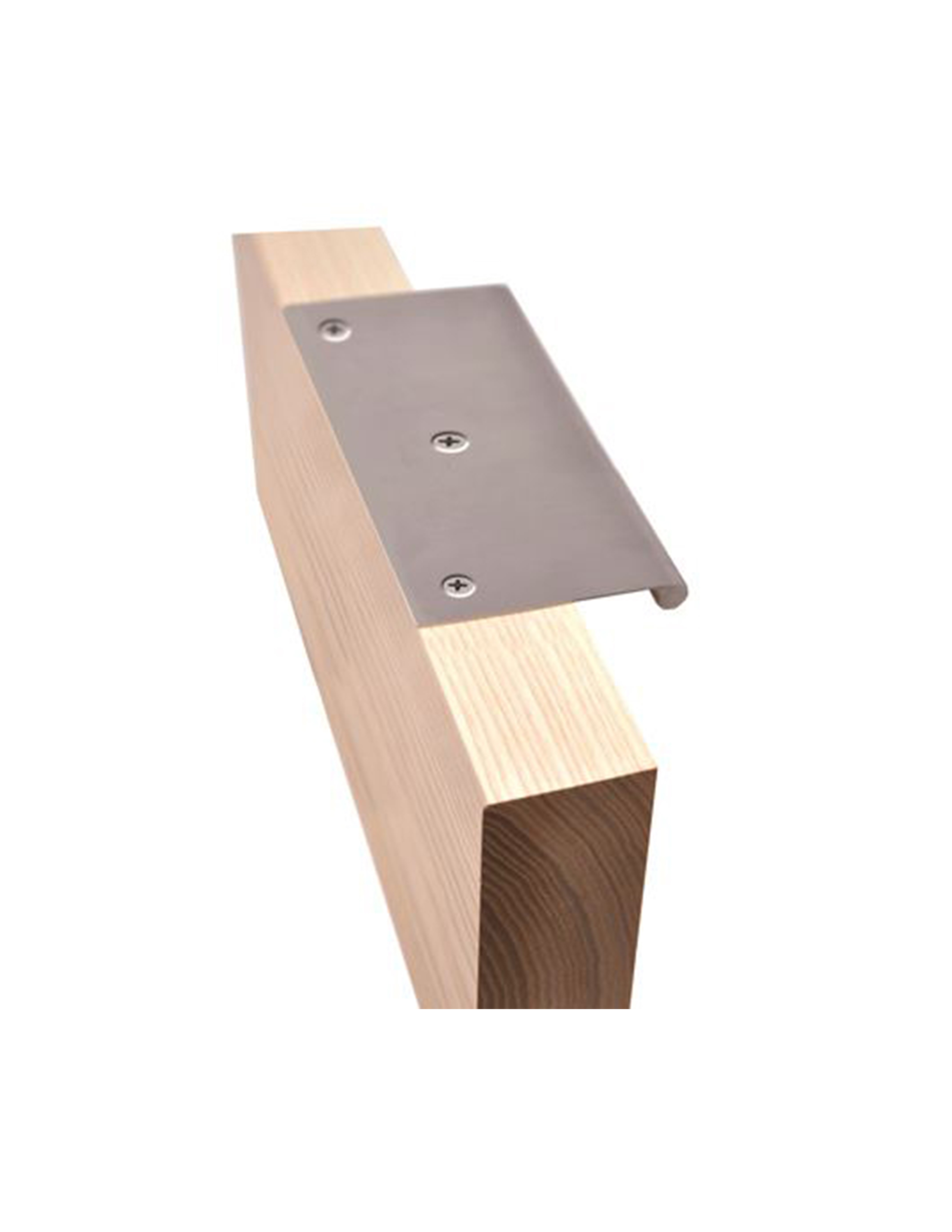

ABH 18300-2 Solid Round Edge Pull, 2" L w/ Straight Edge, Satin Stainless SteelThe ABH 18300-2 Solid Round Edge Pull is an exemplary choice for architects, contractors, and facility managers seeking durable and customizable door hardware. Crafted from high-quality stainless steel with a thickness of 0.0625", this edge pull ensures longevity and reliability in high-traffic environments.
Designed for surface mounting, the 18300-2 model features a clean, straight edge that seamlessly integrates into any standard door edge application. With a length of 2 inches, it provides a practical solution for doors while maintaining an elegant aesthetic. Additionally, the product is available in a variety of lengths (from 2" to 10") and widths (up to 4.5"), allowing for tailored installations to meet specific project requirements.
The satin stainless steel finish (US32D) not only enhances the pull's visual appeal but also provides resistance to corrosion and wear, making it ideal for both interior and exterior applications. The rounded edge options (1/4", 5/16", 3/8", 1/2") cater to diverse design preferences, while the availability of square (S) or bevel (B) profiles further adds to customization opportunities.
Compliant with industry standards, the ABH 18300-2 Solid Round Edge Pull is a reliable addition to any commercial project.
Customizable rounded edge pull series with surface mounting and variable dimensions for standard door edge applications.
18300-2: Solid Round Edge Pull, 2" L w/ Straight Edge
Key Features
- Surface mounted (no back portion)
- Customizable Dimensions
- Square (S) or Bevel (B) opton
Specifications
| Model | 18300-2 |
|---|
| Finish | Satin Stainless Steel |
|---|
| Finish Code | US32D |
|---|
| Family | 18300 |
|---|
| Material | Stainless steel 0.0625" thick |
|---|
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, S4/BSPC, S8/WSPC, Custom Finishes Available |
|---|
| Length Options | 2" to 10" in 1" increments (See Cut Sheet) |
|---|
| Width Options | Up to 4.5" (to accommodate door thickness) |
|---|
| Rounded Edge Diameter | 1/4", 5/16", 3/8", 1/2" options |
|---|
| Fasteners | #6 x 5/8" screws |
|---|
| Model Options | 18300-2 (2"), 18300-3 (3"), 18300-4 (4"), 18300-5 (5"), 18300-6 (6"), 18300-7 (7"), 18300-8 (8"), 18300-9 (9"), 18300-10 (10") |
|---|
Surface mounted design for standard door edge applications.
Features
- Surface mounted (no back portion)
- Customizable Dimensions
- Square (S) or Bevel (B) opton
Attributes
BRAND_ NAME: ABH
Family: 18300
Fasteners: #6 x 5/8" screws
Finish: Satin Stainless Steel
Finish Code: US32D
Finishes: US3, US4, US9, US10, US10B, US32, US32D, S4/BSPC, S8/WSPC, Custom Finishes Available
Length Options: 2" to 10" in 1" increments (See Cut Sheet)
Material: Stainless steel 0.0625" thick
Model: 18300-2
Model Options: 18300-2 (2"), 18300-3 (3"), 18300-4 (4"), 18300-5 (5"), 18300-6 (6"), 18300-7 (7"), 18300-8 (8"), 18300-9 (9"), 18300-10 (10")
Rounded Edge Diameter: 1/4", 5/16", 3/8", 1/2" options
Width Options: Up to 4.5" (to accommodate door thickness)
