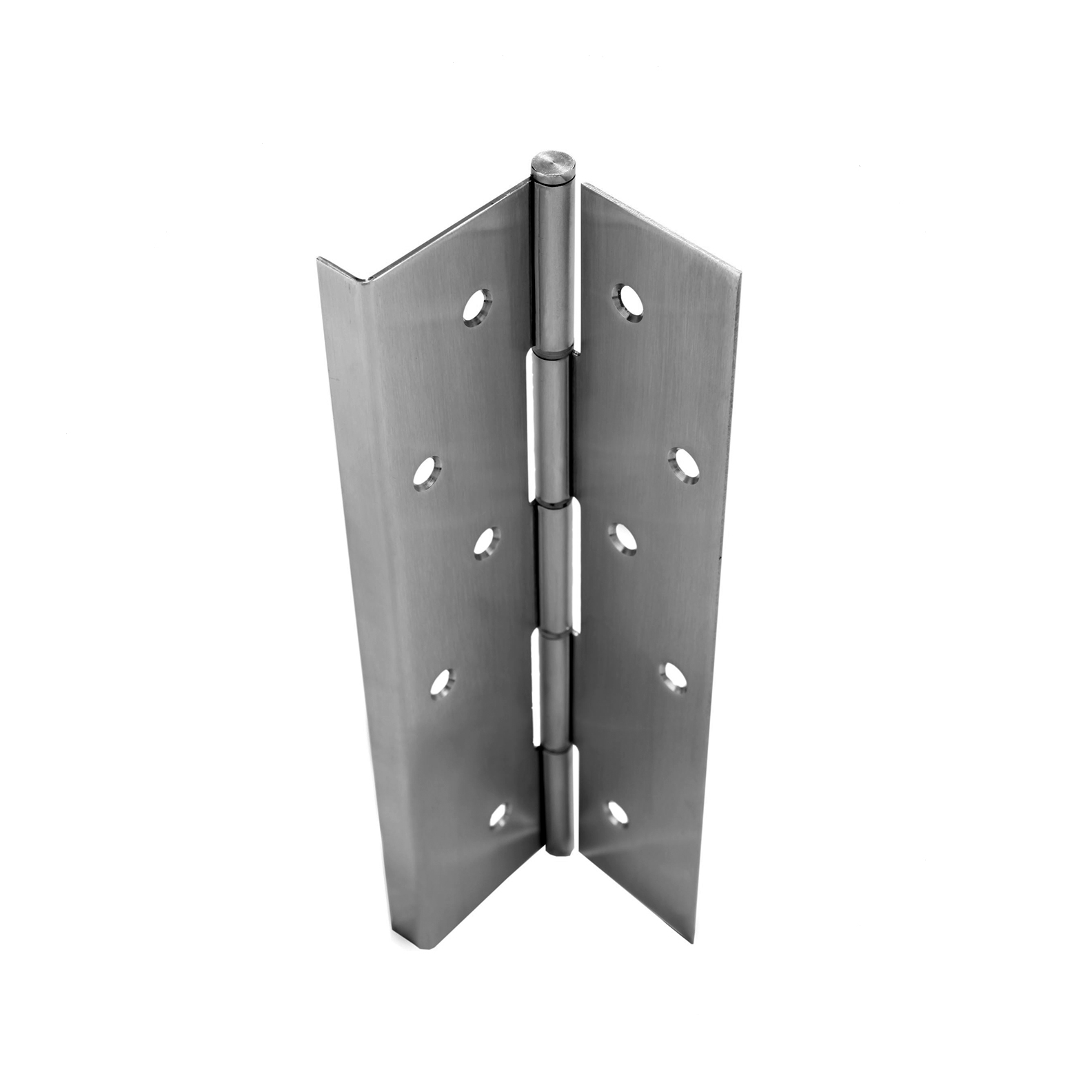

ABH A515078 Full Mortise Stainless Steel Pin Barrel Continuous Hinge, Satin Stainless SteelThe ABH A515078 Full Mortise Stainless Steel Pin Barrel Continuous Hinge is expertly designed for heavy-duty applications, offering a full concealed, flush mount configuration that ensures a sleek aesthetic while maximizing security and functionality. This innovative hinge features an edge guard on the stop side, providing targeted protection against wear and tear, making it ideal for high-traffic environments in commercial and institutional settings.
Constructed from robust stainless steel, this hinge boasts a 14-gauge thickness, ensuring durability and a remarkable load capacity of up to 600 lbs. Designed with no inset, it seamlessly integrates into the doorframe, enhancing both the design and performance of your door systems. The satin stainless steel finish (US32D) not only adds a modern touch but also ensures resistance to corrosion and tarnishing.
Certified with UL ratings for fire door assemblies (20 min for wood, 90 min for composite/hollow metal, and 3 hr for hollow metal), this hinge offers peace of mind in compliance with safety standards. Installation is straightforward, thanks to included 10-24 x 3/4" undercut self-drilling stainless steel screws and #10 x 1-1/4" undercut wood screws. The A515078 hinge is available in standard lengths of 78¾", 83⅛", 85", 95", and 118¾", ensuring versatility for various door sizes.
Full concealed heavy duty stainless steel pin and barrel continuous hinge with flush mount design and door edge guard on stop side providing targeted protection.
A515078: Full Concealed, No Inset, Flush Mount, Door Edge Guard, (Stop Side Only)
Key Features
- Full Concealed Design
- 14 Gauge
- Edge Guard Stop Side
- Flush Mount Design
Specifications
| Model | A515078 |
|---|
| Finish | Satin Stainless Steel |
|---|
| Finish Code | US32D |
|---|
| Length (in) | 78.75 |
|---|
| Family | A515 |
|---|
| Material | Stainless steel pin and barrel |
|---|
| Finishes | US32, US32D, Custom Finishes Available |
|---|
| Standard Lengths | 78¾", 83⅛", 85", 95", 118¾" |
|---|
| Door Inset | No inset, flush mount |
|---|
| Edge Protection | Door edge guard on stop side only |
|---|
| Load Capacity | 600 lbs. door weight maximum |
|---|
| Door Width | 48" maximum |
|---|
| Weight | 13 lbs. average per unit |
|---|
| Fasteners | 10-24 x 3/4" undercut self-drilling stainless steel screws, #10 x 1-1/4" undercut wood screws stainless steel |
|---|
| Fire Rating | UL Listed for Fire Door Assemblies - 20 min (wood), 90 min (composite/hollow metal), 3 hr (hollow metal) |
|---|
Full concealed heavy duty with targeted edge protection on stop side.
Features
- 14 Gauge
- Flush Mount Design
- Edge Guard Stop Side
- Full Concealed Design
Attributes
BRAND_ NAME: ABH
Door Inset: No inset, flush mount
Door Width: 48" maximum
Edge Protection: Door edge guard on stop side only
Family: A515
Fasteners: 10-24 x 3/4" undercut self-drilling stainless steel screws, #10 x 1-1/4" undercut wood screws stainless steel
Finish: Satin Stainless Steel
Finish Code: US32D
Finishes: US32, US32D, Custom Finishes Available
Fire Rating: UL Listed for Fire Door Assemblies - 20 min (wood), 90 min (composite/hollow metal), 3 hr (hollow metal)
Length (in): 78.75
Load Capacity: 600 lbs. door weight maximum
Material: Stainless steel pin and barrel
Model: A515078
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard Lengths: 78¾", 83⅛", 85", 95", 118¾"
Weight: 13 lbs. average per unit
