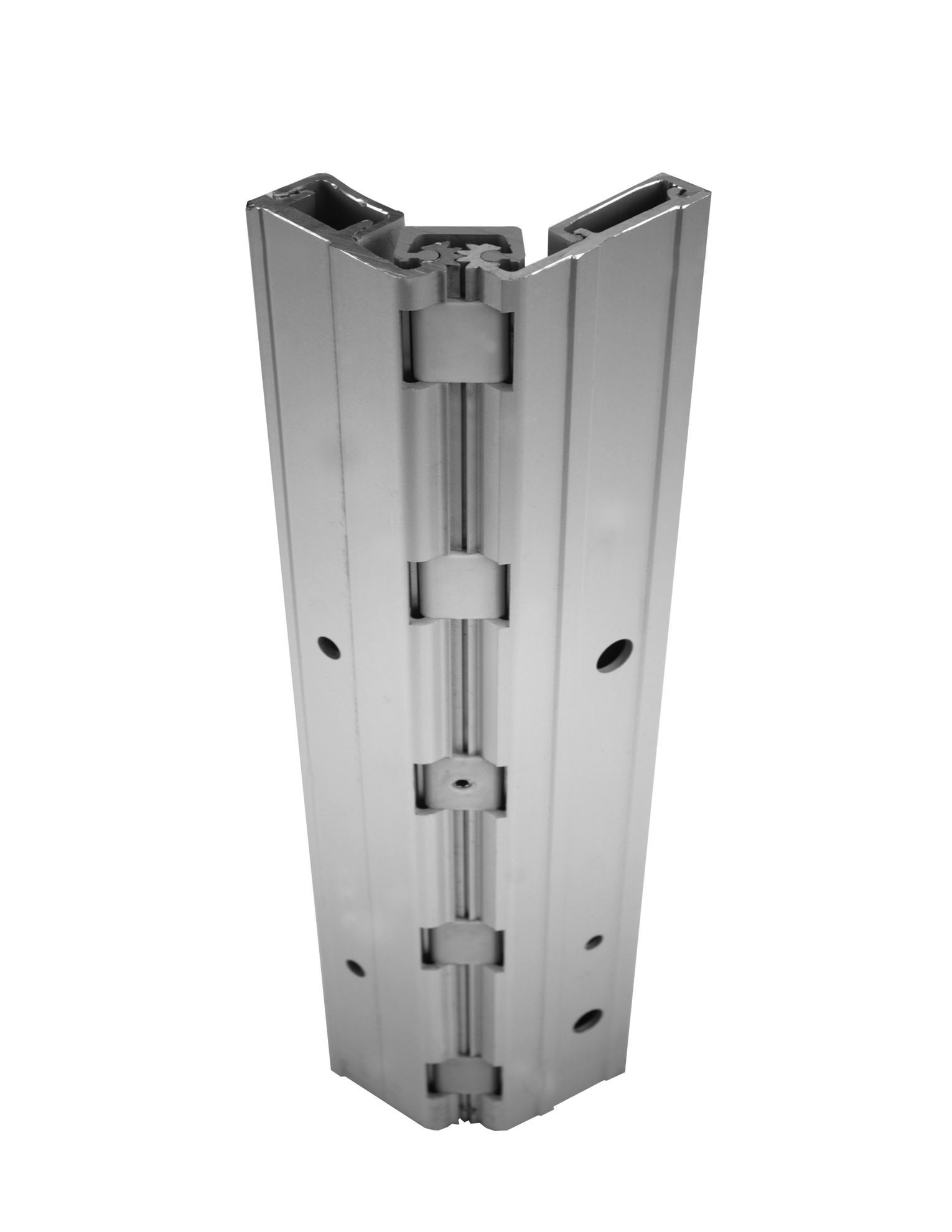

ABH A570HD085 Full Surface Aluminum Continuous Geared Hinge - 1/16" Inset, Clear Anodized AluminumThe ABH A570HD085 Full Surface Aluminum Continuous Geared Hinge is expertly engineered for narrow frame applications, accommodating a 1/16" door inset for seamless integration. This hinge is crafted from premium aluminum and finished in Clear Anodized Aluminum (US28), providing both durability and aesthetic appeal, making it an ideal choice for modern architectural designs.
Rated as BHMA Grade 1, the A570HD085 hinge guarantees superior performance, suitable for high-traffic environments with a load capacity of up to 450 lbs. This ensures reliable operation and longevity, even under demanding conditions. With a maximum door width of 48 inches, this hinge is versatile enough to meet various project requirements.
Compliance with fire safety standards is another critical feature; the hinge is rated for 90 minutes with metal doors and 60 minutes with wood doors, with an option for enhanced fire rating. Installation is streamlined with the included fasteners, consisting of 12-24 x 1" Phillips pan head self-drilling screws for the frame and 1/4-20 x 1-1/4" sex bolts for the door.
Choose the ABH A570HD085 for a reliable, aesthetically pleasing hinge solution that meets the highest standards of quality and performance in commercial door hardware.
BHMA Grade 1 full surface hinge with narrow frame leaf design and 1/16" door inset for narrow-faced frame applications.
A570HD085: 1/16" Inset, Narrow Frame
Key Features
- BHMA Grade 1
- Full Surface Narrow Frame Leaf
- Narrow-faced Frames
Specifications
| Model | A570HD085 |
|---|
| Finish | Clear Anodized Aluminum |
|---|
| Finish Code | US28 |
|---|
| Length (in) | 85 |
|---|
| Family | A570HD |
|---|
| Material | Aluminum |
|---|
| Finishes | US28 (Clear), 314 (Dark Bronze), 315 (Black), Custom Finishes Available |
|---|
| Standard Lengths | 79", 83", 85", 95", 120" (custom available) |
|---|
| Door Inset | 1/16" inset |
|---|
| Load Capacity | 450 lbs. door weight maximum |
|---|
| Door Width | 48" maximum |
|---|
| Weight | 11 lbs. average per unit |
|---|
| Fasteners | Frame: 12-24 x 1" Phillips pan head self-drilling screws, Door: 1/4-20 x 1-1/4" sex bolts and shoulder bolts (included) |
|---|
| Fire Rating | Metal doors: 90 min (3 hr with FR option), Wood doors: 60 min (90 min with FR option) |
|---|
Reinforcement: Not required up to 200 lbs. 12 gauge door plate/16 gauge frame channel recommended for heavier doors.
Features
- Full Surface Narrow Frame Leaf
- BHMA Grade 1
- Narrow-faced Frames
Attributes
BRAND_ NAME: ABH
Door Inset: 1/16" inset
Door Width: 48" maximum
Family: A570HD
Fasteners: Frame: 12-24 x 1" Phillips pan head self-drilling screws, Door: 1/4-20 x 1-1/4" sex bolts and shoulder bolts (included)
Finish: Clear Anodized Aluminum
Finish Code: US28
Finishes: US28 (Clear), 314 (Dark Bronze), 315 (Black), Custom Finishes Available
Fire Rating: Metal doors: 90 min (3 hr with FR option), Wood doors: 60 min (90 min with FR option)
Length (in): 85
Load Capacity: 450 lbs. door weight maximum
Material: Aluminum
Model: A570HD085
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard Lengths: 79", 83", 85", 95", 120" (custom available)
Weight: 11 lbs. average per unit
