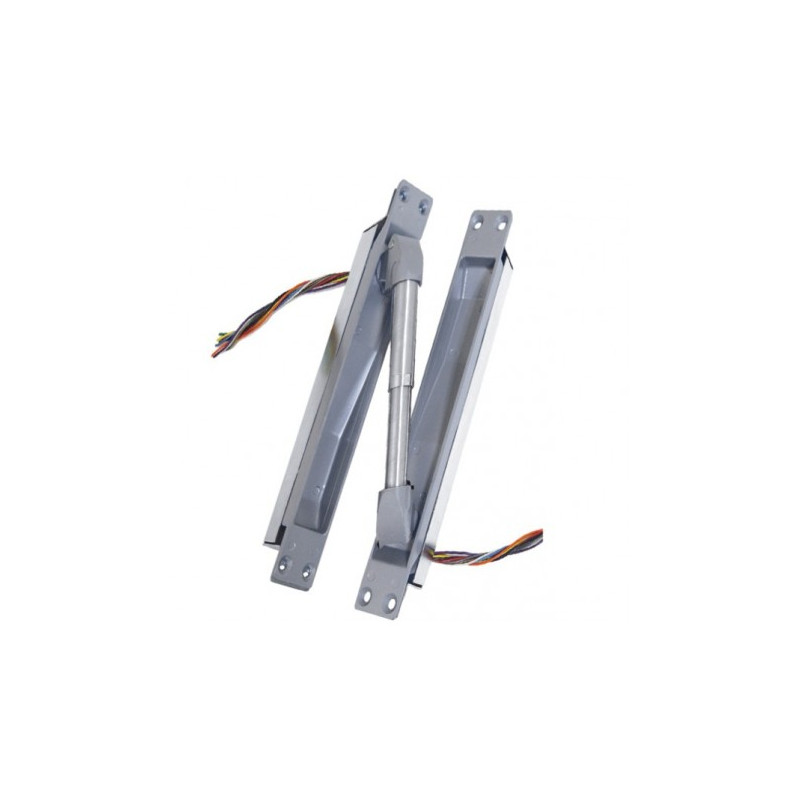

ABH PT1000US28 Electrical Power Transfer (EPT) 10 Wires, 628/US28 Satin Aluminum

Features:

• PT1000 & PT200 provide the means of transferring electrical power & data from the frame to the door in a secure and discreet manner.
• Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.
• All metal construction including backboxes - No Plastic Parts
• Ideal for high abuse or heavy traffic situations
• UL/ULC Listed for use on fire doors
• Packaged individually with fasteners for wood, steel, or aluminum doors and frames
• Approximate Shipping Weight: 3lbs
• Matches competitor's door and frame prep

Standard Applications:

• 1-3/4" Door thickness
• Cam lift hinges (up to 1/2" lift) - allowing for 180° door swing
• Butt hinges up to 5" - allowing for 180° door swing
• 5-1/2" butt hinges - allowing for 130° door swing
• 6" butt hinges - allowing for 110° doo swing
• Up to 3/4" offset pivots allowing for 180° door swing
• Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots or center hung doors

Finishes:

• US28/628 - Satin Aluminum
• S2 - Painted Brass (to match US4)
• S3 - Painted Bronze (to match US10)
• S4 - Painted Black
• S5 - Painted Dark Bronze (to match US10B)
• S8 - Painted White

• Door Thickness – 1-3/4"
• Butt Hinges up to 5" - Allowing for 180° Door Swing
• 5-1/2" Butt Hinges – Allowing for 130° Door Swing
• 6" Butt Hinges – Allowing for 110° Door Swing
• Up to 3/4" Offset Pivots – Allowing for 180° Door Swing

Features

• PT1000 & PT200 provide the means of transferring electrical power & data from the frame to the door in a secure and discreet manner.
• Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.
• All metal construction including backboxes - No Plastic Parts
• Ideal for high abuse or heavy traffic situations
• UL/ULC Listed for use on fire doors
• Packaged individually with fasteners for wood, steel, or aluminum doors and frames
• Approximate Shipping Weight: 3lbs
• Matches competitor's door and frame prep
