Accentura 7100(F) Rim Exit Device offers robust security and reliability for both commercial and residential applications. This heavy-duty exit device is crafted from high-quality steel, ensuring long-lasting performance in high-use areas. Designed to accommodate single or double doors made from metal, wood, or composite materials, the 7100(F) is versatile enough to fit various openings and styles. With a sleek design and clean lines, this exit device complements the aesthetics of modern buildings while providing essential life safety features. It supports a range of mechanical and electromechanical options, making it compatible with existing security systems. The device is ANSI/BHMA Grade 1 certified, guaranteeing exceptional strength and security. Installation is straightforward due to its non-handed design, suitable for door widths from 24" to 48", with a minimum stile width of 4-1/2". The 7100(F) comes with multiple trim options to customize its appearance, ensuring it fits seamlessly into any decor. Additionally, it includes a 5-year limited mechanical warranty, a 1-year trim warranty, and a 2-year warranty on electrical components, providing peace of mind for building professionals and homeowners alike. Choose the Accentra 7100(F) for a secure, stylish, and functional exit solution.

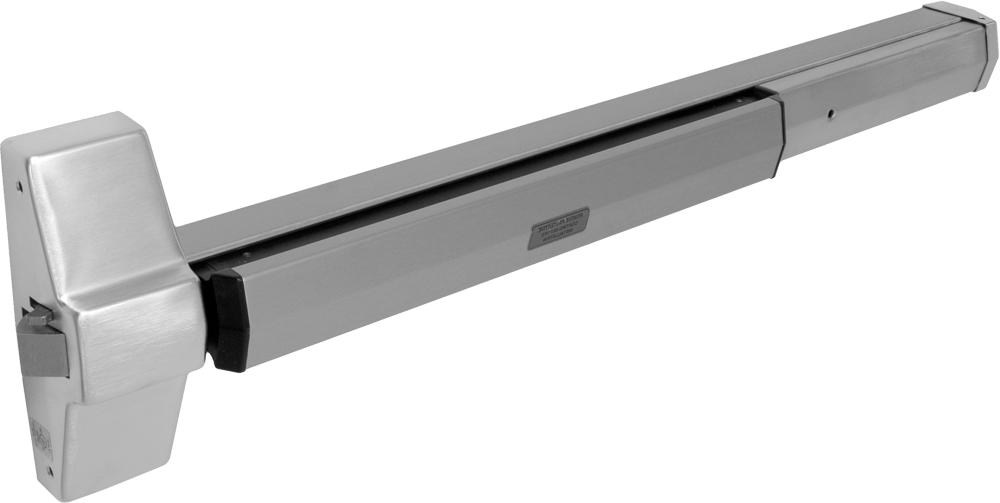

Fire Rated Rim Exit Device, Less Trim, No Dogging, 36in, Grade 1, 630/US32D Stainless Steel

The 7100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. Designed for application in high-use areas, the 7100(F) comes in a variety of finishes and can be combined with a variety of trims to match any desired style.

Features:

• High quality steel chassis and heavy-duty components
• Full range of mechanical and electromechanical options to suit any life safety application and pair with existing security systems
• Available with various configurations including rim, square bolt, surface/ concealed vertical rod, to suit any opening
• Sleek design and clean lines suit the appearance of many modern commercial buildings
• Heavy-duty steel components are ANSI/BHMA grade 1 certified for the ultimate in strength and security
• Various options available to customize this exit device to suit any opening
• 5-year mechanical warranty, 1-year trim warranty, 2-year warranty on electrical options and components
• Sleek design with a variety of attractive finish options to suit any decor

Applications:

• Non-handed for easy installation
• Single swing doors
• Pairs of doors with removable mullions
• Metal, wood or composite door materials

Specifications:

• Door Opening Width:
• -24 for 24" (60cm) doors
• -36 for 30" - 36" (76cm - 91cm) doors
• -48 for 36" - 48" (91cm - 122cm) doors
• Minimum Stile Width: 4-1/2" (114mm)
• Door Thickness (Standard): 1-3/4" (44mm) standard. Optional door thicknesses available to 4-1/2"; specify door thickness when ordering
• Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
• Latchbolt: 3/4" (19mm) deadlocking stainless steel pullman-type
• Strike: 757F, 793 optional (double door application, panic only
• Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
• Trims: 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim, 121NL cylinder only.
• ANSI/BHMA: Certified A156.3 type 1, grade 1
• Dogging: Hex key dogging supplied standard on panic devices
• Options: Cylinder dogging, shim kit #723, sex nuts and bolts, MicroShield, Lumi-lite
• Warranty: 5-year limited

Mechanical Functions:

• Exit Only/Blank Plate: Exit only, no trim or blank escutcheon, ANSI No. 01
• Dummy: Entrance by trim when actuating bar is locked down, ANSI No. 02
• Nightlatch: Entrance by trim when latch is retracted by key. Key removable only when locked, ANSI No. 03
• Classroom: Entrance by thumb piece. Key locks or unlocks thumb piece, ANSI No. 05
• Storeroom: Entrance by thumb piece only when released by key. Key removable only when locked, ANSI No. 06
• Classroom: Entrance by knob or lever. Key locks or unlocks knob or lever, ANSI No. 08
• Storeroom: Entrance by knob or lever only when released by key. Key removable only when locked, ANSI No. 09
• Classroom: Entrance by control turnpiece. Key locks or unlocks control, ANSI No. 11
• Storeroom: Entrance by control turnpiece only when released by turning key. Key removable only when locked, ANSI No. 12
• Passage: Entrance by trim when latch is released by knob or lever. Always active, no cylinder, ANSI No. 14
• Passage: Entrance by trim when latch is released by thumb piece. Thumb piece always active, no cylinder. ANSI No. 15
• Passage: Entrance by trim when latch is released by control turnpiece. Turnpiece always active, no cylinder. ANSI No. 16

Mechanical Feature:

• F: Fire exit device
• M: Narrow escutcheon trim in 4-1/2" (114mm) or wider door stile
• LBR: Less bottom rod
• L5: Mortise device, entry by key with/without rigid lever
• L8: Mortise device, entry by lever
• T5: Mortise device with thumbpiece trim
• T8: Mortise device, active thumbpiece trim
• 2: Double cylinder device
• WS: Windstorm certified products
• 5CH: 5LB pressure release

Electrical Feature:

• -A: Alarm kit
• -B: Bar monitor or signaling
• -D: Delayed egress
• -O: Outside trim monitor or signaling
• -MELR: Motorized electric latch retraction
• -S: Latchbolt status monitor or signaling
• -Safe: Mortise device trim control (lever only)
• -Secure: Mortise device

Finishes:

• 605 - Bright brass
• 611 - Bright bronze
• 612 - Satin bronze
• 613E - Dark oxidized satin bronze
• 619 - Satin nickel plated,
• 629 - Bright stainless steel
• 630 - Satin stainless steel
• 693 - Black painted
• BSP - Black suede powder coat
• WSP - White suede powder coat

Resources

• Cut Sheet
