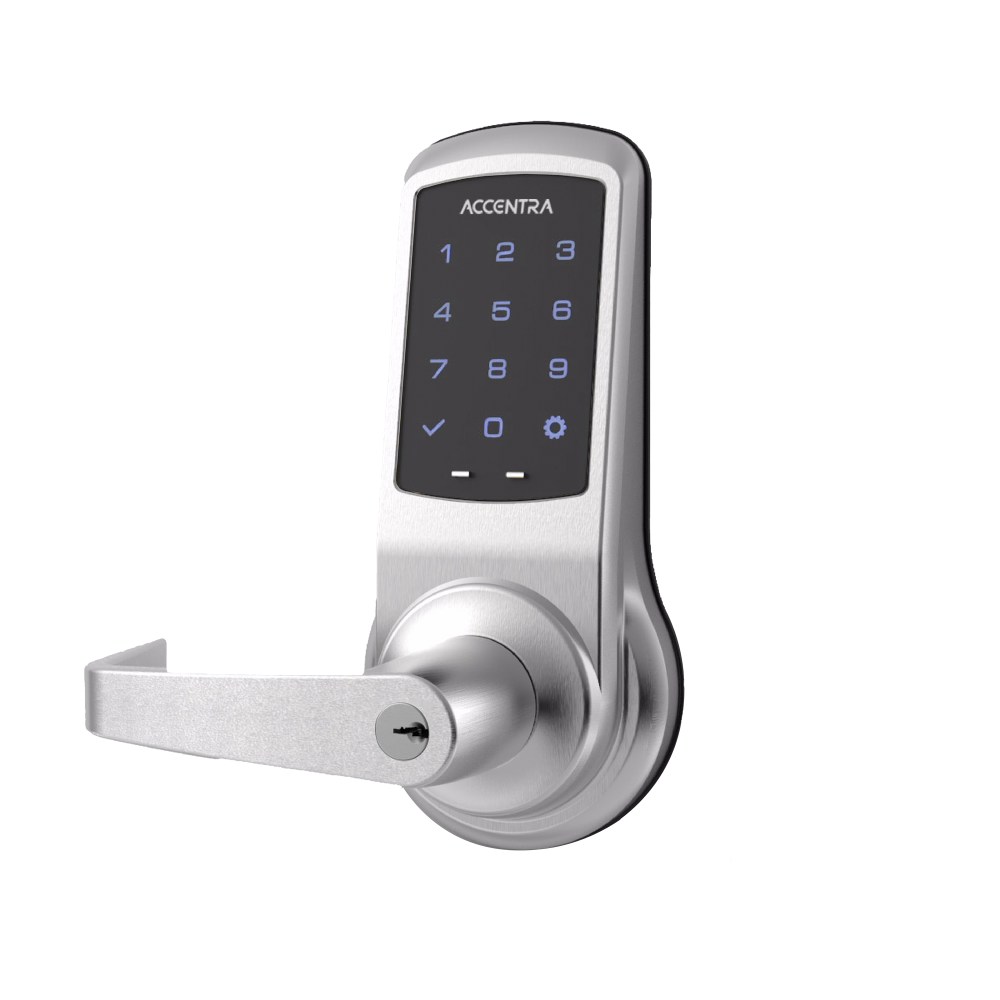

Accentra AU-NTB623-NR 626 100CV1 Grade 1 nexTouch Cylindrical LockYale AU-NTB623-NR 626 100CV1 Grade 1 NexTouch Cylindrical Lock offers a perfect blend of modern design and robust security. Featuring a capacitive touchscreen keypad, this Grade 1 lock is engineered for durability and reliability, making it an excellent choice for various applications, including multi-family properties, small businesses, and commercial buildings. With its satin chrome finish and Augusta lever, the lock not only enhances security but also complements the aesthetics of any entryway. Designed with versatility in mind, the NexTouch allows for upgrades to advanced security technologies as needed. This lock supports up to 100 user codes, ensuring easy management of access for both staff and visitors. The modular technology also enables compatibility with Data-on-Card or ZigBee/ZWave wireless systems, adapting to evolving security needs. The lock's non-handed design and ANSI/BHMA Grade 1 certification guarantee its reliability and longevity. Privacy mode can be quickly enabled, and a 9V battery backup ensures functionality even during power failures. Ideal for management offices, restrooms, and storage areas, the Yale NexTouch Cylindrical Lock stands out as a strong, key-free solution for maintaining security and convenience in any commercial setting.
Grade 1 nexTouch Cylindrical
Grade 1 nexTouch Generation 3 Cylindrical Lock with Capacitive Touchscreen Keypad, No Deadbolt With Cylinder Override, Conventional Cylinder, Arrow AR Keyway, Augusta Lever, Satin Chrome Finish, Non-Handed
Unlock what's next in security with NexTouch commercial keypad door locks from Yale. The NexTouch keyless electronic door lock combines a modern look with durability that is perfect for your multi-family property, small business office space, retail storefront, hotel, airport, restroom, or mixed-use commercial building. With a heavy-duty design and ANSI/BHMA Grade 1 certification, NexTouch keypad locks provide durable and reliable security from Yale Door Locks - a trusted brand for over 170 years.
Attributes
Access Function: Software Programmable
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA A156.2, Series 4000 Grade 1, A117.1
Application: Capacitive Touchscreen
Baa Qualified: Yes
Base Series: NexTouch
Bolt Projection: 1/2"
Cam Number: 2160
Commercial Residential: Commercial
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4"
Finish: 626/US26D
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours
Function: No Deadbolt With Cylinder Override
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Keying: Keyed Different
Keypad Type: Capacitive Touchscreen
Keys: Cut
Latch Backset Dim: 2-3/4"
Latch Backset Dimension: 2-3/4"
Latch Bore Diameter: 1"
Leverknob Design: AU - Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Of Keys: 2
Operating Voltage: 4 AA Batteries
Pack Qty: 1
Pins: 6
Power: Battery Pack
Projection: 2-1/4"
Reader Technology: Keypad Only
Roseescutcheon Dimensions: 2-9/16" Diameter
Series: ACCENTRA nexTouch Stand-Alone Locks
Series Name: NexTouch (Generation 3)
Software: Accentra
Std Keyway: AR
Std Latch Number: 694
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI
Std Strike Width: 1-1/4"
Subtype: Cylindrical Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Wireless: No
