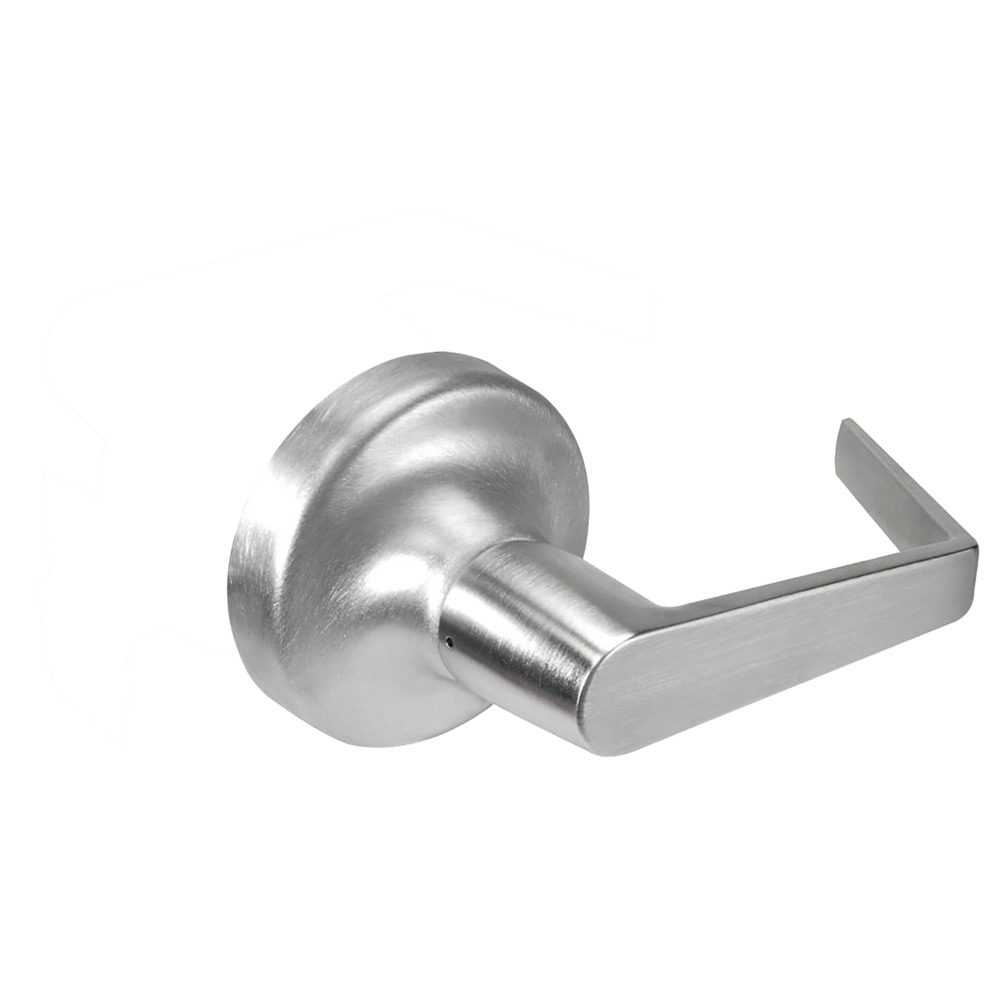

Yale AU355LN 626 Grade 2 Single Dummy Trim offers a perfect blend of durability and style for commercial applications. Featuring the sleek Augusta lever design, this non-keyed trim is finished in a sophisticated satin chrome that complements any décor. Its innovative vandal-resistant Free Wheeling lever mechanism ensures increased security, making it an ideal choice for high-traffic areas. Installation is made simple with adjustable door thickness capabilities, accommodating doors from 1-3/4" to 2" thick, and special orders available for 1-3/8" and 2-1/4" thicknesses. The through-bolting feature provides a secure fit that resists shaking and rattling, enhancing stability. The unit is designed for ANSI/BHMA door prep A156.115 "Spider Cut Out" and includes a 3-1/2" rose for a polished appearance. Available in 13 finishes and three lever designs, the AU355LN allows you to customize your hardware to match your specific project needs. With a lifetime warranty against lever sag and lever spring breakage, you can trust in the quality and performance of this Grade 2 lockset. Designed and manufactured in the United States, this trim is a reliable choice for any commercial door hardware solution.
This revolutionary Grade 2 lockset boasts design features such as a vandal resistant Free Wheeling lever mechanism and adjustable door thickness that makes installation a breeze. Through bolting gives the 5300LN a secure fit that resists shaking and rattling. With three lever designs and twelve different finishes, you have the ability to match any decor.
Attributes
Base Material: Brass, Bronze
Box Depth Fraction: 10"
Box Height Fraction: 3-3/4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4" to 2"
Finish: 626/US26D
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 55-Single Dummy Trim
Function Family: Dummy
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: Augusta
Leverknob Design: AU - Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 5 Year Warranty
Manufacturer Function: Dummy Trim
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 3.75"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 281.25 in³
Pack Width: 7.5"
Product Height: 3.75"
Product Length: 10"
Product Width: 7.5"
Projection: 3-1/2"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: ACCENTRA 5300LN Series Grade 2 Cylindrical Lever Locks
Ship Weight: 4.8 lbs.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
