Accentura 4600LN Cylindrical Lock is designed to meet the needs of various commercial applications, offering a reliable solution that balances quality, ease of installation, and affordability. Certified to ANSI/BHMA grade 2 standards and UL fire-listed for all functions, this lock provides peace of mind and durability for your security needs. One of the standout features of the 4600LN series is its field-reversible handing, allowing for straightforward installation regardless of door orientation. With a selection of five trims and six finishes, this lock can seamlessly integrate into any environment. The ADA-compliant lever enhances accessibility, making it suitable for all users. This lock is UL/cUL fire-rated for up to three hours, ensuring safety in emergencies. Its mechanical components are backed by a three-year warranty, providing added assurance of its reliability. The 4600LN accommodates standard door thicknesses of 1-3/8" to 1-3/4" and offers a robust 1/2" latchbolt throw. Available in multiple functions, including passage, privacy, and entry options, the 4600LN is versatile enough to address diverse security requirements. Choose Accentra 4600LN for a dependable locking solution that combines functionality with style, perfect for any commercial setting.

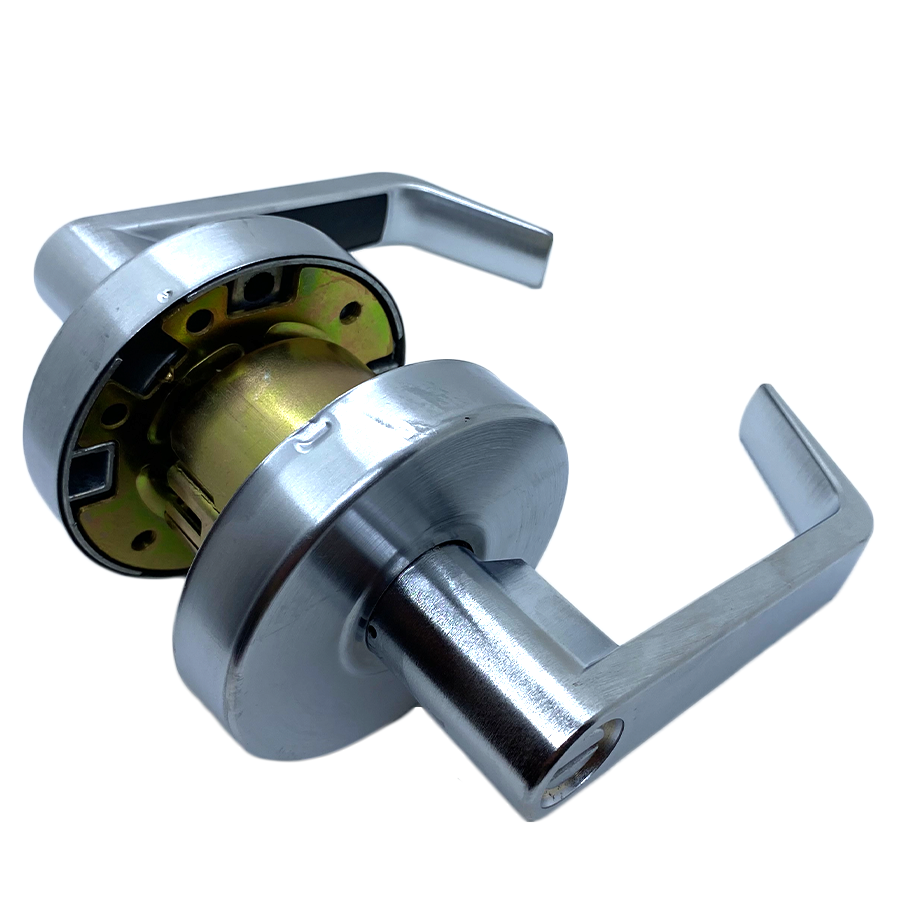

Privacy Augusta Lever Lock, 2-3/4in Backset, ANSI Strike, Grade 2, 626/US26D Satin Chrome

The 4600LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600LN series is certified to ANSI/BHMA grade 2 standards and is UL fire-listed for all functions, ensuring reliability and peace of mind.

Features:

• Field reversible handing for easy installation
• Range of functions and other options for a wide variety of commercial applications
• Available in 5 trims and 6 finishes
• ADA compliant lever for ease of accessibility
• UL/cUL fire rated up to 3-hours
• Field reversible handing and other product options offer flexibility in many commercial applications
• Priced affordably to suit projects of all budgets
• Certified grade 2, ANSI/BHMA A156.2, Series 4000
• Windstorm certified (refer to local codes)
• 3-year mechanical warranty

Specifications:

• Backset Depth (Standard): 2-3/4"
• Cylinder Format: Conventional, small format
• Cylinder Pins: 6 pin
• Door Thickness (Standard): 1-3/4"
• Handing: Non-handed
• Latchbolt Throw: 1/2"
• Maximum Backset: 2-3/4"
• Minimum Backset: 2-3/8"
• Maximum Door Thickness: 1-3/4"
• Minimum Door Thickness: 1-3/8"
• Number of Keys: 2
• Strike Type: ANSI curved lip
• UL Listed: Yes
• ULC Listed: Yes

Non-Cylinder Functions:

• 4601LN: Passage, Closet
• ANSI No. F75
• For doors that do not require locking.
• Either lever operates latchbolt at all times.
• 4602LN: Privacy Bath/Bedroom
• ANSI No. F76A
• For lavatory or other privacy doors.
• Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
• Button automatically releases when inside lever is turned or door is closed.
• Emergency release in outside lever.
• Inside lever always active.
• 4628LN: Communicating Passage Lock
• ANSI No. F111
• For twin communicating or exit doors where one side operation is required.
• Also when space is limited between door and switch panel.
• Deadlocking latchbolt.
• One lever operation.
• Blank rose.
• Should be used only where rooms have more than one entrance.
• 4655LN: Dummy Trim
• ANSI No. NA
• For non-operational levers used for decorative trim.
• Rigid lever.

Single Cylinder Functions:

• 4604LN: Entry, Office
• ANSI No. F82A
• For entrance or office doors.
• Deadlocking latchbolt.
• Either lever operates latchbolt (except when outside lever is locked from inside).
• Pushing button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)
• Latchbolt is operated by key in outside lever or by rotating inside lever.
• Inside lever always active.
• 4605LN: Storeroom or Closet
• ANSI No. F86
• For use on storeroom, utility, exit doors.
• Deadlocking latchbolt.
• Latchbolt operated by lever inside, key in outside lever.
• Outside lever always rigid.
• Inside lever always active.
• 4607LN: Entrance or Office
• ANSI No. F109
• For entrance, general home or office doors.
• Deadlocking latchbolt.
• Either lever operates latchbolt (except when outside lever is locked from inside).
• Pushing turn button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)
• Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.
• Latchbolt is operated by key in outside lever or by rotating inside lever.
• Inside lever always active
• 4608LN: Classroom
• ANSI No. F84
• For classroom or utility room doors.
• Deadlocking latchbolt.
• Either lever operates latchbolt (except when outside lever is locked by key).
• Inside lever always active.
• Key releases outside lever.

Levers:

• AU: Augusta
• PB: Pacific Beach
• MO: Monroe
• TB: Reflections - Hudson series
• UB: Reflections - Hudson series

Finishes:

• 605 - Bright brass, clear coated
• 606 - Satin brass, clear coated
• 613E - Dark oxidized satin bronze-equivalent
• 625 - Bright chromium plated over nickel
• 626 - Satin chromium plated over nickel
• BSP - Black suede powder coat, sprayed
