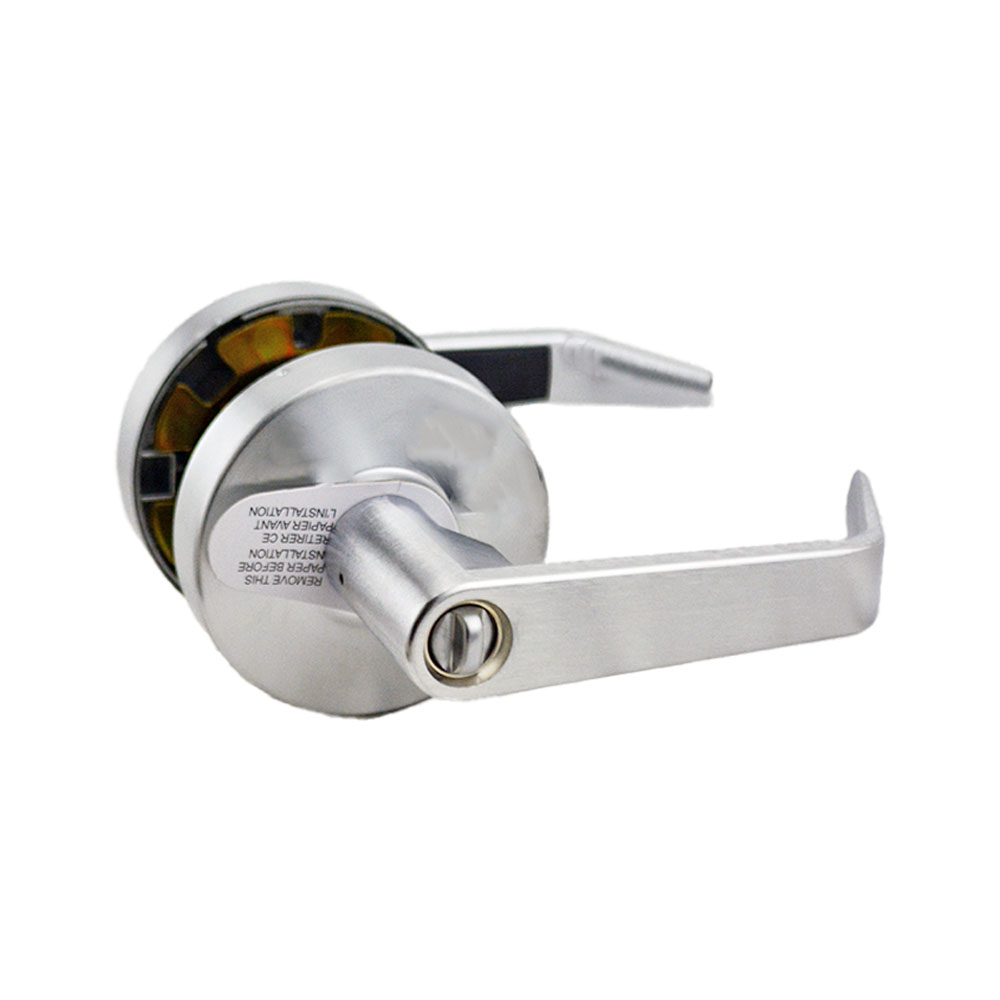

ASSA Abloy Accentra AU4607LN626 Office Entry Augusta Lever Grade 2 Cylindrical Lock features a sleek satin chrome finish that enhances both aesthetics and functionality. Designed for commercial, institutional, and multi-resident facilities, this Grade 2 lockset meets ANSI/BHMA A156.2 standards, ensuring durability and reliability. It is UL Fire Rated for up to 3 hours, providing peace of mind in safety compliance. This lock is adjustable for door thicknesses ranging from 1-3/8" to 1-3/4", making it versatile for various installations. The universal front allows for compatibility with both flat and beveled door edges, while its non-handed design simplifies installation. With a 2-3/4" backset and a crossbore size of 2-1/8", the AU4607LN626 is engineered for ease of use and adaptability. The Augusta lever design, combined with its 4-3/4" lever length and round rose escutcheon, provides a modern touch to any office entry. Constructed from cast zinc, this lock features a para keyway and a 6-pin configuration for added security. Backed by a limited 3-year warranty, the ASSA Abloy Accentra AU4607LN626 ensures a dependable solution for your locking needs.
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
Attributes
Ansi: F109
Ansi Function: F109 - Entry/Office
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: United States
Crossbore Size: 2-1/8" Bore with Optional Thru Bolts
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Augusta
Dimension: 4-3/4" Lever Length; 2-1/2" Projection; 3-3/8" Rose Diameter
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Office Entry
Function Family: Entrance/Office
Grade: Grade 2
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: Para Keyway
Latch Bore Diameter: 7/8"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Augusta Lever
Lever Knob Design Name: Augusta
Leverknob Design: AU - Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Entry
Manufacturer Warranty: Limited 3 Year Warranty
Material: Cast Zinc
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 6 Pin
Of Keys: 2
Order_ Qty: 1
Origin: United States
PO date: 2024-11-07
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.515625 in³
Pack Width: 6.75"
Pins: 6
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Wood/Machine Screws
Series: 4600LN Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: MCD234
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: 1-1/4" Curved Lip
Strike Dimension: 1-1/4" x 2-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Ul Listing Type: UL-cUL Fire Rated up to 3 Hours
Unit of Measure: Each
