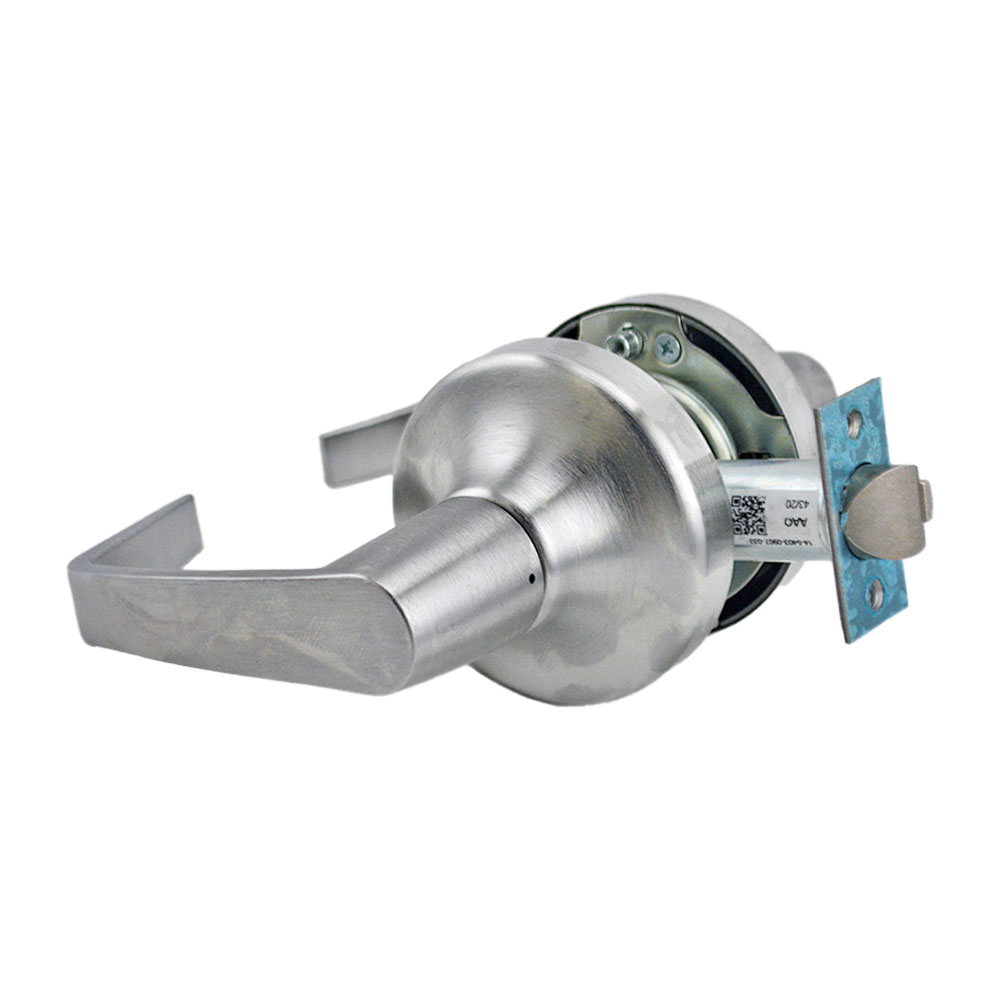

ASSA Abloy Accentra AU4708LN626 Classroom Augusta Lever Grade 1 Cylindrical Lock is designed for high-performance security in commercial, institutional, and multi-resident facilities. This robust lockset meets ANSI/BHMA A156.2 Grade 1 standards and is UL Fire Rated for up to 3 hours, ensuring reliability in critical situations. The Augusta lever design not only adds a touch of elegance but also supports functionality with a non-handed configuration, making it versatile for various door applications. It accommodates door thicknesses ranging from 1-3/8" to 1-3/4" and features a 2-3/4" backset for easy installation. The lockset includes a durable cast zinc construction and a striking satin chrome finish (US26D), providing both aesthetic appeal and long-lasting performance. With a crossbore size of 2-1/8" and 5/8" holes for thru bolts, installation is straightforward, and the 694 latch and 497-114 strike ensure effective operation. Additionally, it incorporates a Para keyway with a 6-pin configuration for enhanced security. Backed by a limited 5-year warranty, the ASSA Abloy Accentra AU4708LN626 is an excellent choice for those seeking dependable and stylish locking solutions.
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
Attributes
Ansi: ANSI A156.2, Series 4000, Grade 1
Ansi Function: F84 - Classroom
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: United States
Crossbore Size: 2-1/8" Bore with 5/8" Holes for Thru Bolts
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Augusta
Dimension: 5-1/4" Lever Length; 3-1/2" Projection; 3-1/2" Rose Diameter
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: Para Keyway
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Augusta Lever
Lever Knob Design Name: Augusta
Leverknob Design: AU - Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 5 Years
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Classroom
Manufacturer Warranty: Limited 5 Year Warranty
Material: Cast Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 6 Pin
Of Keys: 2
Order_ Qty: 1
Origin: United States
PO date: 2024-11-22
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.515625 in³
Pack Width: 6.75"
Pins: 6
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 3-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 4700LN Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 694
Std Latch Type: Beveled Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Ul Listing Type: UL-cUL Fire-Rated up to 3 Hours
Unit of Measure: Each
