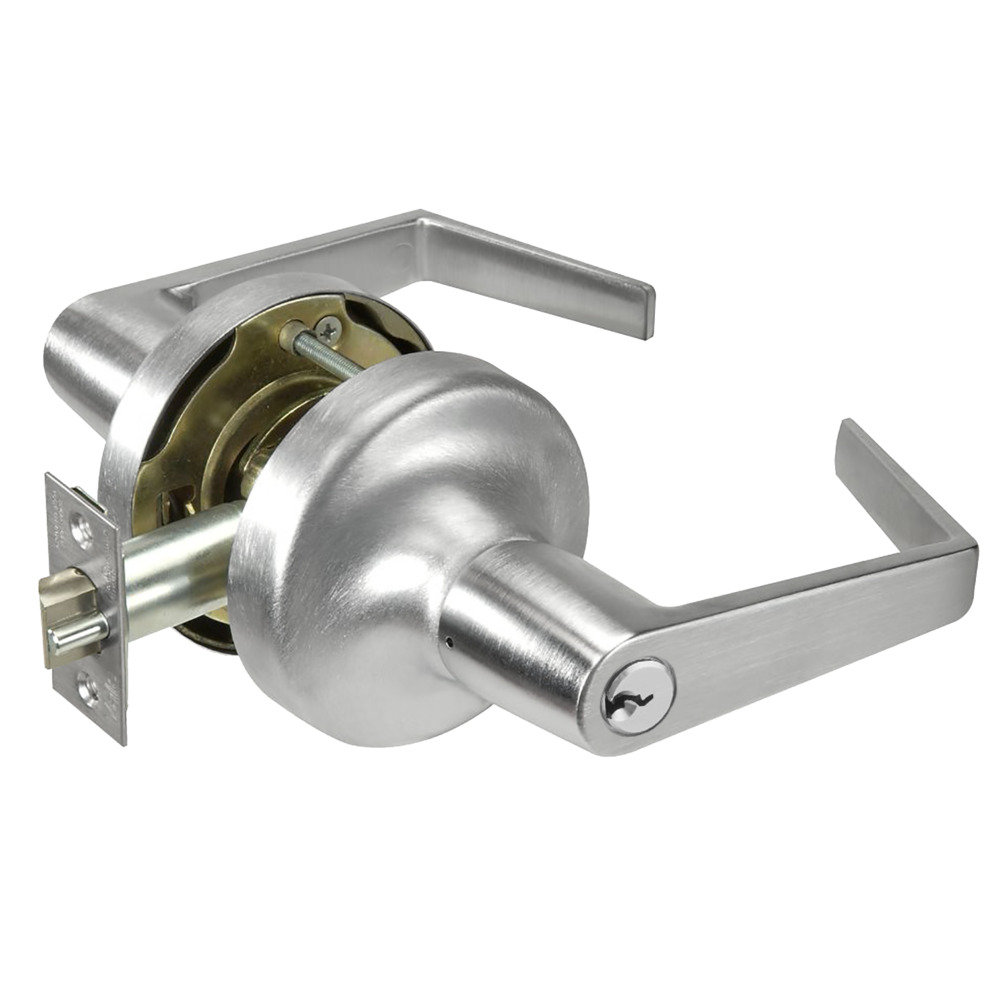

ASSA Abloy Accentra AU5307LN626 Office Entry Augusta Lever Grade 2 Cylindrical Lock offers a robust solution for securing commercial and institutional spaces. Constructed to meet ANSI/BHMA A156.2 Grade 2 standards, this lockset combines durability with functionality, making it an ideal choice for offices and multi-resident facilities. Its UL fire rating of up to 3 hours ensures added safety in the event of a fire. The lock features a satin chrome finish (US26D) that not only enhances its aesthetic appeal but also provides resistance to wear and corrosion. Designed with versatility in mind, it accommodates door thicknesses ranging from 1-3/4" to 2" and includes a universal front suitable for both flat and beveled doors. The non-handed design simplifies installation, allowing for seamless integration into any entryway. Equipped with a Para keyway and a 6-pin configuration, the AU5307LN626 provides enhanced security, ensuring that only authorized individuals can access secured areas. The lockset also features a 2-3/4" backset and a round rose design, contributing to its sleek look. Backed by a limited 5-year warranty, this mechanical lockset delivers peace of mind and reliability for all office entry needs.
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
Attributes
Ansi: F109
Ansi Function: F109 - Entry/Office
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 3-3/4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: United States
Crossbore Size: 2-1/8" Bore with 5/8" Holes for Thru Bolts
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Augusta
Dimension: 5" Lever Length; 3-1/2" Projection; 3-1/2" Rose Diameter
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 626
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Office Entry
Function Family: Entrance/Office
Grade: Grade 2
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: Para Keyway
Latch Bore Diameter: 7/8"
Lever Knob: Lever
Lever Knob Design: Augusta Lever
Lever Knob Design Name: Augusta
Leverknob Design: AU - Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Entry
Manufacturer Warranty: Limited 5 Year Warranty
Material: Cast Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 6 Pin
Of Keys: 2
Order_ Qty: 1
Origin: United States
Pack Height: 3.75"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 281.25 in³
Pack Width: 7.5"
Pins: 6
Product Height: 3.75"
Product Length: 10"
Product Width: 7.5"
Projection: 3-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 5300LN Series
Ship Weight: 4.8 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 380AN
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
