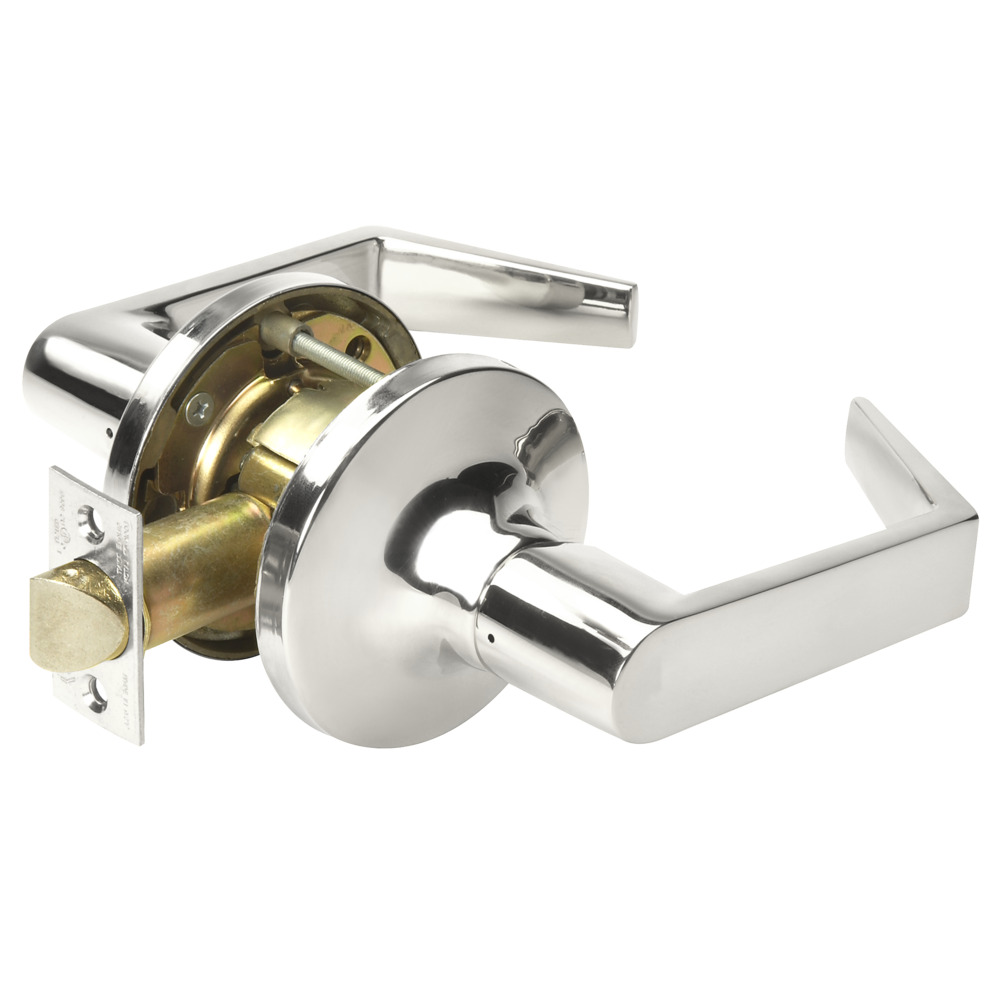

Yale AU5401LN 625 Grade 1 Passage Lockset offers a robust solution for industrial, commercial, and institutional applications, ensuring top-tier performance and reliability. This Grade 1 cylindrical lockset features the stylish Augusta lever in a bright chrome finish, providing a sleek look while maintaining functional integrity. Designed for non-handed installation, it adapts easily to various door configurations. With a patented Free Wheeling lever mechanism, this lockset enhances vandal resistance and minimizes maintenance, making it a preferred choice among architects and building owners. The stainless steel latchbolt guarantees durability and wear resistance, with a standard direct 1/2" throw. Additionally, the lockset accommodates door thicknesses from 1-3/4" to 2", ensuring a perfect fit for most doors. The Yale AU5401LN includes wear-resistant chassis plates that extend the lifespan of the lock and smooth its operation. Its heavy-duty lever return springs prevent sagging, while the longer thread locking through-bolts enhance stability and prevent rotation. With 13 finish options and three lever designs compliant with ADA requirements, this lockset meets diverse aesthetic and functional needs. For added versatility, it supports an array of cylinder and keying options, making it an exceptional choice for high-traffic environments while upholding the highest standards of security and accessibility.
Grade 1 Passage/Closet Latch Cylindrical Lock, Augusta Lever, Non-Keyed, Bright Chrome Finish, Non-handed
Designed for industrial, commercial and institutional use, the ACCENTRA 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it's the favorite among architects and building owners who demand the highest standard of product quality.
Attributes
Ansi: F75
Ansi Function: F75 - Passage
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4" to 2"
Finish: 625/US26
Finish Description: 625/US26
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 01-Passage/Closet Latch
Function Family: Passage
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Augusta
Leverknob Design: AU - Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Passage/Closet Latch
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-3/64"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: ACCENTRA 5400LN Series Grade 1 Cylindrical Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 693
Std Latch Type: Beveled Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
