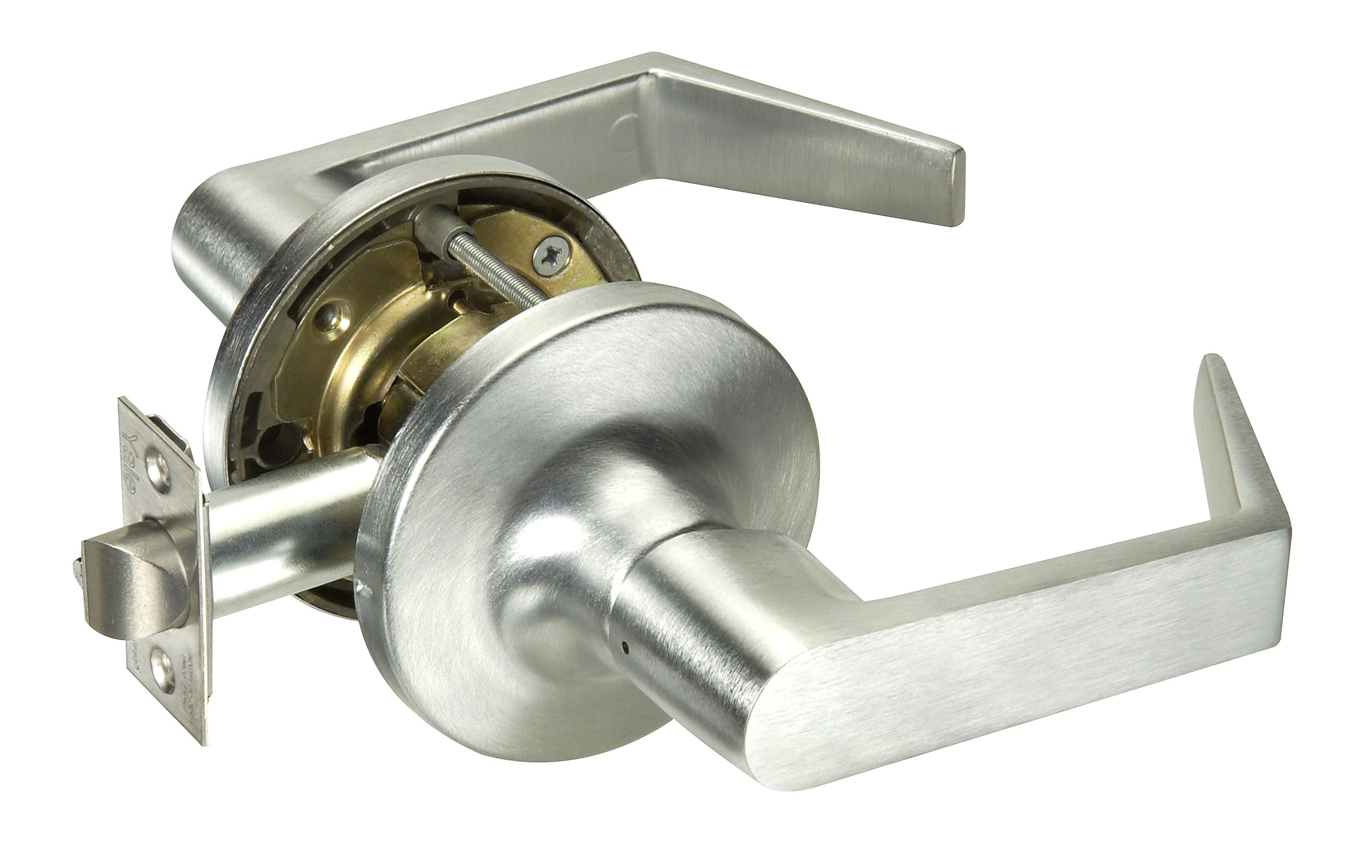

ASSA Abloy Accentra AU5401LN626 Passage Augusta Lever Grade 1 Cylindrical Lock features a robust design ideal for commercial and institutional environments. This high-performance lockset is ANSI/BHMA A156.2 Grade 1 certified, ensuring superior durability and reliability. With a UL fire rating of up to three hours, it provides peace of mind in safety and security. Designed for versatility, the AU5401LN626 accommodates door thicknesses ranging from 1-3/4 inches to 2-1/4 inches, making it suitable for various applications. The sleek satin chrome finish not only enhances aesthetic appeal but also offers corrosion resistance for long-lasting use. The Augusta lever design ensures easy operation while maintaining a modern look. This lockset features a 2-3/4-inch backset and includes a 693 latch with a 1-1/8 inch x 2-1/4 inch faceplate, providing a secure fit in standard door preparations. Non-handed and designed with a round rose escutcheon, installation is straightforward, further supported by a limited 7-year warranty. Whether for new construction or retrofitting existing doors, the ASSA Abloy Accentra AU5401LN626 is an excellent choice for enhancing security and functionality in any building.
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
Attributes
Ansi: F75
Ansi Function: F75 - Passage
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: United States
Crossbore Size: 2-1/8" Bore with 5/8" Holes for Thru Bolts
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Augusta
Dimension: 5-7/16" Lever Length; 3-3/64" Projection; 3-1/2" Diameter
Door Range: 1-3/4" to 2-1/4""
Door Thickness: 1-3/4" to 2-1/4""
Finish: Satin Chrome
Finish Code: 626
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Passage
Function Family: Passage
Grade: Grade 1
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Augusta Lever
Lever Knob Design Name: Augusta
Leverknob Design: AU - Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Passage/Closet Latch
Manufacturer Warranty: Limited 7 Year Warranty
Material: Cast Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
PO date: 2024-09-19
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-3/64"
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 5400LN Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 693
Std Latch Type: Beveled Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL-cUL Fire-Rated up to 3 Hours
Unit of Measure: Each
