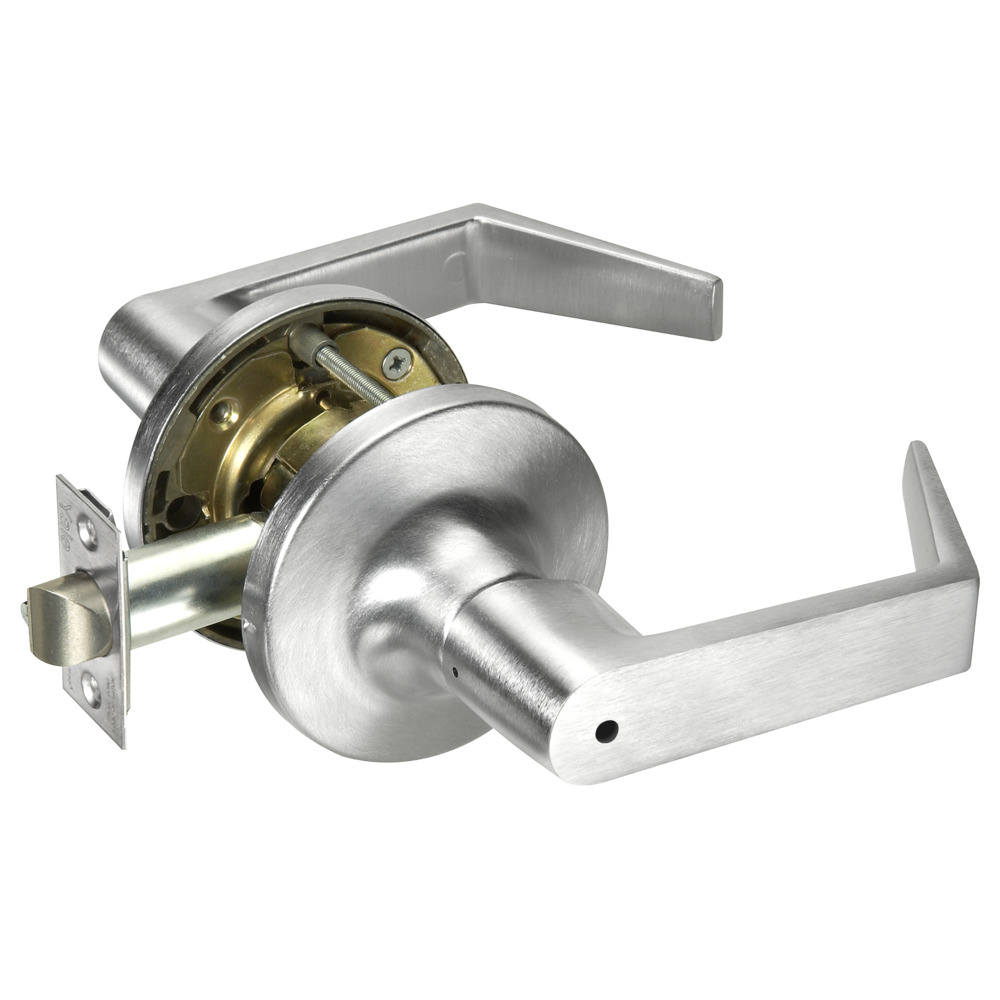

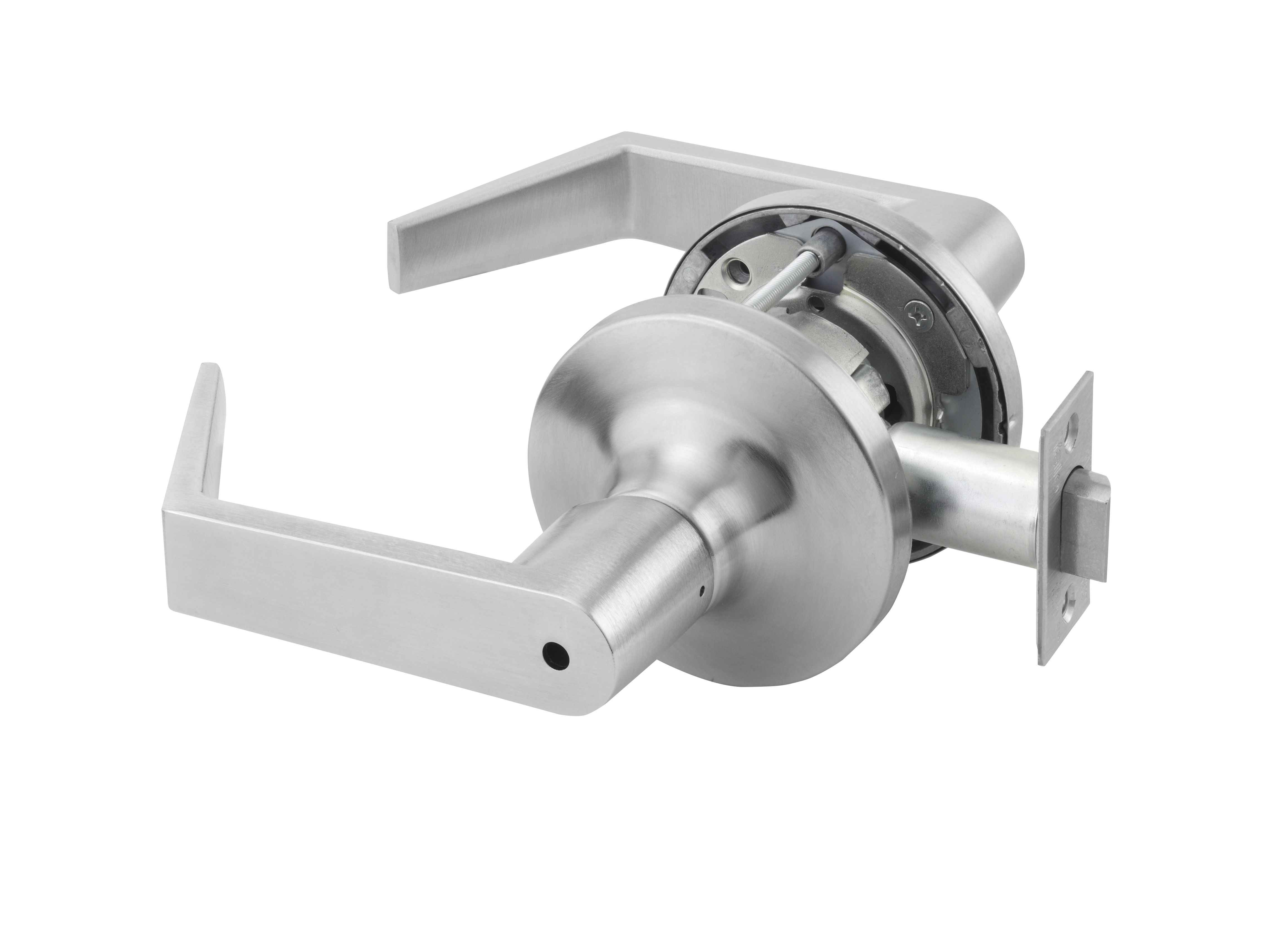

ASSA Abloy Accentra AU5402LN626 Privacy Augusta Lever Grade 1 Cylindrical Lock offers both security and style, making it an ideal choice for commercial and institutional settings. This robust lockset is ANSI/BHMA A156.2 Grade 1 certified, ensuring top-tier performance and durability. With a UL fire rating of up to 3 hours, it provides peace of mind in the event of emergencies. Designed for versatility, the AU5402LN626 accommodates door thicknesses ranging from 1-3/4" to 2-1/4", making it suitable for a variety of applications. The adjustable backset of 2-3/4" and crossbore size of 2-1/8" with 5/8" holes for thru bolts further enhance its adaptability. The Augusta lever design, finished in satin chrome (626), adds a modern touch while remaining non-handed for easy installation. This privacy function lockset features a 5-7/16" lever length and 3-1/2" diameter round rose escutcheon, ensuring a comfortable grip and seamless integration into any door design. Constructed from durable cast zinc, it is designed to withstand daily use. With a limited 7-year warranty, you can trust the longevity and reliability of the ASSA Abloy Accentra AU5402LN626 for your locking needs.
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
Attributes
Ansi: F76A
Ansi Function: F76A - Privacy
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: United States
Crossbore Size: 2-1/8" Bore with 5/8" Holes for Thru Bolts
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Augusta
Dimension: 5-7/16" Lever Length; 3-3/64" Projection; 3-1/2" Diameter
Door Range: 1-3/4" to 2-1/4""
Door Thickness: 1-3/4" to 2-1/4""
Finish: Satin Chrome
Finish Code: 626
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Privacy
Function Family: Privacy
Grade: Grade 1
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Augusta Lever
Lever Knob Design Name: Augusta
Leverknob Design: AU - Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Privacy/Bedroom/Bath
Manufacturer Warranty: Limited 7 Year Warranty
Material: Cast Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
PO date: 2024-09-19
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-3/64"
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 5400LN Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 693
Std Latch Type: Beveled Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL-cUL Fire-Rated up to 3 Hours
Unit of Measure: Each
