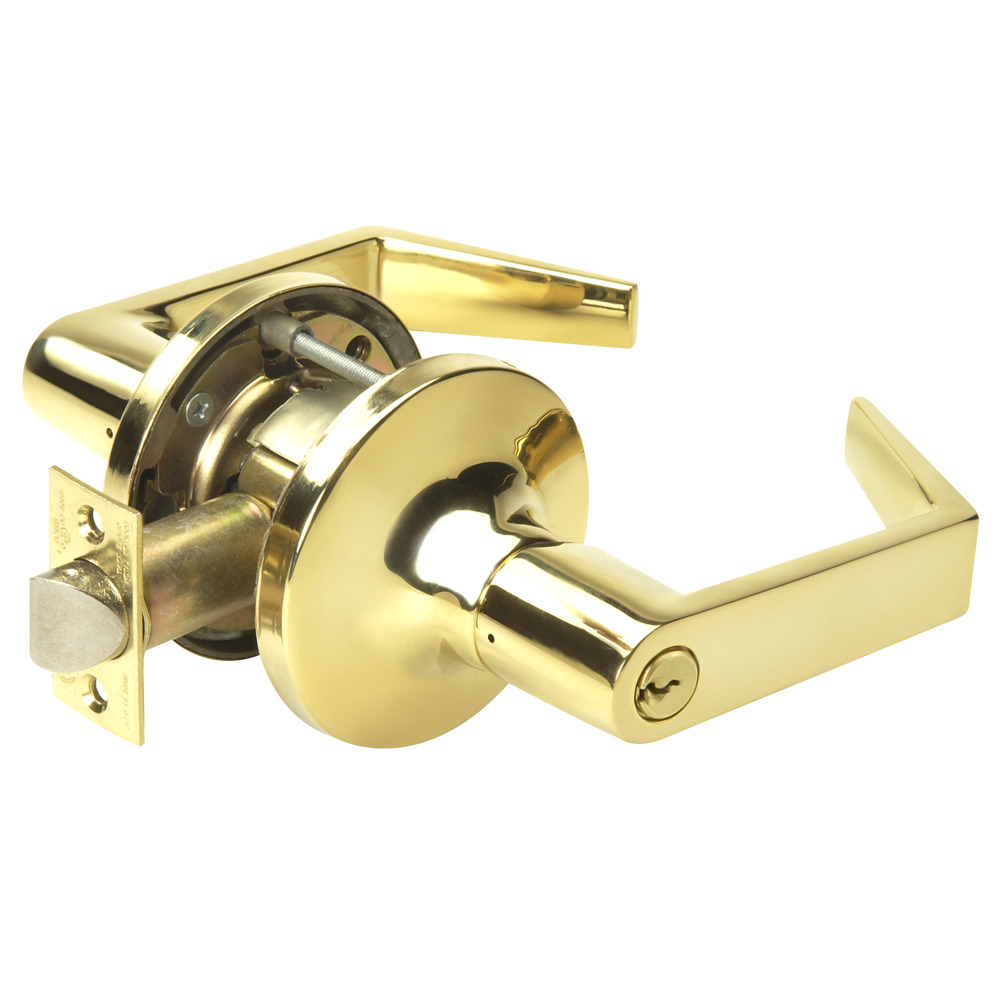

Yale AU5405LN 2802 605 Grade 1 Storeroom Lockset combines robust construction with user-friendly functionality tailored for industrial, commercial, and institutional applications. This Grade 1 cylindrical lockset features the Augusta lever design and a conventional Schlage C keyway, ensuring both reliability and ease of access. The innovative Free Wheeling lever mechanism enhances vandal resistance while reducing maintenance needs, setting a new standard in durability. Crafted from wear-resistant materials, the stainless steel latchbolt offers superior strength, with a standard 1/2" throw and an optional 3/4" latch throw for fire-rated or paired doors. Engineered with longevity in mind, features such as through bolting for stability and lifetime warranted heavy-duty lever return springs prevent sagging, ensuring smooth operation. The adjustable rose support plates accommodate door thicknesses from 1-3/4" to 2", while three non-handed lever options comply with ADA requirements for easy gripping. With 24 functions, including electrified options, and a variety of finish choices, the Yale AU5405LN is designed to meet diverse security needs. Each lockset is UL listed and comes with a 7-year warranty, providing peace of mind for those who demand the highest quality in door hardware solutions.
Grade 1 Storeroom/Closet Cylindrical Lock, Augusta Lever, Schlage C Keyway Conventional Cylinder C Keyway, Bright Brass Finish, Non-handed
Designed for industrial, commercial and institutional use, the ACCENTRA 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it's the favorite among architects and building owners who demand the highest standard of product quality.
Attributes
Ansi: F86
Ansi Function: F86 - Storeroom
Base Material: Brass
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 605/US3
Finish Description: 605/US3
Finish Family: Polished Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 05-Storeroom/Closet
Function Family: Storeroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Augusta
Leverknob Design: AU - Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Storeroom/Closet
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Pins: 6
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-3/64"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: ACCENTRA 5400LN Series Grade 1 Cylindrical Lever Locks
Ship Weight: 5 lbs.
Std Keyway: C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 694
Std Latch Type: Beveled Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
