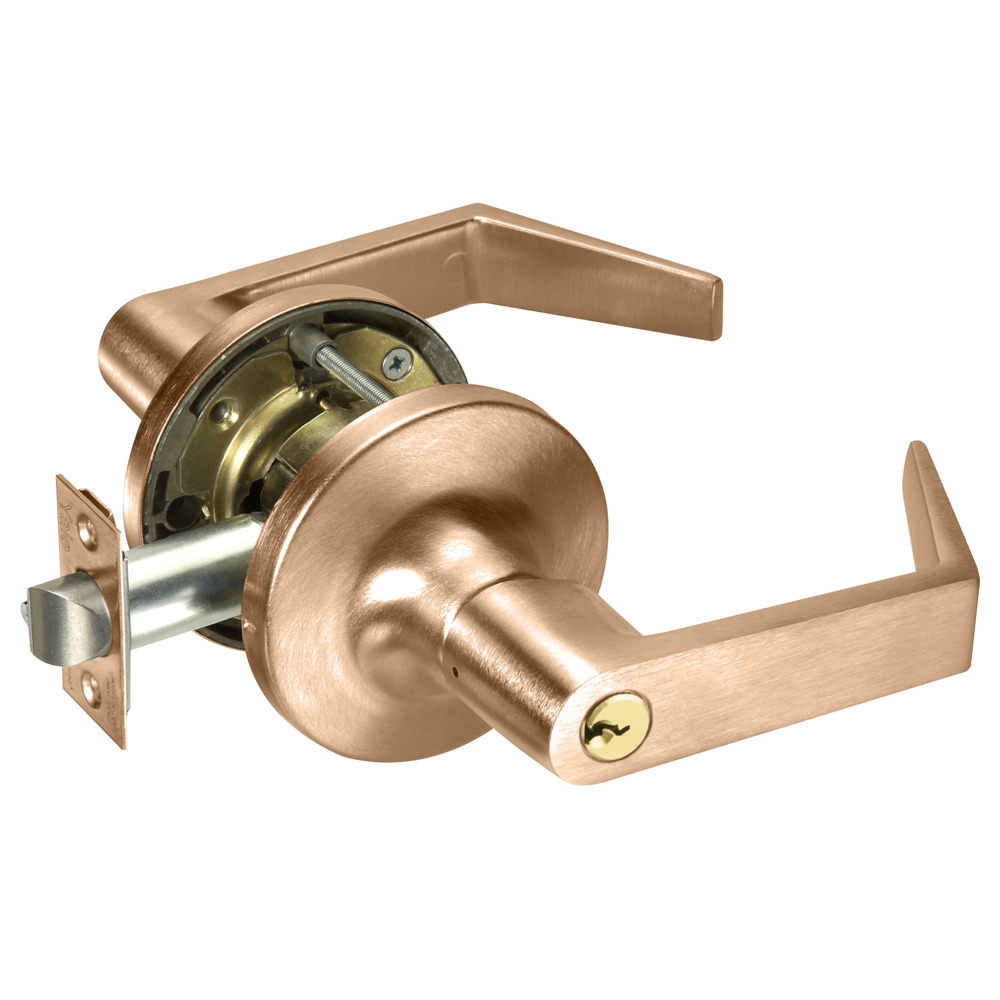

Yale AU5405LN 612 Grade 1 Storeroom Lockset offers an exceptional blend of durability and performance tailored for industrial, commercial, and institutional applications. This heavy-duty cylindrical lockset features the Augusta lever design and a satin bronze finish that not only enhances aesthetics but also ensures long-lasting functionality. Crafted with a Free Wheeling lever mechanism, this lockset significantly increases vandal resistance and minimizes maintenance needs. The stainless steel latchbolt provides added strength along with a standard 1/2" throw, while wear-resistant chassis plates extend the lock body’s life and promote smoother operation. Designed for doors with thicknesses ranging from 1-3/4" to 2", the lockset includes patented adjustable rose support plates for seamless installation. With 24 available functions, including electrified options, the Yale AU5405LN is versatile enough to meet a variety of security needs. The non-handed design accommodates three lever options that comply with ADA requirements for easy gripping and operation. Backed by a 7-year limited warranty, this Grade 1 lockset is UL Listed and ANSI certified, guaranteeing its reliability in high-traffic environments. Choose the Yale AU5405LN for robust protection and peace of mind in your facility.
Grade 1 Storeroom/Closet Cylindrical Lock, Augusta Lever, Conventional Cylinder, Satin Bronze Finish, Non-handed
Designed for industrial, commercial and institutional use, the ACCENTRA 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it's the favorite among architects and building owners who demand the highest standard of product quality.
Attributes
Ansi: F86
Ansi Function: F86 - Storeroom
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 612/US10
Finish Description: 612/US10
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 05-Storeroom/Closet
Function Family: Storeroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Augusta
Leverknob Design: AU - Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Storeroom/Closet
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Pins: 6
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-3/64"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: ACCENTRA 5400LN Series Grade 1 Cylindrical Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 694
Std Latch Type: Beveled Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
