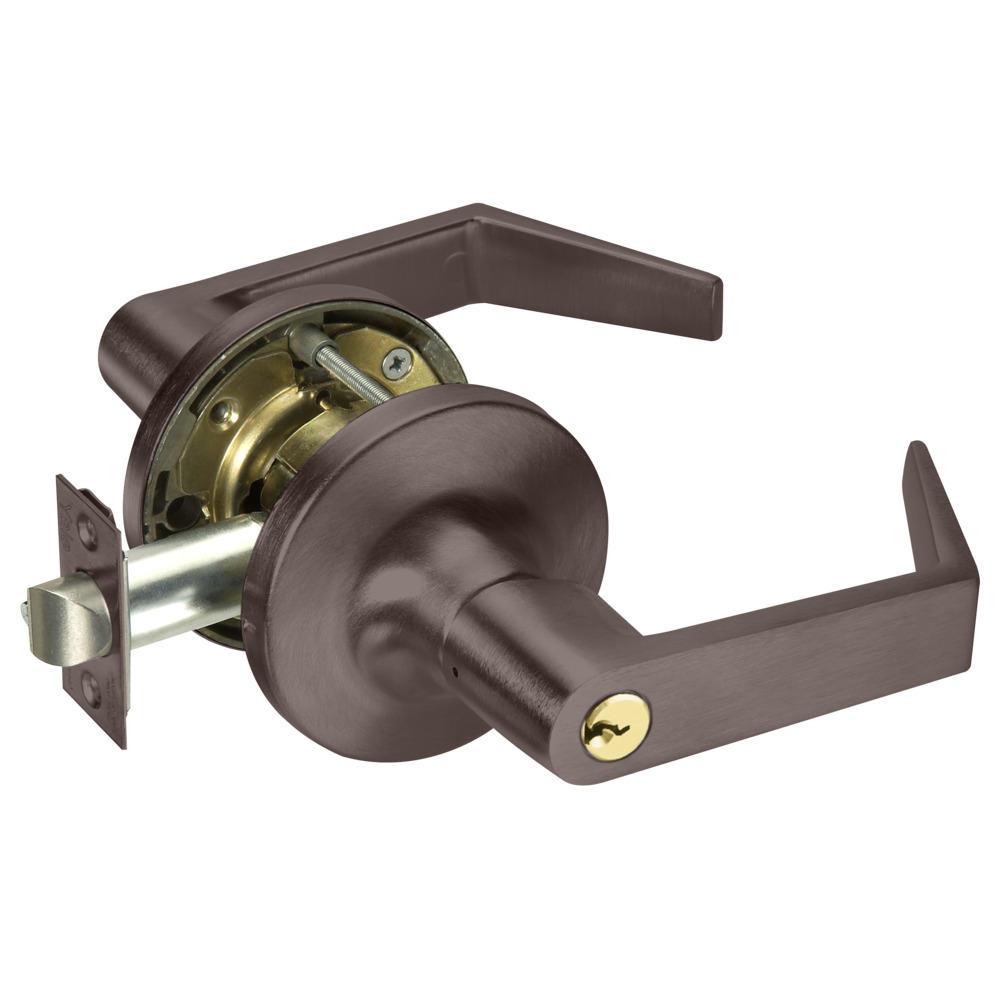

Yale AU5407LN 613E Grade 1 Entry Lockset offers exceptional security and durability for industrial, commercial, and institutional applications. This Grade 1 cylindrical lockset features the Augusta lever design and is finished in a dark oxidized bronze, providing a sophisticated look while ensuring reliability. Engineered with a Free Wheeling lever mechanism, this lockset enhances vandal resistance and minimizes maintenance issues commonly faced by traditional rigid lever designs. The stainless steel latchbolt offers excellent wear resistance and strength, with standard 1/2" throw and an option for a 3/4" throw for fire-rated doors. Additionally, the extended locking through-bolts enhance stability, preventing rotation. Designed for versatility, the AU5407LN accommodates door thicknesses from 1-3/4" to 2" and can be easily adjusted with patented rose support plates. The lockset is available in 13 finish options and three lever designs, ensuring compliance with ADA requirements and aesthetic preferences. With 24 functions, including electrified options, and a lifetime warranty on the heavy-duty lever return springs, this lockset stands out as a trusted choice for architects and building owners who prioritize quality and performance. Yale’s AU5407LN is built to last, making it a reliable solution for various commercial applications.
Grade 1 Entry Cylindrical Lock, Augusta Lever, Conventional Cylinder, Dark Oxidized Bronze Finish, Non-handed
Designed for industrial, commercial and institutional use, the ACCENTRA 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it's the favorite among architects and building owners who demand the highest standard of product quality.
Attributes
Ansi: F109
Ansi Function: F109 - Entry/Office
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 613E/US10BE
Finish Description: 613E/US10BE
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 07-Entry
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Augusta
Leverknob Design: AU - Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Entry
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Pins: 6
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-3/64"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: ACCENTRA 5400LN Series Grade 1 Cylindrical Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 694
Std Latch Type: Beveled Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
