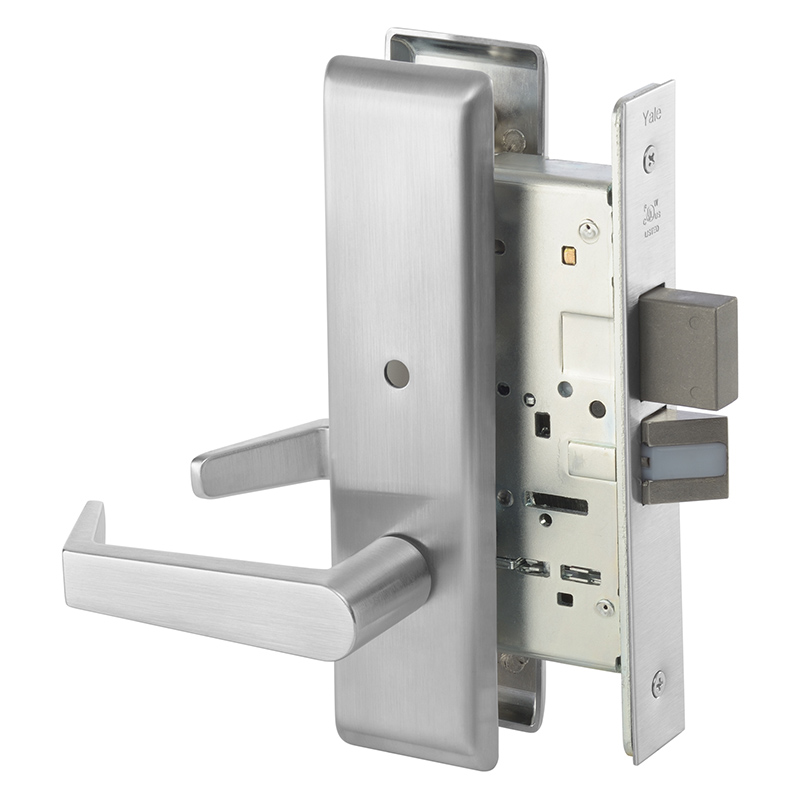

ASSA Abloy Accentra AUCN8802FL626 Privacy Mortise Lock with Augusta Lever and Camden Escutcheon offers a robust solution for securing commercial and institutional spaces. Designed with a satin chrome finish, this lockset not only enhances aesthetic appeal but also ensures long-lasting performance. With a UL cycle test rating of over 12.3 million cycles, it stands up to the rigors of daily use while maintaining its integrity against damage and vandalism. The AUCN8802FL626 features a field-adjustable lever handing and latchbolt, making installation flexible and straightforward. It meets ANSI/BHMA Certified Grade 1 standards, ensuring exceptional durability and longevity. Additionally, this lockset is UL/cUL listed for 3-hour fire-rated doors, providing peace of mind in safety-critical environments. With a 2-3/4" backset and dimensions that include a 4-3/4" lever length and 2-1/2" projection, it fits standard door thicknesses of 1-3/4". The heavy-duty trim design and limited 10-year warranty further reinforce its reliability as a mechanical commercial lockset. Ideal for privacy applications, the combination of the Augusta lever and Camden escutcheon creates a sophisticated and secure entry solution for various settings.
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
Attributes
Ansi Function: F19 - Privacy/Bed/Bath
Backset: 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4"
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Design: Augusta Lever
Design A: AU Lever
Design B: CN Escutcheon
Dimension: 4-3/4" Lever Length; 2-1/2" Projection; 2-3/16" x 8-21/32" Escutcheon
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Privacy
Grade: Grade 1
Hazardous Material: NO
Installation: Commercial
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: Augusta Lever
Leverknob Design: AU - Augusta Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
Material: Cast Zinc
No Of Inners: 1
Order_ Qty: 1
Pack Height: 4.75"
Pack Length: 9"
Pack Qty: 1
Pack Width: 6.75"
Rose Escutcheon Design: Camden Escutcheon
Roseescutcheon Design: CN Escutcheon
Series: 8800 Series
Ship Weight: 3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Strike Height: 4-7/8"
Std Strike Number: 2815
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL/cUL Fire Rated up to 3 Hours
Unit of Measure: Each
