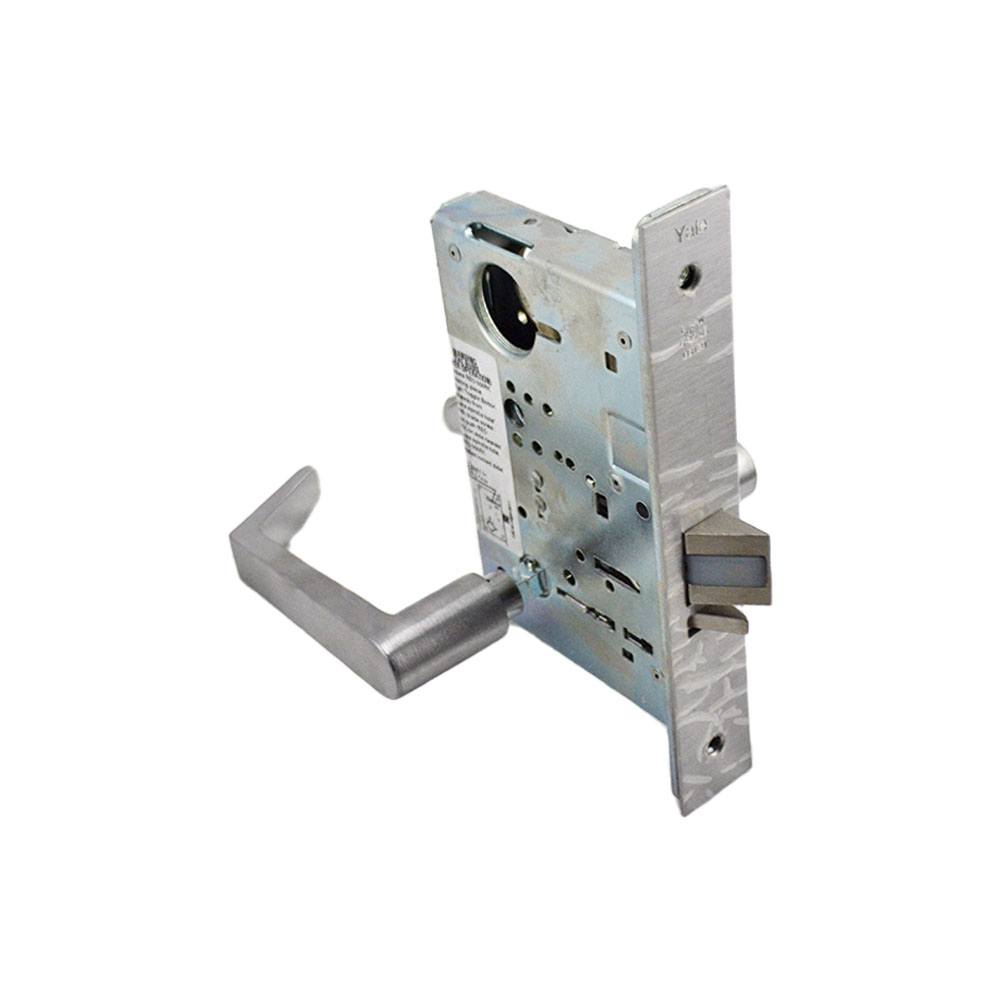

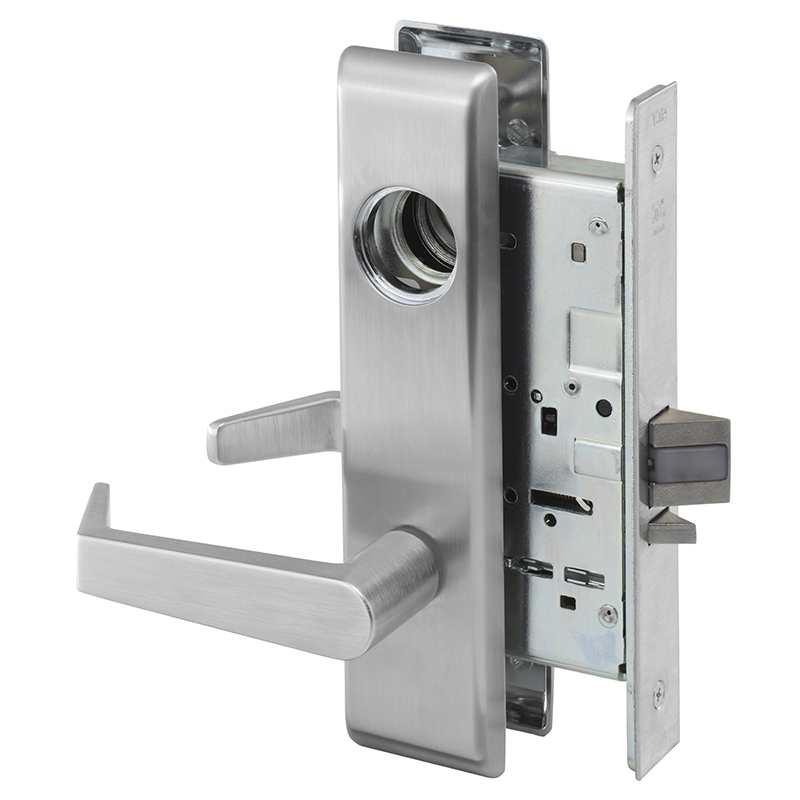

ASSA Abloy Accentra AUCN8805FL626LC Storeroom Mortise Lock with Augusta Lever and Camden Escutcheon offers robust security and durability for commercial and institutional settings. This sophisticated lockset is ANSI/BHMA Certified Grade 1, ensuring it meets the highest standards for long life and reliability. With a satin chrome finish, it not only enhances aesthetic appeal but also provides a heavy-duty design that resists damage and vandalism. Engineered to withstand the rigors of everyday use, the AUCN8805FL626LC has successfully completed a UL Cycle test of over 12.3 million cycles. Its field-adjustable lever handing and latchbolt offer versatility for different door setups. Suitable for 1-3/4" thick doors, this storeroom lock features a 2-3/4" backset and comes with a 2815 curved lip strike for easy installation. Additionally, the lockset is UL/cUL listed for use on fire-rated doors up to three hours, making it a reliable choice for safety-conscious facilities. The Augusta lever design, paired with the Camden escutcheon, provides a modern touch. Backed by a limited 10-year warranty, the ASSA Abloy Accentra AUCN8805FL626LC is a dependable solution for all your door security needs.
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
Attributes
Ansi Function: F07 - Storeroom/Exit
Backset: 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4"
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Cylinder Type: Less Cylinder
Design: Augusta Lever and Camden Escutcheon
Design A: AU Lever
Design B: CN Escutcheon
Dimension: 4-3/4" Lever Length; 2-1/2" Projection; 2-3/16" x 8-21/32" Escutcheon
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Storeroom
Grade: Grade 1
Hazardous Material: NO
Installation: Commercial
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: Augusta Lever
Leverknob Design: AU - Augusta Lever
Limited Warranty: 10 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Warranty
Material: Cast Zinc
No Of Inners: 1
Order_ Qty: 1
PO date: 2024-09-11
Pack Qty: 1
Rose Escutcheon Design: Camden Escutcheon
Roseescutcheon Design: CN Escutcheon
Series: 8800 Series
Std Latch Backset Dim: 2-3/4"
Std Strike Height: 4-7/8"
Std Strike Number: 2815
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL/cUL Fire Rated up to 3 Hours
Unit of Measure: Each
