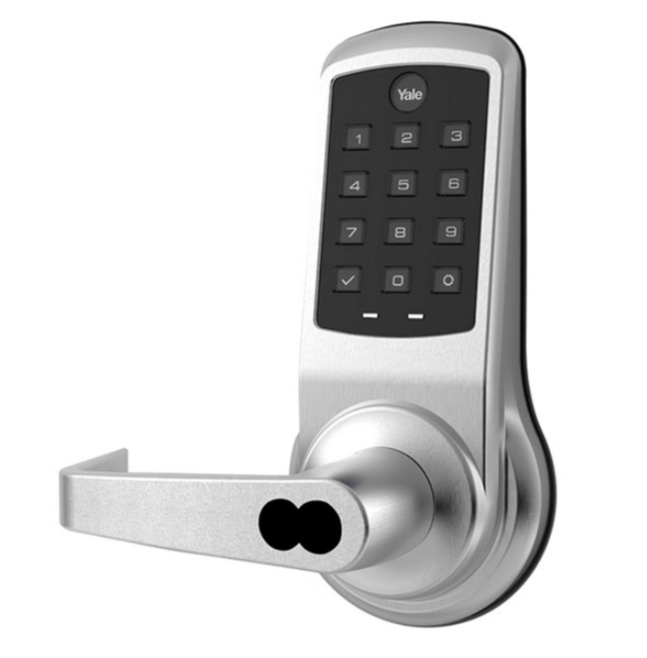

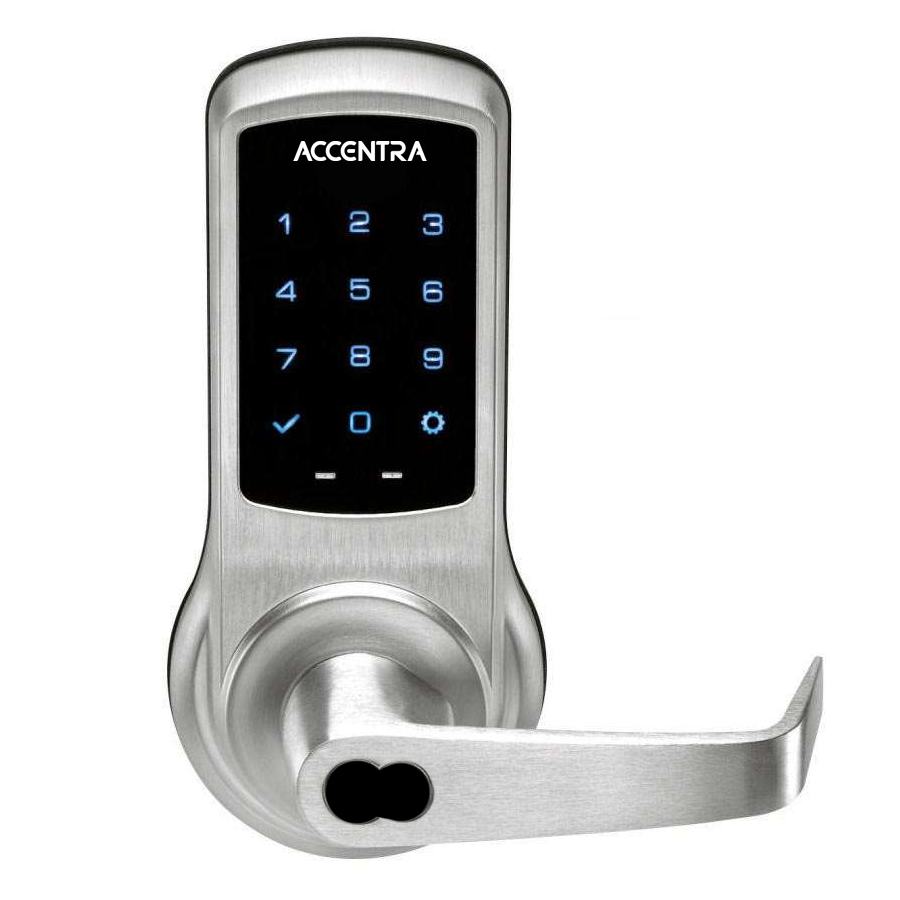

Accentra B-AU-NTB623-NR-626 nexTouch Touchscreen Keypad Lock, Augusta Lever, Grade 1, Satin Chrome

Accentura nexTouch Access Control System offers a seamless blend of modern aesthetics and advanced technology, making it an ideal security solution for various facilities. With its heavy-duty design and ANSI/BHMA grade 1 certification, it stands as a robust and trustworthy choice, backed by over 170 years of experience in security. The nexTouch features modular technology, allowing for easy upgrades to data-on-card capabilities. Users can choose between a capacitive touchscreen or a pushbutton keypad, ensuring ADA compliance and usability in tactile environments. With the capacity to store up to 500 user codes and a privacy mode activated with a simple button push, security is both accessible and customizable. Equipped with a 9V battery backup, this lock prevents lockouts even during battery failures, providing peace of mind. Its non-handed and field-reversible design accommodates various door configurations, while the unique design allows for future upgrades, reducing long-term costs and maintenance. Available in four stylish finishes and three lever designs, the nexTouch is engineered for ease of use, ensuring the safety of your personnel and property. With a three-year limited warranty on mechanical and electrical components, this access control solution is as dependable as it is innovative.

nexTouch Touchscreen Keypad Bored Lock, Augusta Lever, No Radio - Standalone, SFIC - Best Prep, Less Core, Grade 1, Weather Resistant, 626/US26D Satin Chrome Yale is Now Accentra

nexTouch combines a modern look and innovative access control technology with an array of bold new features, offering an attractive access control solution to a range of facilities. With a heavy-duty design and ANSI/BHMA grade 1 certification, nexTouch provides durable and reliable security from a brand trusted for over 170 years.

Features:

• Modular technology allows users to upgrade to data-on-card
• Capacitive touchscreen or pushbutton keypad available, for tactile environments and ADA compliance
• Privacy mode enabled by a button push
• Up to 500 user codes in keypad only operation
• 9V battery power backup prevents lockout even if the batteries fail
• Available in four finishes and three lever designs
• A certified Integrator is required to configure this product with ACCENTRA
• Non-handed, field reversible
• Engineered to provide a comprehensive, easy-to-use access control solution to protect your facility and personnel
• Unique and versatile design enables upgrade of the lock’s technology when needed
• Reduces investment and maintenance costs
• Windstorm: Certified (refer to local codes)
• 3 year limited warranty on mechanical and electrical components; one year limited warranty on the finish

Specifications:

• ANSI/BHMA Series: Series 4000
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Large format, small format
• Handing: Non-handed, field reversible
• Latchbolt Throw: 1/2"
• Maximum Door Thickness: 1 3/4"
• Minimum Door Thickness: 1 3/8"

Non-Cylinder Functions:

• NTB633: Pushbutton w/o Cylinder Override
• For doors that do not require mechanical key override.
• Latchbolt retracted by lever outside with valid pin code, or by operating lever inside.
• Inside lever always active.
• Deadlocking latchbolt.
• NTB643: Touchscreen w/o Cylinder Override
• For doors that do not require mechanical key override.
• Latchbolt retracted by lever outside with valid pin code, or by operating lever inside.
• Inside lever always active.
• Deadlocking latchbolt.

Single Cylinder Functions:

• NTB613: Pushbutton w/Cylinder Override
• For doors that require mechanical key override.
• Latchbolt retracted by lever outside with valid pin code; by use of mechanical key, or by operating lever inside.
• Inside lever always active.
• Deadlocking latchbolt.
• NTB623: Touchscreen w/Cylinder Override
• For doors that require mechanical key override.
• Latchbolt retracted by lever outside with valid pin code; by use of mechanical key, or by operating lever inside.
• Inside lever always active.
• Deadlocking latchbolt.

Levers:

• AU: Augusta
• MO: Monroe
• PB: Pacific Beach

Finishes:

• 605 - Bright brass
• 613E - Dark Oxidized satin bronze
• 626 - Satin chrome plated
• BSP - Black suede powder coat
