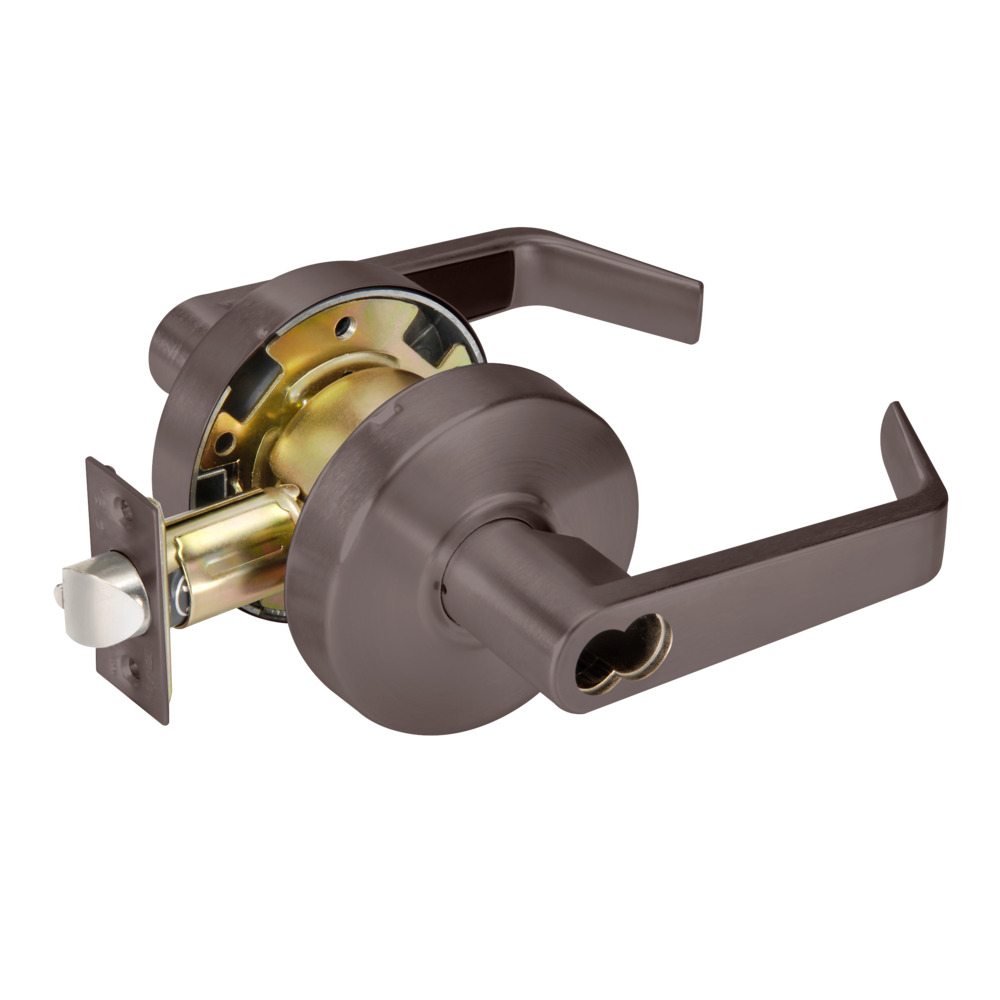

Yale B-AU4605LN 613E Grade 2 Storeroom Lock offers a robust solution for commercial security needs with its Grade 2 certification and UL Fire Listing for up to 3 hours. Designed for storeroom or closet applications, this cylindrical lock features the elegant Augusta lever and a non-handed installation, allowing for versatile use on doors ranging from 1-3/8" to 1-3/4" in thickness. With a standard backset of 2-3/4", the Yale 4600LN ensures reliable functionality with a 1/2" throw deadlocking latchbolt. It fits ANSI/BHMA A156.115 specifications, making installation straightforward for both steel and wood doors. The dark oxidized bronze finish not only enhances durability but also adds a touch of sophistication to any setting. This lock is built for ease of use and comes with optional through-bolts for added security during installation. The three-year mechanical warranty provides peace of mind, ensuring longevity and performance. Whether you're a building professional or a knowledgeable homeowner, the Yale B-AU4605LN 613E is an ideal choice for reliable access control in commercial spaces.
Grade 2 Storeroom/Closet Cylindrical Lock, Augusta Lever, SFIC Less Core, Dark Oxidized Bronze Finish, Non-handed
ACCENTRA 4600LN cylindrical locks are the idea choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL Fire Listed for all functions insuring reliability and peace of mind.
Attributes
Ansi: F86
Ansi Function: F86 - Storeroom
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/8" to 1-3/4"
Finish: 613E/US10BE
Finish Description: 613E/US10BE
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 05-Storeroom/Closet
Function Family: Storeroom
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 7/8"
Lever Knob: Lever
Lever Knob Design Name: Augusta
Leverknob Design: AU - Augusta Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Storeroom/Closet
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Origin: United States
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.515625 in³
Pack Width: 6.75"
Pins: 6 or 7
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-1/2"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Wood/Machine Screws
Series: ACCENTRA 4600LN Series Grade 2 Cylindrical Lever Locks
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: MCD234
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
