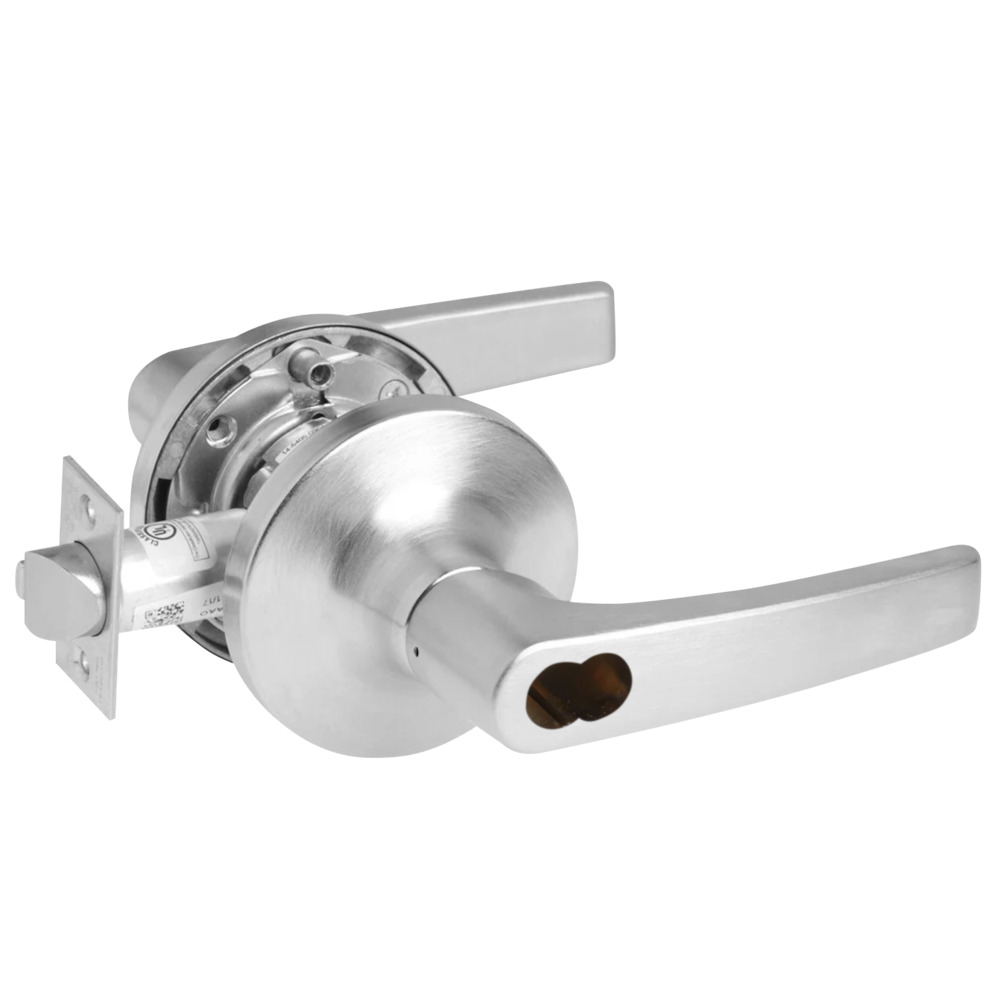

Yale B-MO5408LN 626 Grade 1 Classroom Lockset delivers unmatched reliability and performance, making it an ideal choice for industrial, commercial, and institutional environments. This Grade 1 cylindrical lockset features a sleek Satin Chrome finish and a Monroe lever design, ensuring both style and functionality. Its non-handed design allows for versatility in installation, accommodating doors ranging from 1-3/4" to 2" in thickness. Engineered for durability, the Yale 5400LN Series includes a Free Wheeling lever mechanism that enhances vandal resistance while minimizing maintenance needs. The stainless steel latchbolt contributes to increased strength and wear resistance, providing a direct 1/2" throw. Additionally, the wear-resistant chassis plates extend the lock's lifespan, ensuring smooth operation over time. With 13 available finish options and three lever designs, the lockset can be customized to suit various aesthetics. It offers 24 functions, including electrified options, and features longer thread locking through-bolts for enhanced stability. Yale's patented adjustable rose support plates allow for easy adjustment to fit standard door cutouts. Backed by a 7-year warranty, the Yale B-MO5408LN is the reliable choice for secure and efficient access control.
Grade 1 Classroom Cylindrical Lock, Monroe Lever, SFIC Less Core, Satin Chrome Finish, Non-handed
Designed for industrial, commercial and institutional use, the ACCENTRA 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it's the favorite among architects and building owners who demand the highest standard of product quality.
Attributes
Ansi: F84
Ansi Function: F84 - Classroom
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 626/US26D
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 08-Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Monroe
Leverknob Design: MO - Monroe Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Classroom
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-1/8"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: ACCENTRA 5400LN Series Grade 1 Cylindrical Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 694
Std Latch Type: Beveled Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
