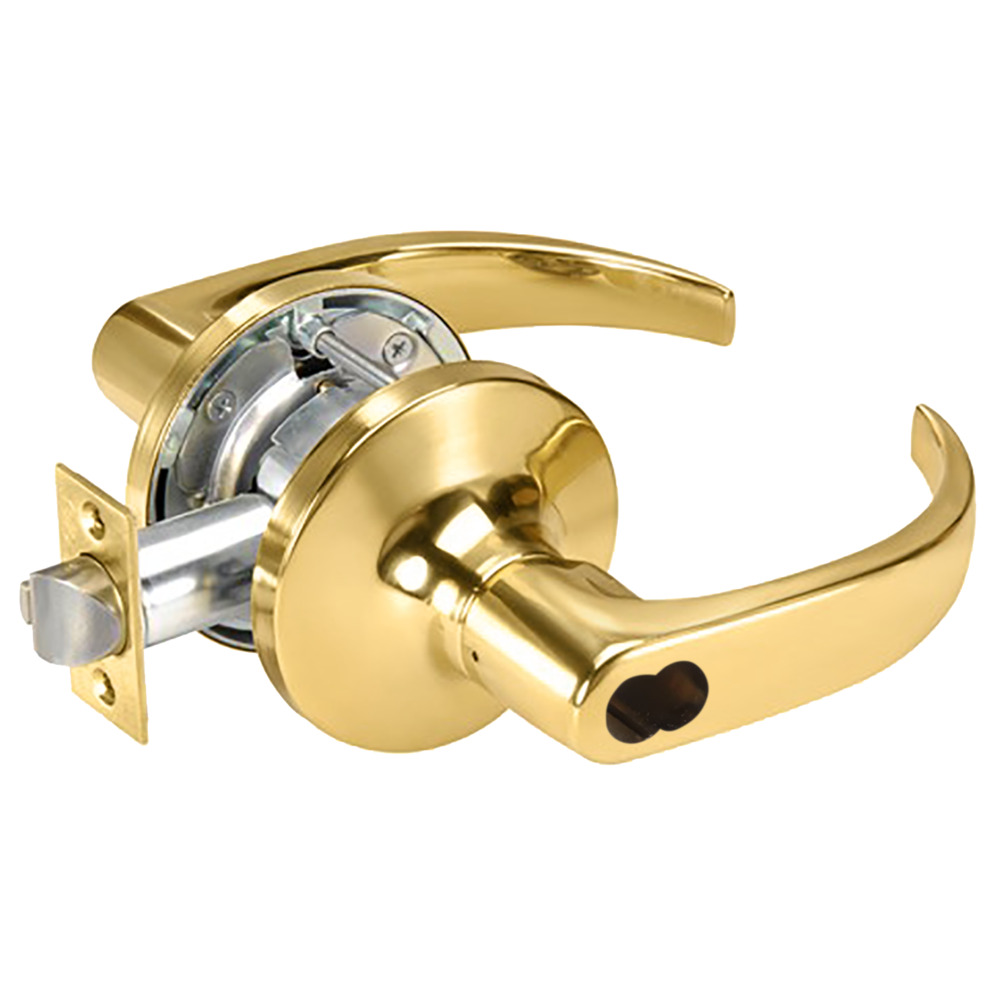

Yale B-PB5404LN 605 Grade 1 Entry Lockset delivers unmatched reliability and performance for industrial, commercial, and institutional applications. This heavy-duty cylindrical lockset features a Pacific Beach lever design and comes in a bright brass finish, enhancing both aesthetics and durability. Engineered to exceed expectations, it boasts a robust Free Wheeling lever mechanism that increases vandal resistance while minimizing maintenance. Built with a stainless steel latchbolt, the lockset offers superior strength and wear resistance, with a standard 1/2" throw and the option for a 3/4" latch throw for fire-rated doors. The wear-resistant chassis plates contribute to smoother operation and longevity. With through-bolting for added stability and patented adjustable rose support plates, installation is straightforward, accommodating doors from 1-3/4" to 2" thick. Offering 24 functions, including electrified options, the Yale B-PB5404LN is adaptable to various security needs. It features three non-handed lever designs that comply with ADA requirements for accessibility. With a lifetime warranty on heavy-duty lever return springs, this lockset ensures long-lasting performance and reliability, making it a preferred choice for discerning architects and building owners alike.
Grade 1 Entry Cylindrical Lock, Pacific Beach Lever, SFIC Less Core, Bright Brass Finish, Non-handed
Designed for industrial, commercial and institutional use, the ACCENTRA 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it's the favorite among architects and building owners who demand the highest standard of product quality.
Attributes
Ansi: F82A
Ansi Function: F82A - Entry
Base Material: Brass
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 605/US3
Finish Description: 605/US3
Finish Family: Polished Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 04-Entry/Office
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Pacific Beach
Leverknob Design: PB - Pacific Beach Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Entry
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-1/8"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: ACCENTRA 5400LN Series Grade 1 Cylindrical Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 694
Std Latch Type: Beveled Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
