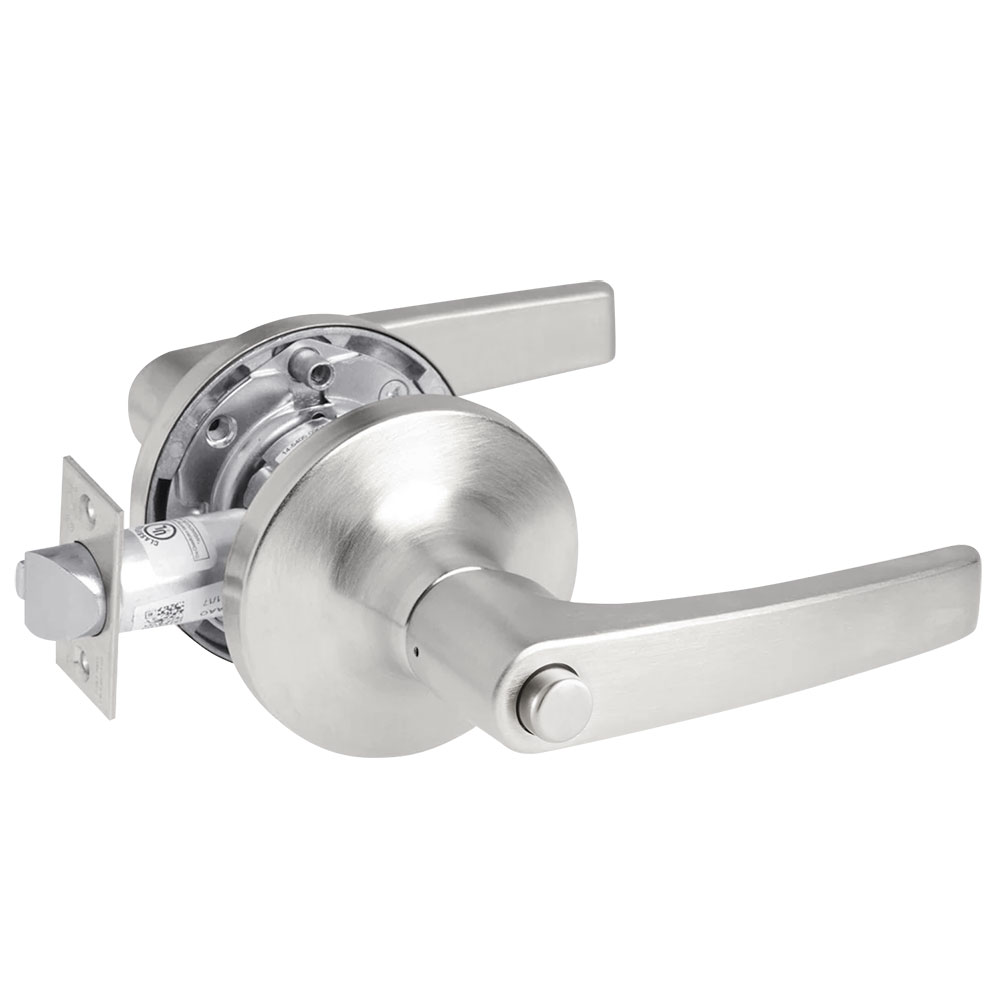

ASSA Abloy Accentra MO5402LN626 Privacy Monroe Lever Grade 1 Cylindrical Lock is designed for high-performance security in commercial and institutional settings. Featuring ANSI/BHMA A156.2 Grade 1 certification, this lockset guarantees durability and reliability for years to come. The UL fire rating of up to 3 hours adds an essential layer of safety, making it ideal for various applications. The lock is adjustable for door thicknesses ranging from 1-3/4" to 2-1/4", ensuring compatibility with most standard doors. It boasts a 2-3/4" backset and a crossbore size of 2-1/8" with 5/8" holes for thru bolts, facilitating easier installation. The Monroe lever design not only enhances functionality but also adds an elegant touch to any door. Crafted from cast zinc with a sleek satin chrome finish (US26D), this lockset is both aesthetically pleasing and resilient against wear. The non-handed functionality allows for versatile installation, while the limited 7-year warranty provides peace of mind. With a 1-1/4" curved lip strike and standard beveled front dimensions of 2-1/4" x 1-1/8", the MO5402LN626 combines style with robust security for demanding environments.
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
Attributes
Ansi: F76A
Ansi Function: F76A - Privacy
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: United States
Crossbore Size: 2-1/8" Bore with 5/8" Holes for Thru Bolts
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Monroe
Dimension: 5-1/4" Lever Length; 3-1/8" Projection; 3-1/2" Rose Diameter
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 626
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Privacy
Function Family: Privacy
Grade: Grade 1
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design: Monroe Lever
Lever Knob Design Name: Monroe
Leverknob Design: MO - Monroe Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Privacy/Bedroom/Bath
Manufacturer Warranty: Limited 7 Year Warranty
Material: Cast Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-1/8"
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 5400LN Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 693
Std Latch Type: Beveled Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: 1-1/4" Curved Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
