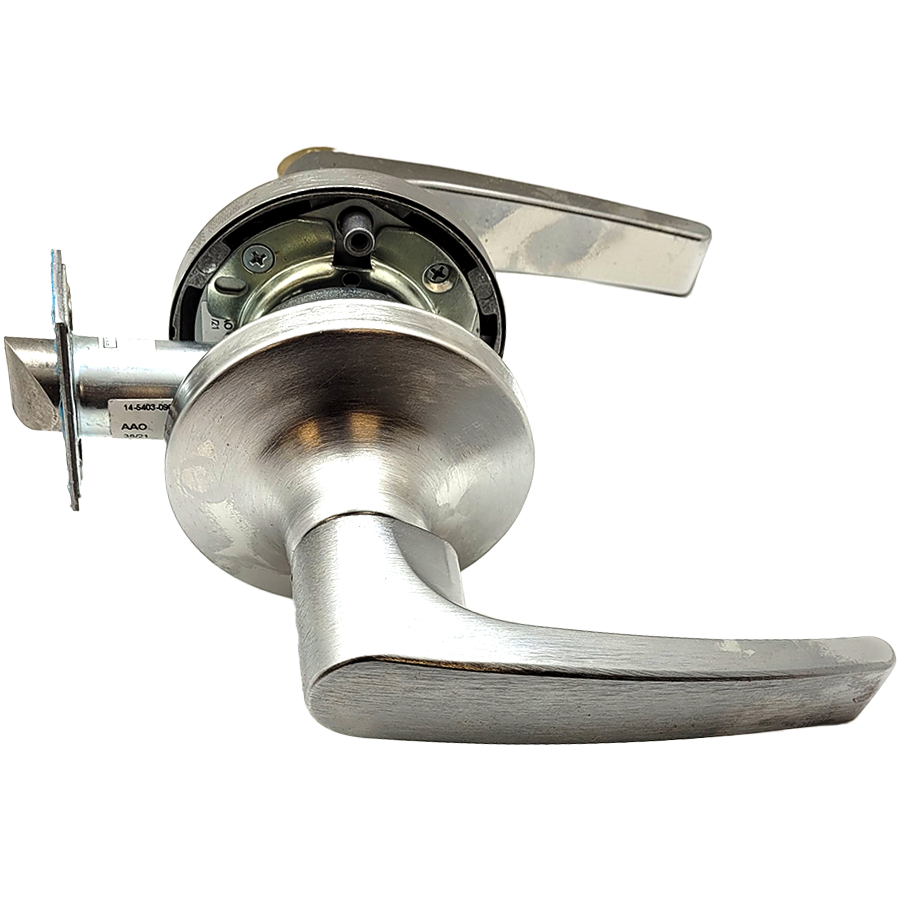

ASSA Abloy Accentra MO5405LN626 Storeroom Monroe Lever Grade 1 Cylindrical Lock offers robust security solutions for commercial and institutional environments. This high-performance lockset is ANSI/BHMA A156.2 Grade 1 certified, ensuring superior durability and reliability. It is UL Fire Rated for up to 3 hours, providing peace of mind in critical situations. Designed for versatility, the MO5405LN626 accommodates door thicknesses ranging from 1-3/4" to 2-1/4", making it suitable for various installations. The non-handed design simplifies installation, while the adjustable 2-3/4" backset further enhances adaptability. With a sleek satin chrome finish (US26D), this lockset combines aesthetic appeal with resilience. The storeroom function ensures secure access control, and the Para keyway offers enhanced protection against unauthorized duplication. The Monroe lever design provides user-friendly operation, while the round rose and beveled front contribute to a polished look. Constructed from cast zinc, this lockset is built to withstand daily use. With a limited 7-year warranty, the ASSA Abloy Accentra MO5405LN626 is a reliable choice for enhancing security in multi-resident facilities, making it a smart investment for any building professional or knowledgeable homeowner.
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
Attributes
Alternate Codes: MO5405LN626
Ansi: F86
Ansi Function: F86 - Storeroom
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: United States
Crossbore Size: 2-1/8" Bore with 5/8" Holes for Thru Bolts
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Monroe
Dimension: 5-1/4" Lever Length; 3-1/8" Projection; 3-1/2" Rose Diameter
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 626
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: Para Keyway
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design: Monroe Lever
Lever Knob Design Name: Monroe
Leverknob Design: MO - Monroe Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Storeroom/Closet
Manufacturer Warranty: Limited 7 Year Warranty
Material: Cast Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 6 Pin
Of Keys: 2
Order_ Qty: 1
Origin: United States
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Pins: 6
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-1/8"
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 5400LN Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 694
Std Latch Type: Beveled Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: 1-1/4" Curved Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
