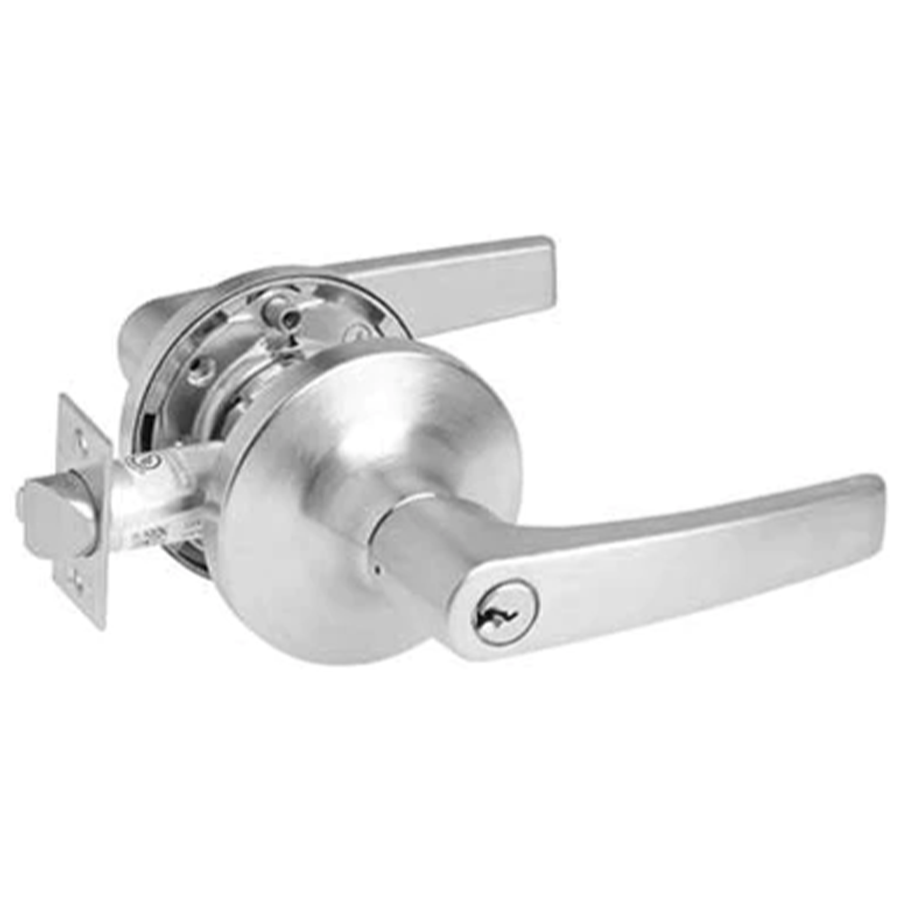

ASSA Abloy Accentra MO5407LN626 Office Entry Monroe Lever Grade 1 Cylindrical Lock offers a robust solution for securing commercial and institutional spaces. Constructed to meet ANSI/BHMA A156.2 Grade 1 specifications, this lockset ensures top-tier durability and reliability. Its UL fire rating provides peace of mind, offering up to 3 hours of protection, making it an ideal choice for safety-conscious environments. Designed for versatility, the lock is adjustable for door thicknesses ranging from 1-3/4" to 2-1/4", accommodating various installations. The non-handed design simplifies the installation process, allowing it to be fitted on either side of the door. Featuring a satin chrome finish (US26D), this lockset not only enhances security but also adds a sleek aesthetic to any office décor. The Monroe lever design, with a 5-1/4" length and a round rose diameter of 3-1/2", provides a stylish yet functional grip. The 2-3/4" backset and 2-1/8" crossbore size ensure compatibility with standard door preparations. Additionally, the Para keyway and 6-pin system enhance the lock’s security features. With a limited 7-year warranty, the ASSA Abloy Accentra MO5407LN626 is a dependable choice for those seeking quality in door hardware.
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
Attributes
Alternate Codes: MO5407LN626
Ansi: F109
Ansi Function: F109 - Entry/Office
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: United States
Crossbore Size: 2-1/8" Bore with 5/8" Holes for Thru Bolts
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Monroe
Dimension: 5-1/4" Lever Length; 3-1/8" Projection; 3-1/2" Rose Diameter
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 626
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Office Entry
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: Para Keyway
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design: Monroe Lever
Lever Knob Design Name: Monroe
Leverknob Design: MO - Monroe Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Entry
Manufacturer Warranty: Limited 7 Year Warranty
Material: Cast Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 6 Pin
Of Keys: 2
Order_ Qty: 1
Origin: United States
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Pins: 6
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-1/8"
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 5400LN Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 694
Std Latch Type: Beveled Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: 1-1/4" Curved Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
