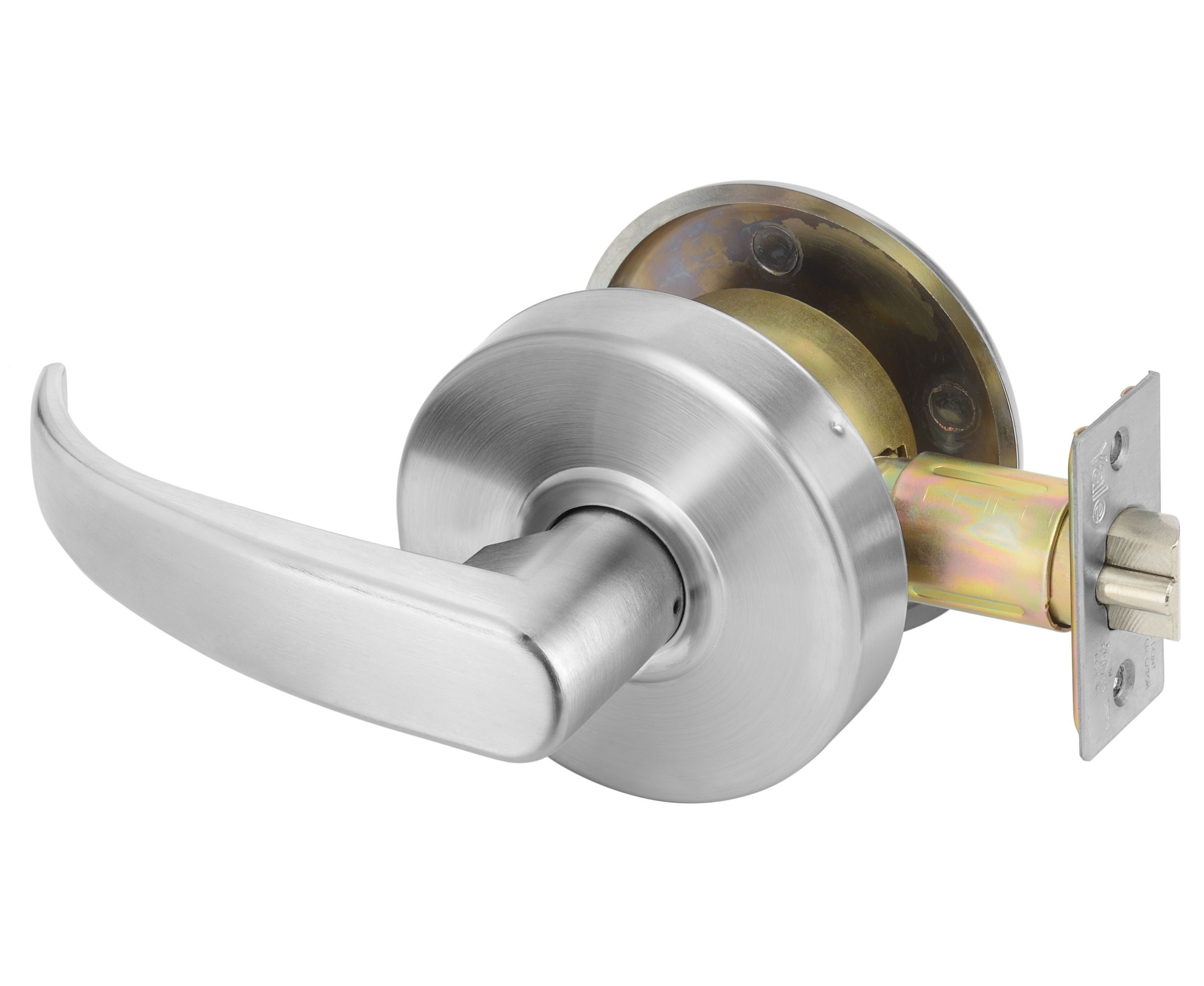

ASSA Abloy Accentra PB4628LN626 Communicating Passage Pacific Beach Lever Grade 2 Cylindrical Lock is designed for high-performance access and security needs in commercial and multi-residential settings. Featuring a sleek satin chrome finish (US26D), this lockset combines durability with an elegant appearance. Engineered to meet ANSI/BHMA A156.2 Grade 2 standards, the PB4628LN626 is UL Fire Rated for up to 3 hours, ensuring reliable safety in emergency situations. Its adjustable design accommodates door thicknesses from 1-3/8" to 1-3/4", while the universal front allows compatibility with both flat and beveled door edges. The non-handed feature simplifies installation, making it versatile for various door configurations. This model includes a MCP234 latch and a 497-114 strike, with a 2-3/4" backset and a crossbore size of 2-1/8" bore, which can be enhanced with optional thru bolts for added security. The Pacific Beach lever design, with a lever length of 4-3/4" and a round rose diameter of 3-3/8", adds a contemporary touch to any entrance. Backed by a limited 3-year warranty, the PB4628LN626 is a reliable choice for professionals seeking quality in door hardware solutions.
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
Attributes
Ansi: F111
Ansi Function: F111 - Exit/Communicating Passage
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: United States
Crossbore Size: 2-1/8" Bore with Optional Thru Bolts
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Pacific Beach
Dimension: 4-3/4" Lever Length; 2-1/2" Projection; 3-3/8" Rose Diameter
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Communicating Passage
Function Family: Communicating
Grade: Grade 2
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 7/8"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Pacific Beach Lever
Lever Knob Design Name: Pacific Beach
Leverknob Design: PB - Pacific Beach Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 3 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Communicating Passage
Manufacturer Warranty: Limited 3 Year Warranty
Material: Cast Zinc
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.515625 in³
Pack Width: 6.75"
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3-3/8" Rose Diameter
Roseescutcheon Dimensions: 3-3/8"
Screws: Wood/Machine Screws
Series: 4600LN Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: MCP234
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: 1-1/4" Curved Lip
Strike Dimension: 1-1/4" x 2-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Ul Listing Type: UL-cUL Fire Rated up to 3 Hours
Unit of Measure: Each
