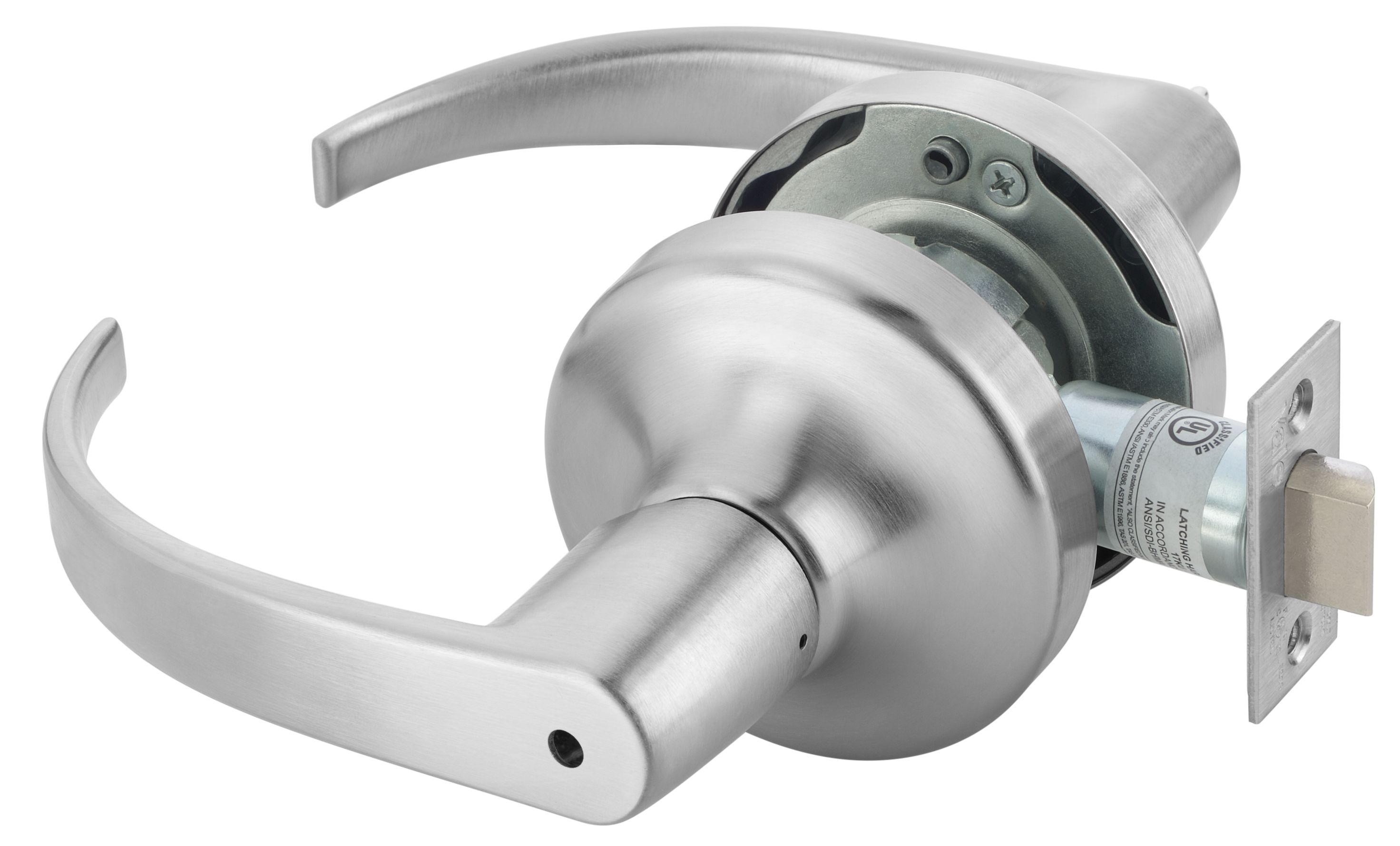

ASSA Abloy Accentra PB4702LN626 Privacy Pacific Beach Lever Grade 1 Cylindrical Lock offers a perfect blend of security and style, ideal for commercial and institutional settings. This robust lockset features a free-wheeling lever mechanism, designed specifically to deter vandalism while delivering smooth operation. Constructed from durable cast zinc, it ensures longevity and resistance to wear, having been certified for strength and durability in line with ANSI/BHMA A156.2, Series 4000 Grade 1 standards. The ADA-compliant lever enhances accessibility, making it convenient for all users. This model is UL/cUL fire-rated for up to 3 hours, providing an additional layer of safety. The satin chrome finish not only adds a modern touch but also resists fingerprints and smudges, ensuring a clean appearance over time. With a versatile backset of 2-3/4" and compatibility with door thicknesses ranging from 1-3/8" to 1-3/4", the PB4702LN626 fits a variety of applications. It features a round rose design and a 1-1/4" curved lip strike, ensuring a secure fit. Backed by a limited 5-year warranty, this lockset is a reliable choice for those seeking quality and functionality in architectural door hardware.
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
Attributes
Ansi: ANSI A156.2, Series 4000, Grade 1
Ansi Function: F76A - Privacy
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 7-1/4"
Box Height Fraction: 3-3/4"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: United States
Crossbore Size: 2-1/8" Bore with Optional Thru Bolts
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Pacific Beach
Dimension: 5-1/2" Lever with 3-5/16" Projection and 3-1/2" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Privacy
Function Family: Privacy
Grade: Grade 1
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Pacific Beach Lever
Lever Knob Design Name: Pacific Beach
Leverknob Design: PB - Pacific Beach Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 5 Years
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Privacy/Bedroom/Bath
Manufacturer Warranty: Limited 5 Year Warranty
Material: Cast Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
PO date: 2024-11-29
Pack Height: 3.75"
Pack Length: 7.25"
Pack Qty: 1
Pack Volume: 183.515625 in³
Pack Width: 6.75"
Product Height: 3.75"
Product Length: 7.25"
Product Width: 6.75"
Projection: 3-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 4700LN Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 693
Std Latch Type: Beveled Spring Latch (Unguarded)
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: 1-1/4" Curved Lip
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Ul Listing Type: UL-cUL Fire-Rated up to 3 Hours
Unit of Measure: Each
