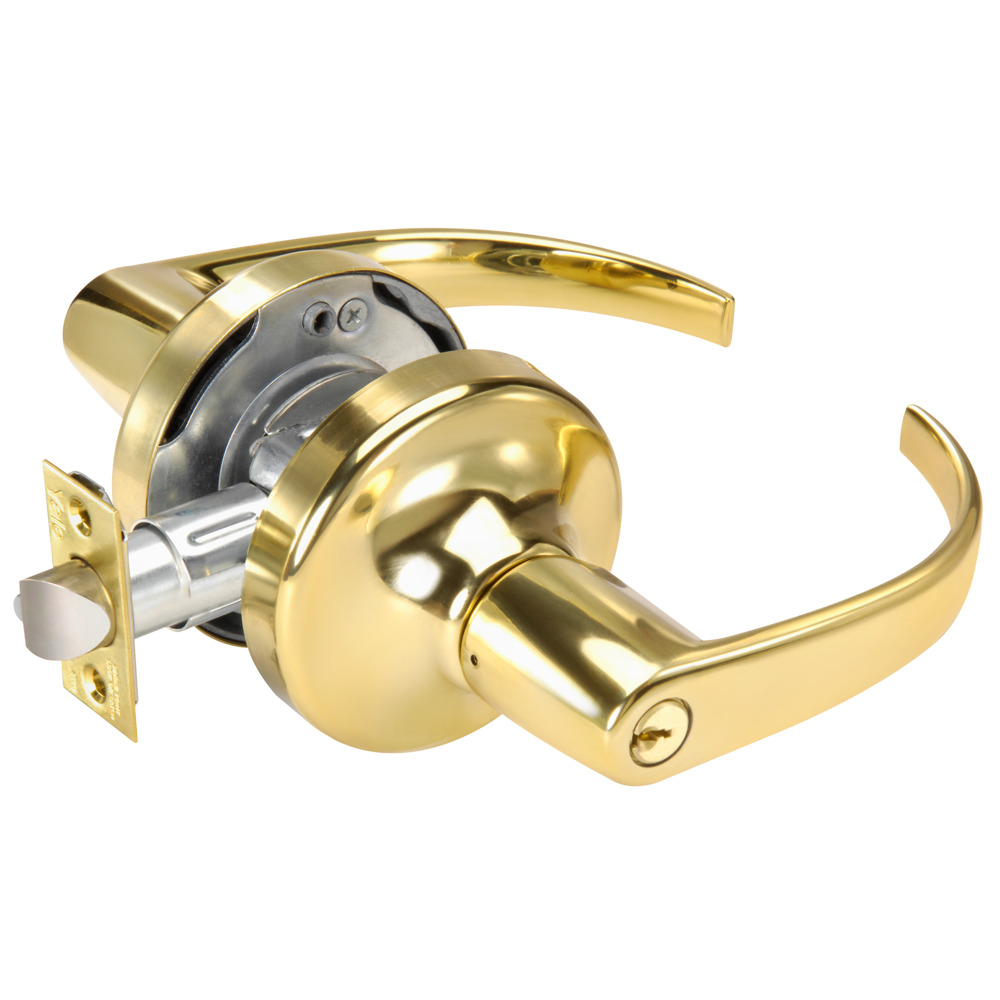

Yale PB5306LN 605 Grade 2 Service Station Lock offers a blend of security and style, making it an ideal choice for commercial applications. This Grade 2 cylindrical lockset features the elegant Pacific Beach lever design and a bright brass finish that complements any decor. Its non-handed configuration ensures easy installation on various door styles. One of the standout features is the vandal-resistant Free Wheeling lever mechanism, providing enhanced durability against misuse. The through-bolting design offers a secure fit, minimizing shaking and rattling, which is particularly beneficial for high-traffic areas. With adjustable door thickness ranging from 1-3/4 inches to 2 inches, and special orders for thinner or thicker doors, this lockset is versatile for different installations. The Yale PB5306LN supports a wide range of keying options, including standard, interchangeable core, and Security cylinders, ensuring customization for various security needs. With 19 mechanical functions and a lifetime warranty against lever sag and spring breakage, this lockset promises reliability and peace of mind. Designed to meet ANSI/BHMA standards, the Yale PB5306LN is UL listed and fire-rated for up to 3 hours, making it a solid choice for service station doors and other commercial settings. Choose this lock for a robust, stylish, and dependable security solution.
Grade 2 Service Station Cylindrical Lock, Pacific Beach Lever, Conventional Cylinder, Bright Brass Finish, Non-handed
This revolutionary Grade 2 lockset boasts design features such as a vandal resistant Free Wheeling lever mechanism and adjustable door thickness that makes installation a breeze. Through bolting gives the 5300LN a secure fit that resists shaking and rattling. With three lever designs and twelve different finishes, you have the ability to match any decor.
Attributes
Ansi: F92
Ansi Function: F92 - Service Station Door Lock
Base Material: Brass
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 3-3/4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 605/US3
Finish Description: 605/US3
Finish Family: Polished Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 06-Service Station
Function Family: Service Station
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 7/8"
Lever Knob: Lever
Lever Knob Design Name: Pacific Beach
Leverknob Design: PB - Pacific Beach Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Service Station
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Of Keys: 2
Origin: United States
Pack Height: 3.75"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 281.25 in³
Pack Width: 7.5"
Pins: 6
Product Height: 3.75"
Product Length: 10"
Product Width: 7.5"
Projection: 3-1/2"
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: ACCENTRA 5300LN Series Grade 2 Cylindrical Lever Locks
Ship Weight: 4.8 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 380AN
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
