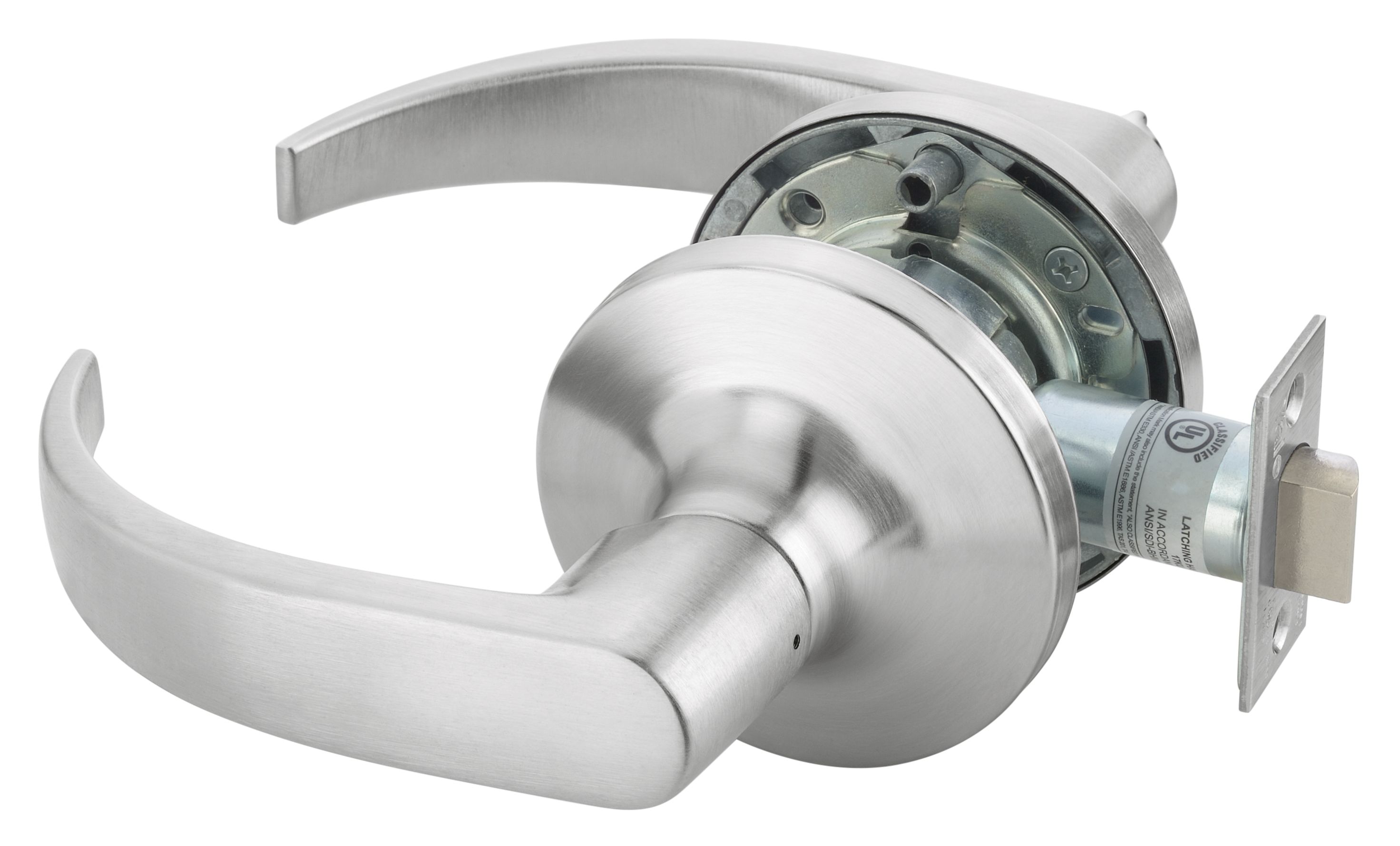

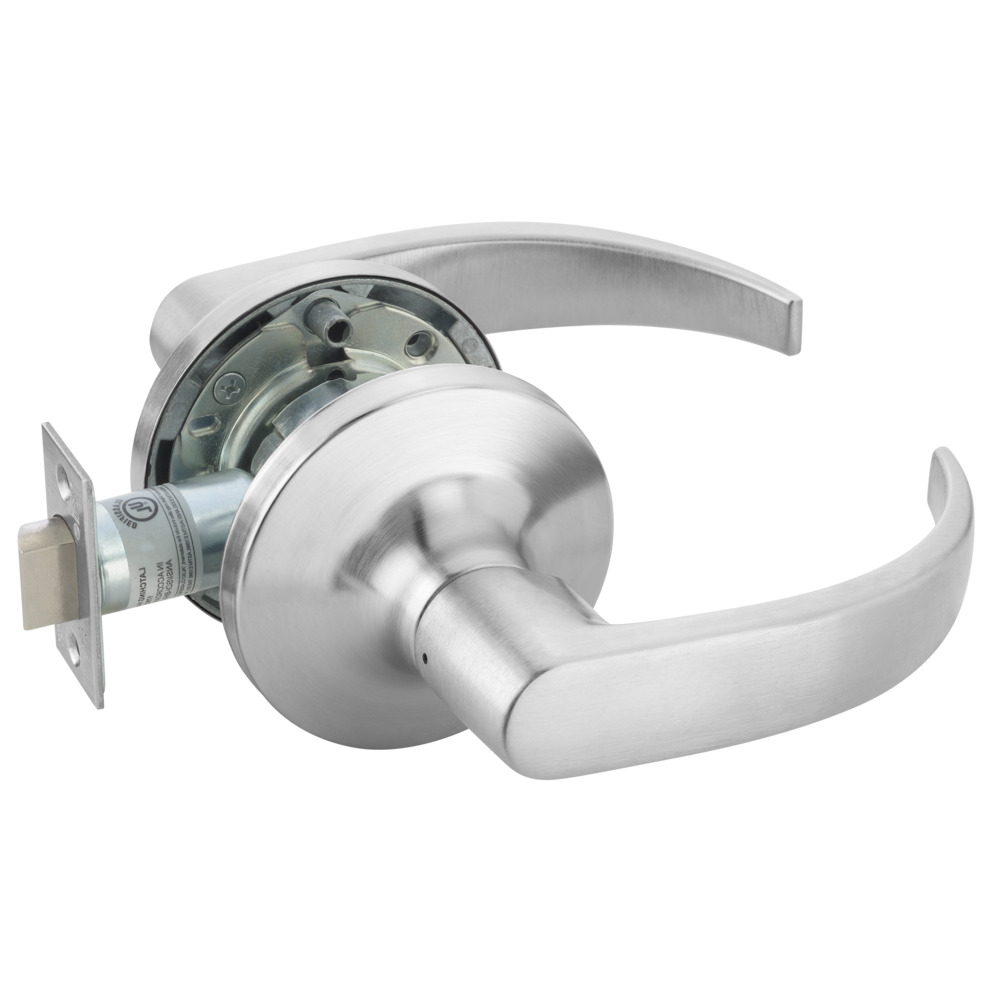

ASSA Abloy Accentra PB5401LN626 Passage Pacific Beach Lever Grade 1 Cylindrical Lock offers a perfect blend of style, security, and functionality for commercial and institutional settings. Designed to meet ANSI/BHMA A156.2 Grade 1 standards, this robust lockset ensures high-performance security while maintaining an elegant satin chrome finish. This non-handed lock features an adjustable design accommodating door thicknesses from 1-3/4" to 2-1/4", making it versatile for various applications. With a UL fire rating of up to 3 hours, it provides peace of mind in safety and compliance. The Pacific Beach lever design not only enhances aesthetics but also offers ease of use, while its durable cast zinc construction ensures longevity. The PB5401LN626 is equipped with a 2-3/4" backset and features a 2-1/8" crossbore size with 5/8" holes for thru bolts, ensuring a secure fit. The standard beveled front measures 2-1/4" x 1-1/8", and the package includes an ANSI strike measuring 1-1/4" x 4-7/8". Backed by a limited 7-year warranty, this lockset is a reliable choice for those seeking premium door hardware solutions.
ASSA ABLOY ACCENTRA provides a comprehensive range of high-performance door hardware and streamlined digital access control solutions for commercial, institutional, and multi-resident facilities
Attributes
Ansi: F75
Ansi Function: F75 - Passage
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4"
Box Width Fraction: 7-1/2"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: United States
Crossbore Size: 2-1/8" Bore with 5/8" Holes for Thru Bolts
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Pacific Beach
Dimension: 5-7/16" Lever Length; 3-1/8" Projection; 3-1/2" Rose Diameter
Door Range: 1-3/4" to 2-1/4"
Door Thickness: 1-3/4" to 2-1/4""
Finish: Satin Chrome
Finish Code: 626
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Passage
Function Family: Passage
Grade: Grade 1
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Pacific Beach Lever
Lever Knob Design Name: Pacific Beach
Leverknob Design: PB - Pacific Beach Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Passage/Closet Latch
Manufacturer Warranty: Limited 7 Year Warranty
Material: Cast Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
PO date: 2024-11-01
Pack Height: 4"
Pack Length: 10"
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5"
Product Height: 4"
Product Length: 10"
Product Width: 7.5"
Projection: 3-1/8"
Rose Escutcheon: Rose
Rose Escutcheon Design: Round Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 5400LN Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 693
Std Latch Type: Beveled Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL-cUL Fire-Rated up to 3 Hours
Unit of Measure: Each
